Chapter 4 Display and Operation|ASDA-B Series
Revision February 2008, Doc. Name: 2006PDD23000009 4-11
4.1.4 Fault Code Display Operation
After entering the parameter mode P4-00 to P4-04 (Fault Record), press SET key to display the
corresponding fault code history for the parameter or press UP arrow key to display the fault code of
ASH1 to ASH5 in order. ASH1 indicates the most recent occurred fault code, ASH2 is the previous
occurred fault code before ASH1 and so on.

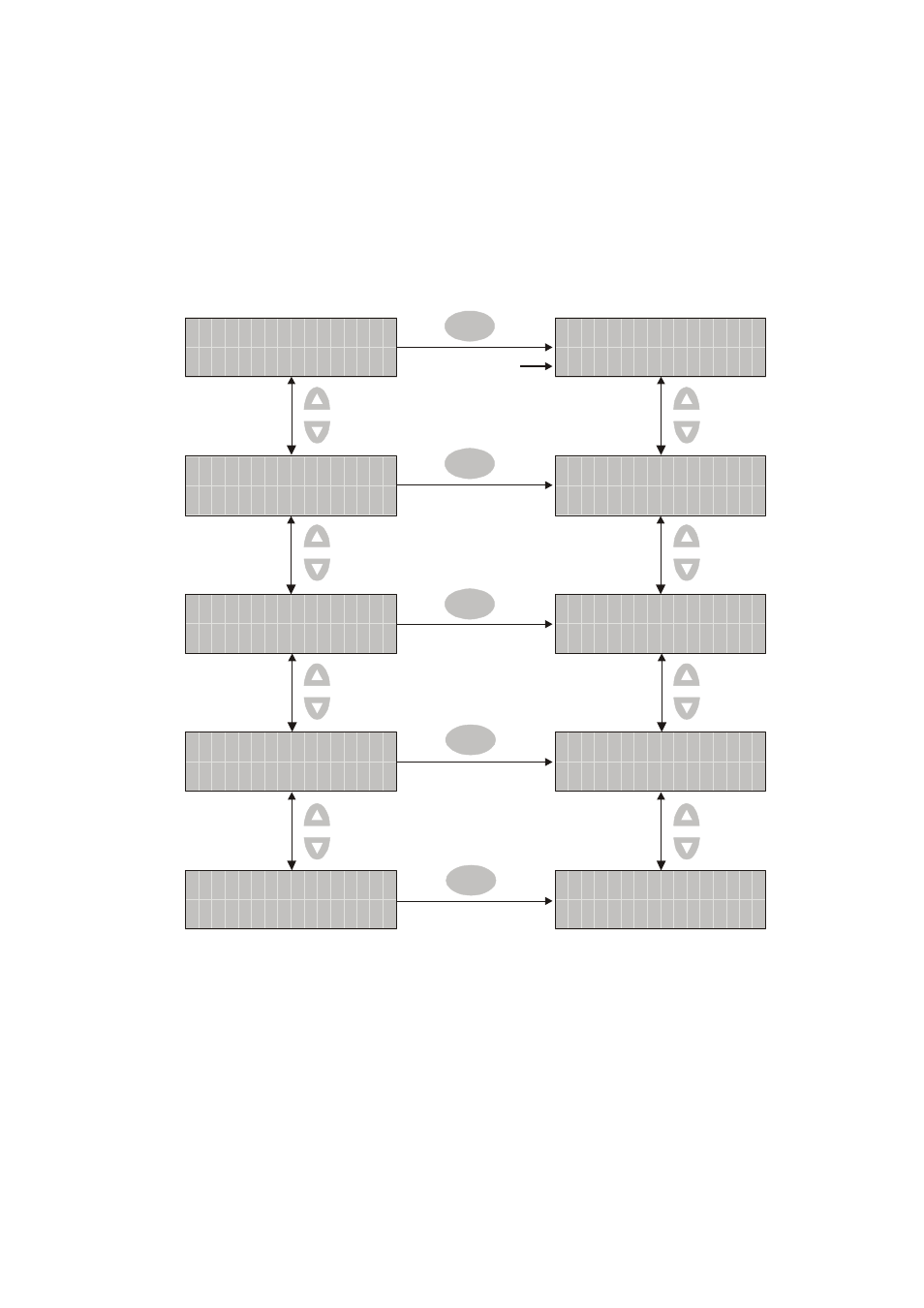

Figure 4.8
S A P : 0 4 - 0 H 1
0
S A P : 0 4 - 1 H 2
0
S A P : 0 4 - 2 H 3
0
S A P : 0 4 - 3 H 4
0
S A P : 0 4 - 4 H 5
0
S A P : 0 4 - 0 H 1
0
S A P : 0 4 - 1 H 2
0
S A P : 0 4 - 2 H 3
0
S A P : 0 4 - 3 H 4
0
S A P : 0 4 - 4 H 5
0
Fault Code History Current Display Fault Code History
Status Display
SET
SET
SET
SET
SET
