Chapter 11 Specifications|ASDA-B Series
11-16 Revision February 2008, Doc. Name: 2006PDD23000009

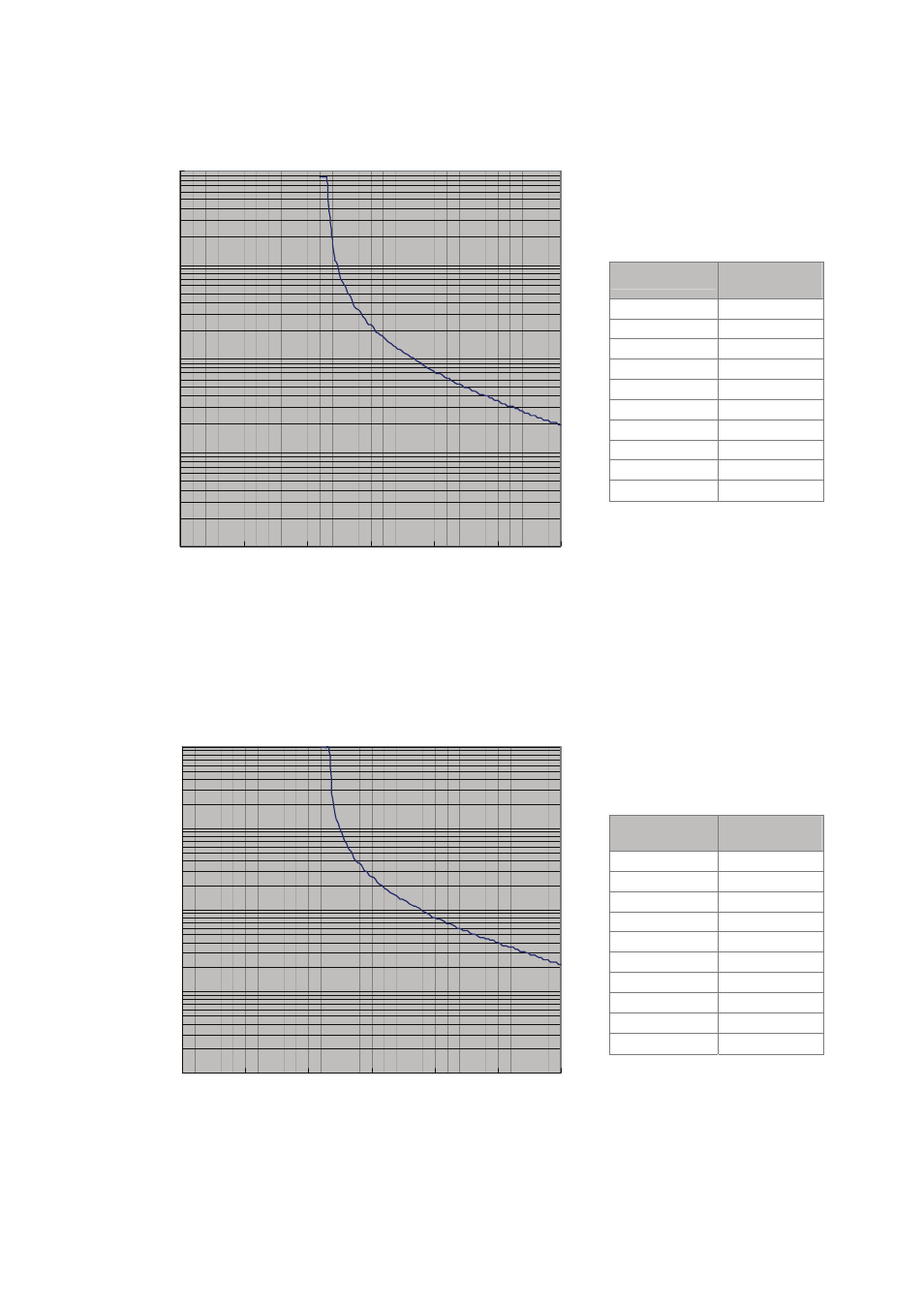

„ Chart of load and operating time (ECMAC31306 S)
0.1
1
10
100
1000
0 50 100 150 200 250 300
Load (% rated torque)
O
per
at
in
g T
im
e (
sec
on
ds
)
Load
Operating
Time
120% 167.2s
140% 33.1s
160% 17.1s
180% 10.8s
200% 7.2s
220% 5.4s
240% 4.0s
260% 3.1s
280% 2.5s
300% 1.9s
„ Chart of load and operating time (ECMAC31309 S)
0.1
1
10
100
1000
0 50 100 150 200 250 300
Load (% rated torque)
O
pe
rat
in
g T
im
e (s
ec
on
ds
)
Load
Operating
Time
120% 185.8s
140% 36.8s
160% 19.0s
180% 12.0s
200% 8.0s
220% 6.0s
240% 4.4s
260% 3.4s
280% 2.8s
300% 2.2s
