Page 30
Chapter 3 Connections and Wiring|ASDA-B Series
Revision February 2008, Doc. Name: 2006PDD23000009
3-5

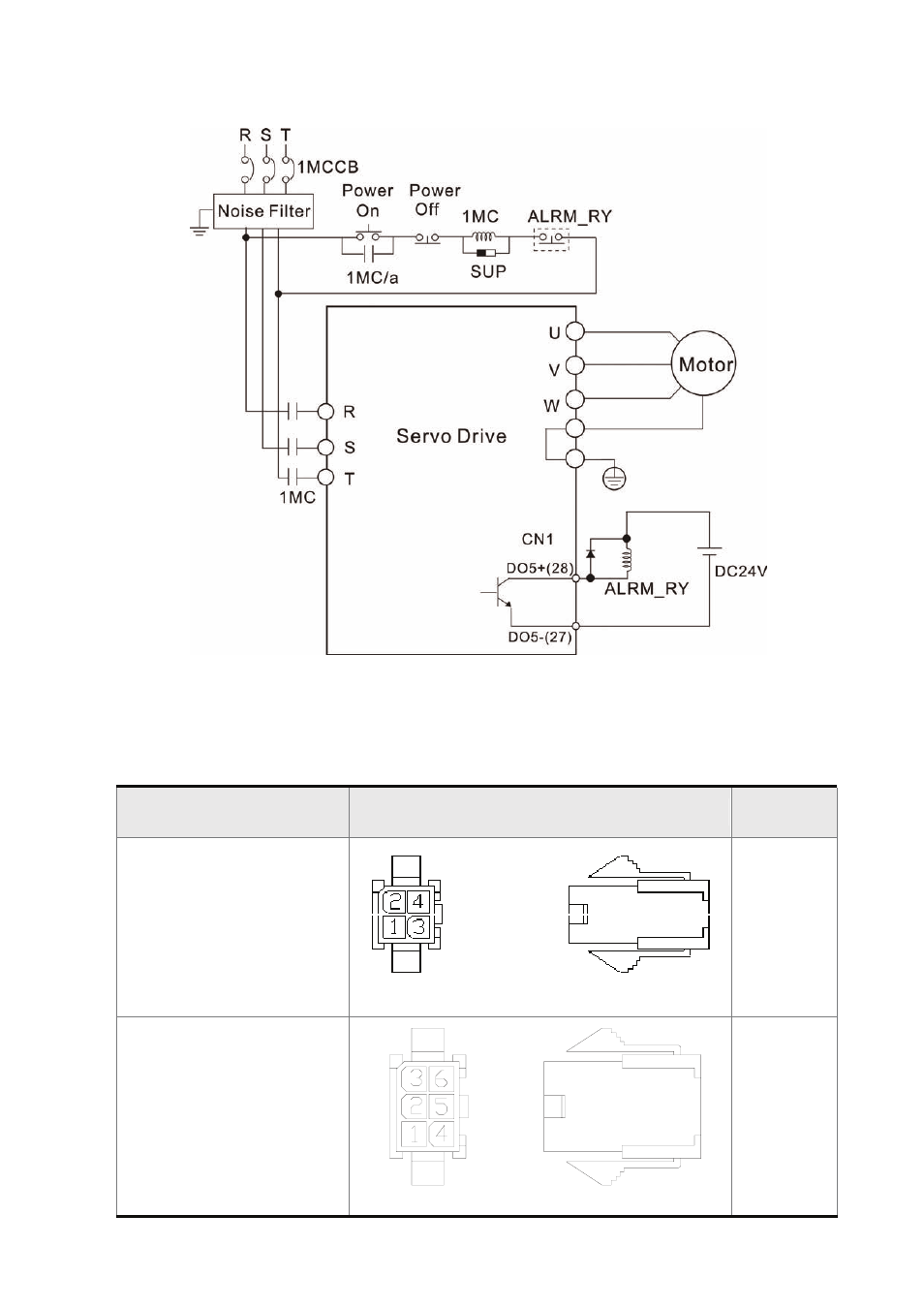

Figure 3.3 Three-Phase Power Supply Connection
3.1.4 Motor Power Cable Connector Specifications
The boxes ( ) in the model names are for optional configurations. (Please refer to section 1.2 for model
explanation.)
Motor Model Name
U, V, W / Electromagnetic Brake Connector
Terminal
Identification
ECMA-C30401
S (100W)
ECMA-C30602
S (200W)
ECMA-C30604
S (400W)
ECMA-C30804
7 (400W)
ECMA-C30807
S (750W)
HOUSING: JOWLE (C4201H00-2*2PA)
A
ECMA-C30602
S (200W)
ECMA-C30604
S (400W)
ECMA-C30804
7 (400W)
ECMA-C30807
S (750W)
HOUSING: JOWLE (C4201H00-2*3PA)
B
