RCS20 M:N Redundancy Switch Revision 15
User Interfaces MN-RCS20 and CD-RCS20
4–37

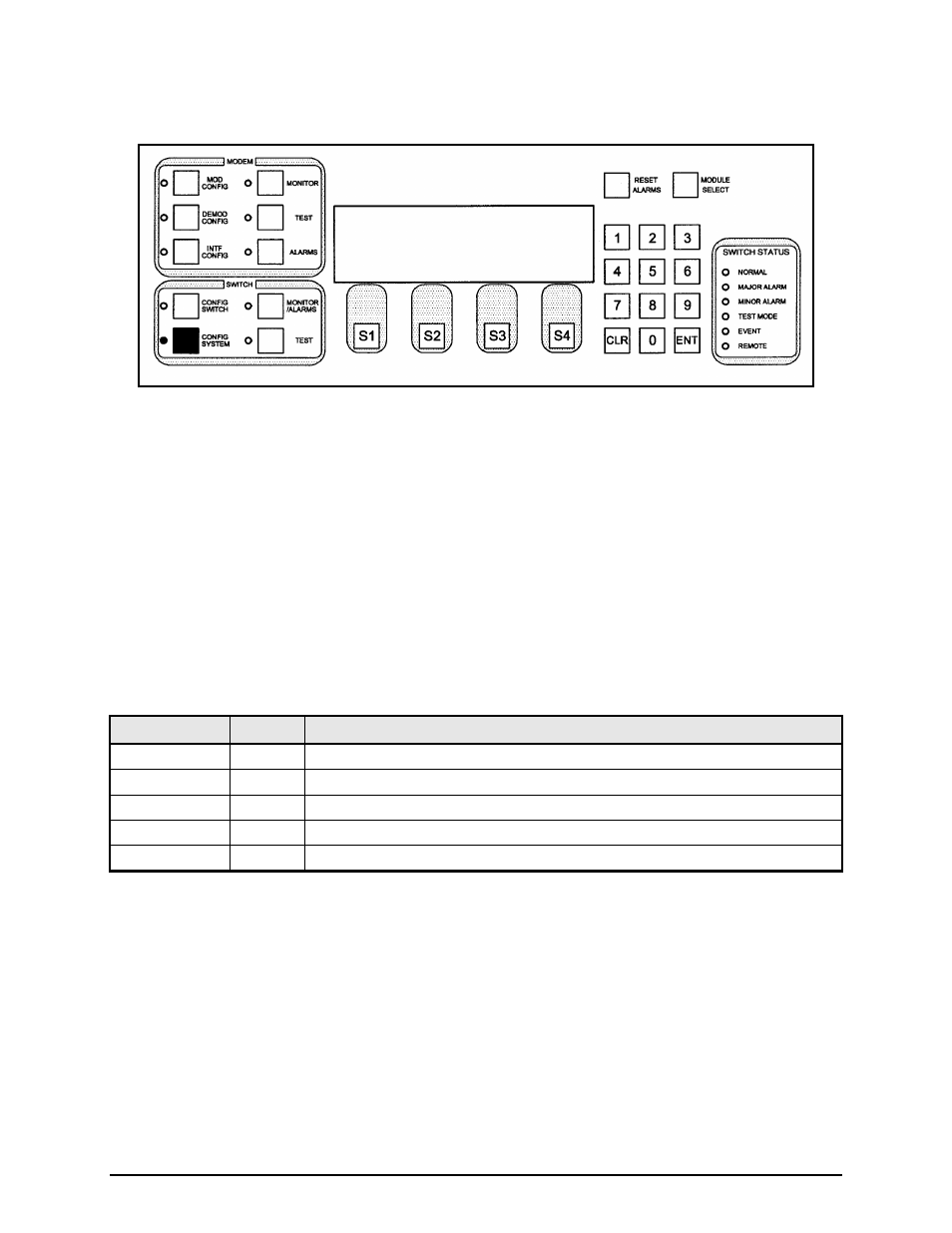

4.3.2.8 REMOTE PORT PROTOCOL CONFIGURATION
This subscreen allows the user to modify the modem remote port communication protocol. The remote
port protocol determines the binary format for communication between the RCU20 and all modems
connected to the RCU20. Communication between the RCU20 and modems occurs over a RS-485
connection found on the Bank Control Expansion Card found at the rear of the RCU20. RLLP protocol is
used by the following Radyne Products: DMD15, DMD2401, DVB3000 and DVB3030. 2400 protocol is
used by the DMD2400 only.
4.3.2.8.1 Programming steps:
1. Press or <2400> to select the desired modem remote port communication protocol. The
switch parameter table will be updated immediately.
2. Press or to abort programming (no switch parameters changed)
Key Label Function
S1 RLLP Press to select Standard RLLP format.
S2 2400 Press to select Binary Protocol for use with DMD2400s
S3 --- N/A
S4 RETURN Press to cycle back to the REMOTE PORT CONFIGURATION Screen
Numeric Keypad --- Press or to abort programming (no switch parameters changed)
MODEM PORT PROTOCOL CONFIGURATION
MODEM MODEM PORT PROTOCOL : 9600
BAUD NEXT
