RCS20 M:N Redundancy Switch

Revision 15

Electrical Interfaces

MN-RCS20 and CD-RCS20

5–11

5.3.1.1.1 Configuring Data Switch Module DIP Switches

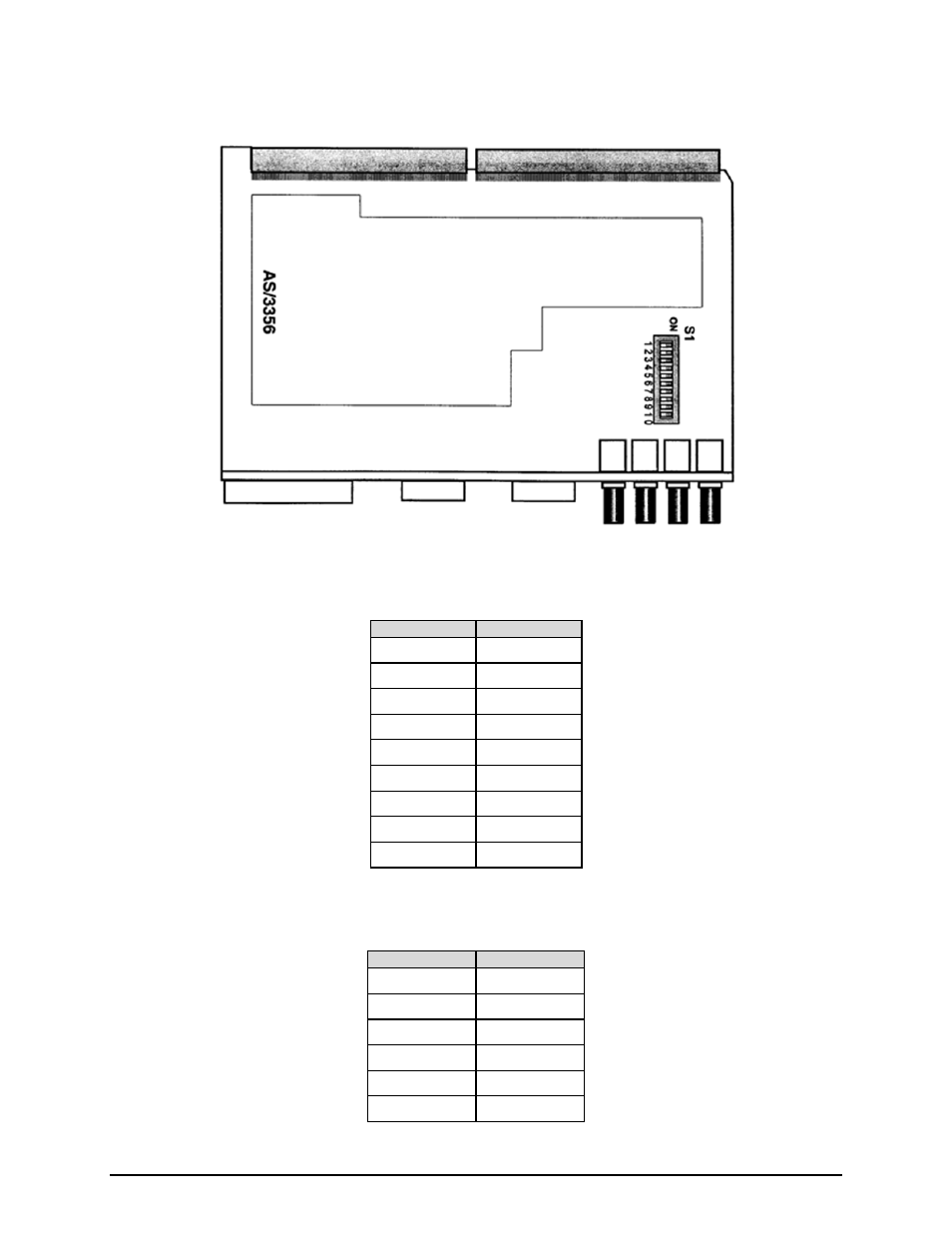

Figure 5-9 AS/3356 Data Switch Module

Table 5-1. AS/3356 G.703 Unbalanced DIP Switch Settings

Pin

Setting

1

ON

2

ON

3

ON

4

ON

5

ON

6

ON

7

ON

8

ON

9

ON

Table 5-2 AS/3356 G.703 Balanced DIP Switch Settings

Pin

Setting

1

ON

2

ON

3

OFF

4

OFF

5

OFF

6

OFF
