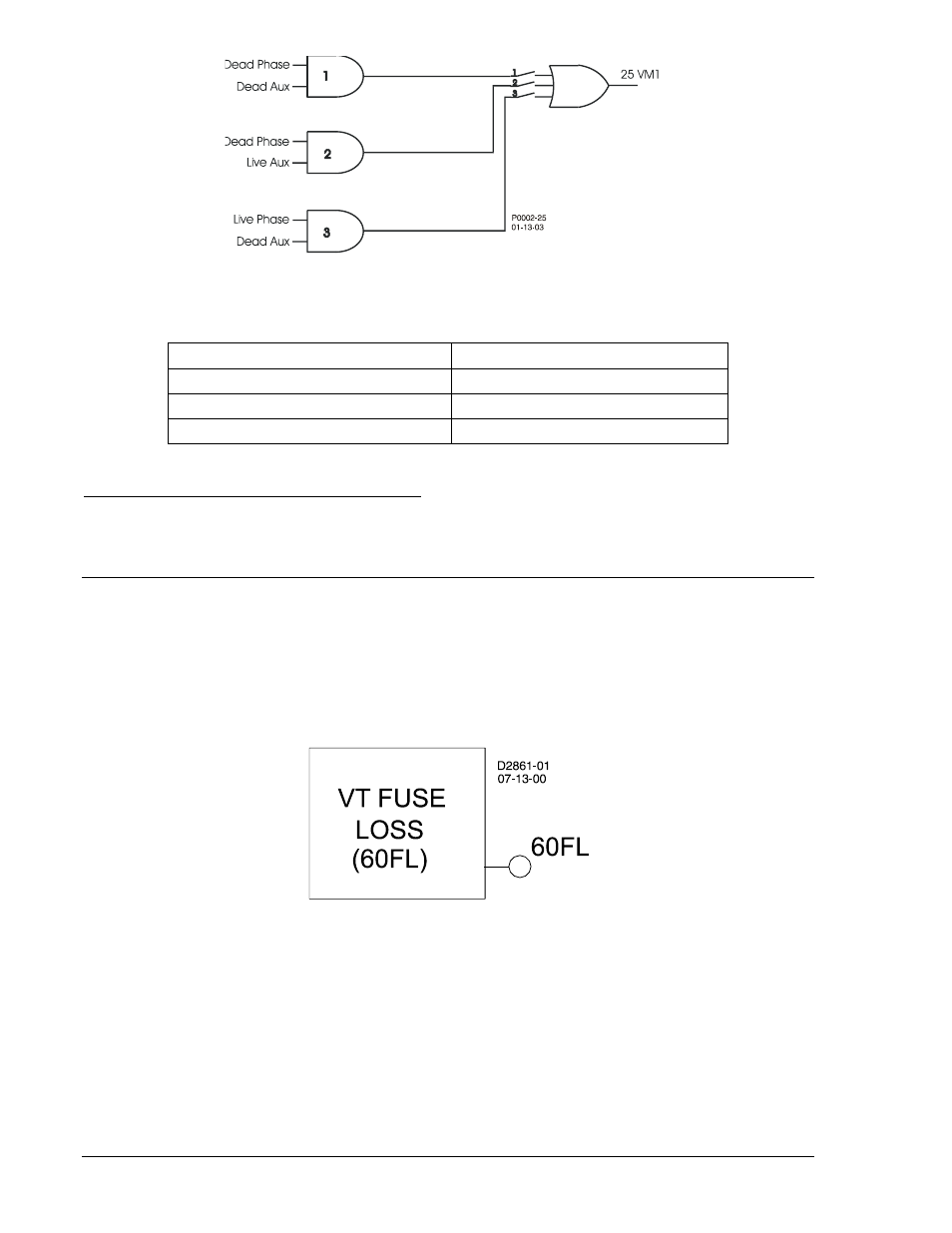

Figure 4-58. 25VM Logic
Table 4-35. Logic Settings for Voltage Monitor
Voltage Monitor Logic Condition Logic Setting
Dead Phase and Dead Aux 1
Dead Phase and Live Aux 2
Live Phase and Dead Aux 3
Retrieving Voltage Monitor Status from the Relay
The status of each logic variable can be determined through the ASCII command interface using the RG-
STAT (report general-status) command. See Section 6, Reporting and Alarm Functions, General Status
Reporting, for more information. The status can also be determined using BESTCOMS Metering screen.
VOLTAGE TRANSFORMER FUSE LOSS DETECTION (BE1-700V)
60FL - Fuse Loss Detection
BE1-700 relays have one 60FL element that can be used to detect fuse loss or loss of potential in a
three-phase system. The 60FL element is illustrated in Figure 4-59. When the element logic becomes
TRUE, the 60FL logic output becomes TRUE. A logic diagram is shown in Figure 4-60. Logic parameters
are shown in Table 4-36.
Figure 4-59. Fuse Loss Detection Logic Block
Trip Logic: 60FL Trip = (A * C * G) (See Table 4-36.)
Reset Logic: 60FL Reset = H * /K (See Table 4-36.)
