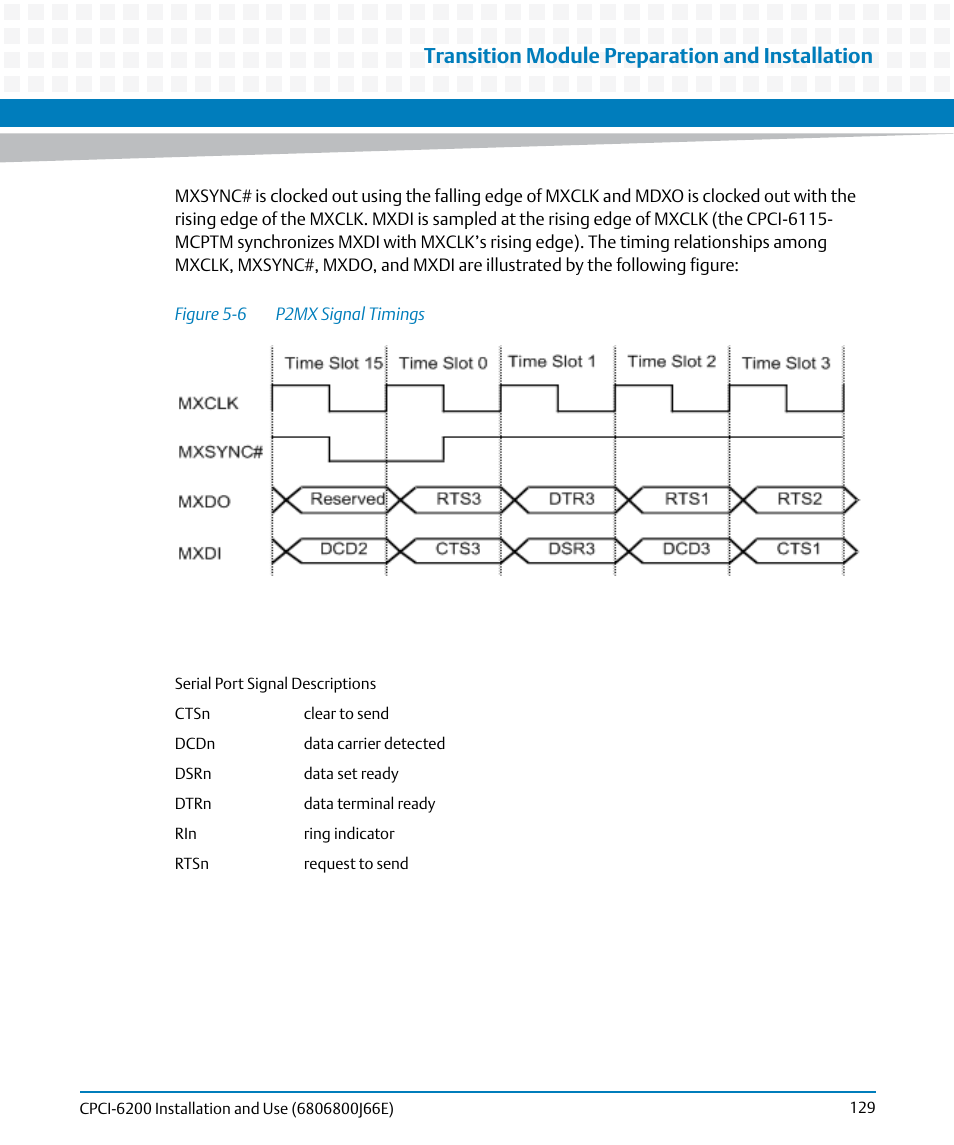

Figure 5-6, P2mx signal timings, Transition module preparation and installation – Artesyn CPCI-6200 Installation and Use (May 2015) User Manual
Page 129
