Chapter 2 Editor
2-43
1 2
Entering coils
Edit ➔ Symbol Input ➔ Coil Input (F7)
➔ b (N.C.) Contact Coil Input (Shift +F7)
To enter a coil, perform the following procedure.
1. Place the cursor in the input line.
2. Select "Symbol Input" from the "Edit" menu, and select the coil type to be entered
from the submenu.
The corresponding function key can be pressed instead or the corresponding
icon can be clicked.

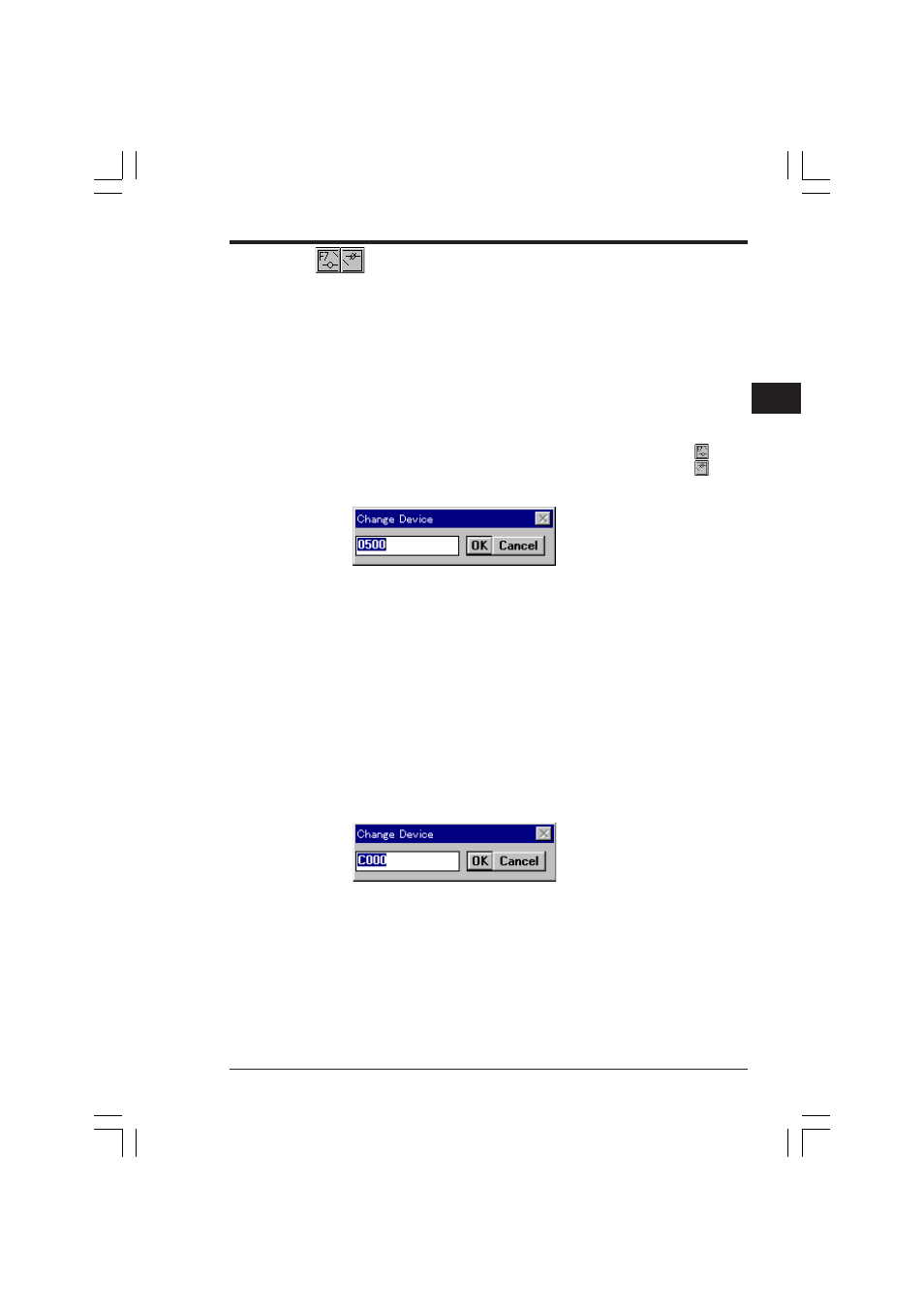

• The "Change Device" dialog box is displayed.
When entering a coil : Coil Input F7 key button
When entering the b contact coil : Coil Input Shift + F7 keys button
3. Enter a device name directly from the keyboard into the text box.
4. When input is complete, click the [OK] button.
When the [Cancel] button is clicked, the setting entered is canceled and the
dialog box is closed.
5 The ladder symbol is entered.
2.4.4 Changing the device at the current cursor position
Edit ➔ Change Device at Cursor Position (Esc) ★ Right-click
To change the device at the current cursor position, perform the following procedure.
1. Place the cursor in the device to be changed.
2. Select "Change Device at Current Position" from the "Edit" menu or right-click
menu or press the Esc key.
The "Change Device" dialog box is displayed.
3. Enter a device name directly from the keyboard into the text box.
4. When input is complete, click the [OK] button.
When the [Cancel] button is clicked, the setting entered is canceled and the
dialog box is closed.
5. The device is changed.
