Chapter 3 Simulator
2-86
3
3.2 Starting up and Exiting from the Simulator
This section describes the simulator startup method, screen layout, simulator func-
tions, etc.
3.2.1 Operating procedure for startup and exit
Startup procedure
File ➔ Simulator (Ctrl + F2)
The simulator can be started up by opening a ladder program created using the
editor.
Perform the following procedure in the editor.
1. In the editor, set the window of the ladder program to be simulated as the current
window.
2. Select "Simulator" from the "File" menu.

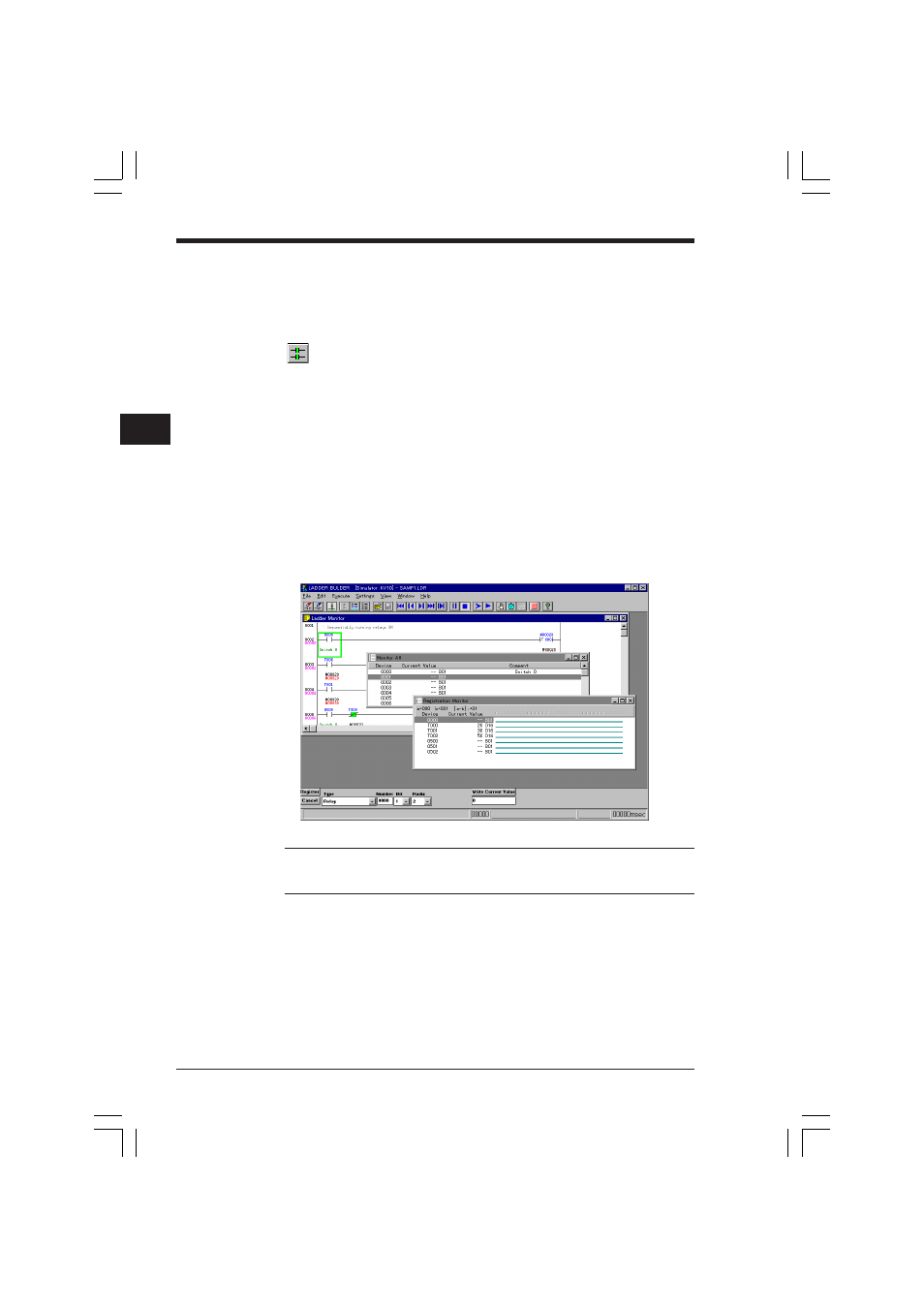

• Simulator mode is selected, and the ladder monitor window is displayed in the
same way as in editor mode.
• When the same ladder program was previously simulated, the window is dis-
played the same way it was when it was last simulated.
Note: Simulation is disabled when a compile error is present.
Repair the error so that compile can be performed correctly, and then run the simu-
lation again.
