Chapter 1 Introduction
2-19
1 1

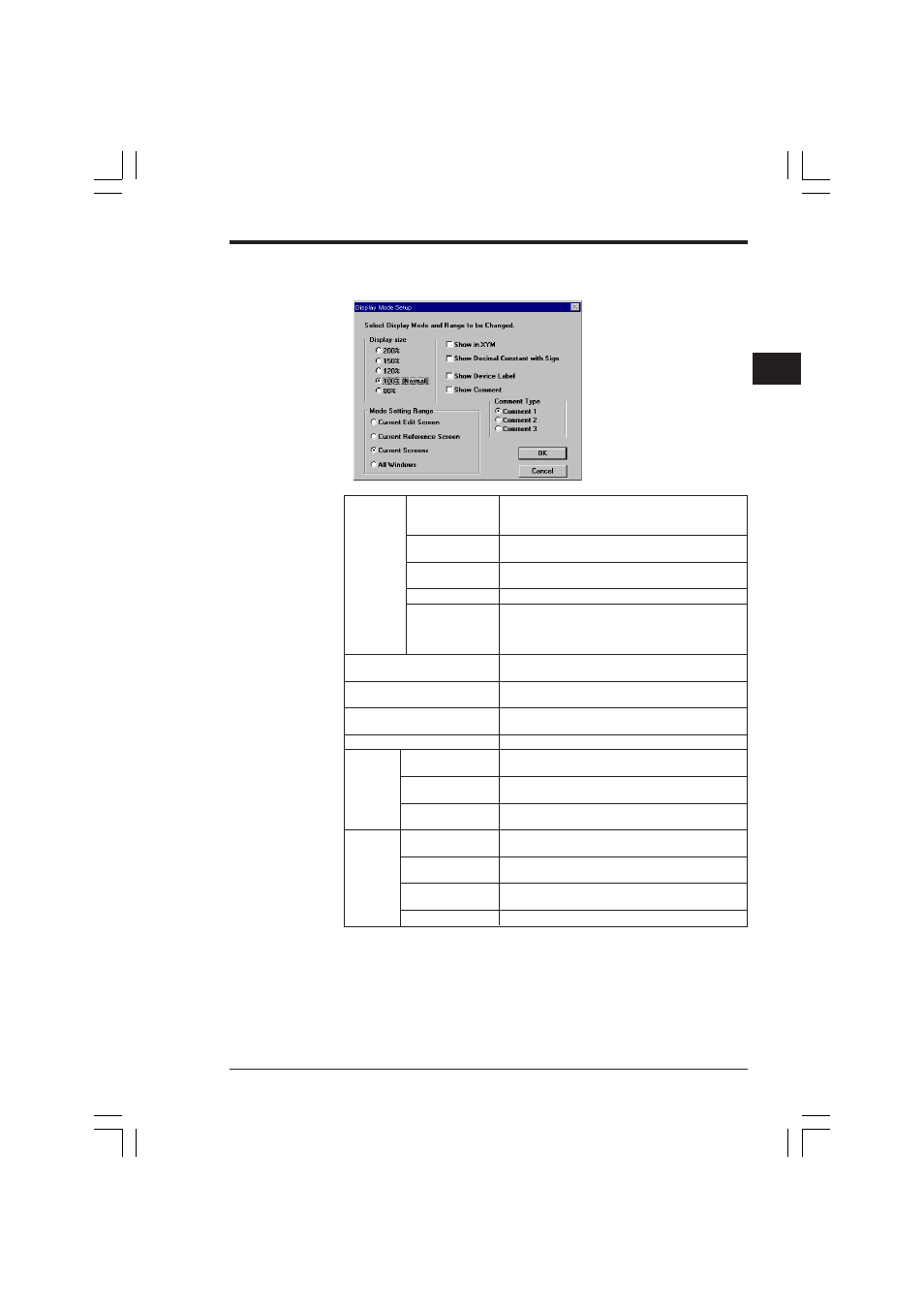

2. Set each item, and click the [OK] button.
To cancel the changes you made and close the dialog box, click the [CANCEL]
button.
* The current window refers to the currently selected active window.
* Line comments cannot be transferred.
200% Displays a ladder diagram at twice the standard size.
This size is useful when characters are small and
difficult to read.
150% Displays a ladder diagram at 1.5 times the standard
size.
120% Displays a ladder diagram at 1.2 times the standard
size.
100% (Normal) Displays a ladder diagram in the standard size.
80% Displays a ladder diagram in the smallest size. This
size is useful when checking the entire operation
because the maximum number of cells can be dis
played on the screen.
Show in XYM Displays device names in the ladder diagram using
"X", "Y" and "M".
Show Decimal Constant Displays decimal constants with sign in the ladder
with Sign diagram.
Show Device Label Displays the label name of each device in the ladder
diagram.
Show Comment Displays comments in the ladder diagram.
Comment Comment 1 Displays comment 1 [which is completely shared with
type the KV IncrediWare (DOS)]
Comment 2 Displays comment 2 (which cannot be transferred to
the PLC)
Comment 3 Displays comment 3 (which cannot be transferred to
the PLC)
Current Edit Reflects the setting on the edit screen
Screen (current window).
Current Reference Reflects the setting on the reference screen
Screen (current window).
Current Screens Reflects the setting on both the edit screen and the
reference screen (both current windows).
All Windows Reflects the setting on all the windows.
Display
Size
Mode
Setting
Range
