Chapter 2 Editor
2-77
1 2
2.13 Printing Functions
This section describes how to print out ladder diagrams, mnemonic lists, labels/
comments/references, device use status, and parameters.
2.13.1 Printing
File ➔ Print (Ctrl + P)
Connect the personal computer to a printer before starting the printout.
The contents to be printed out must be set before starting the printout.
1. Select "Print" from the "File" menu, or click the button.

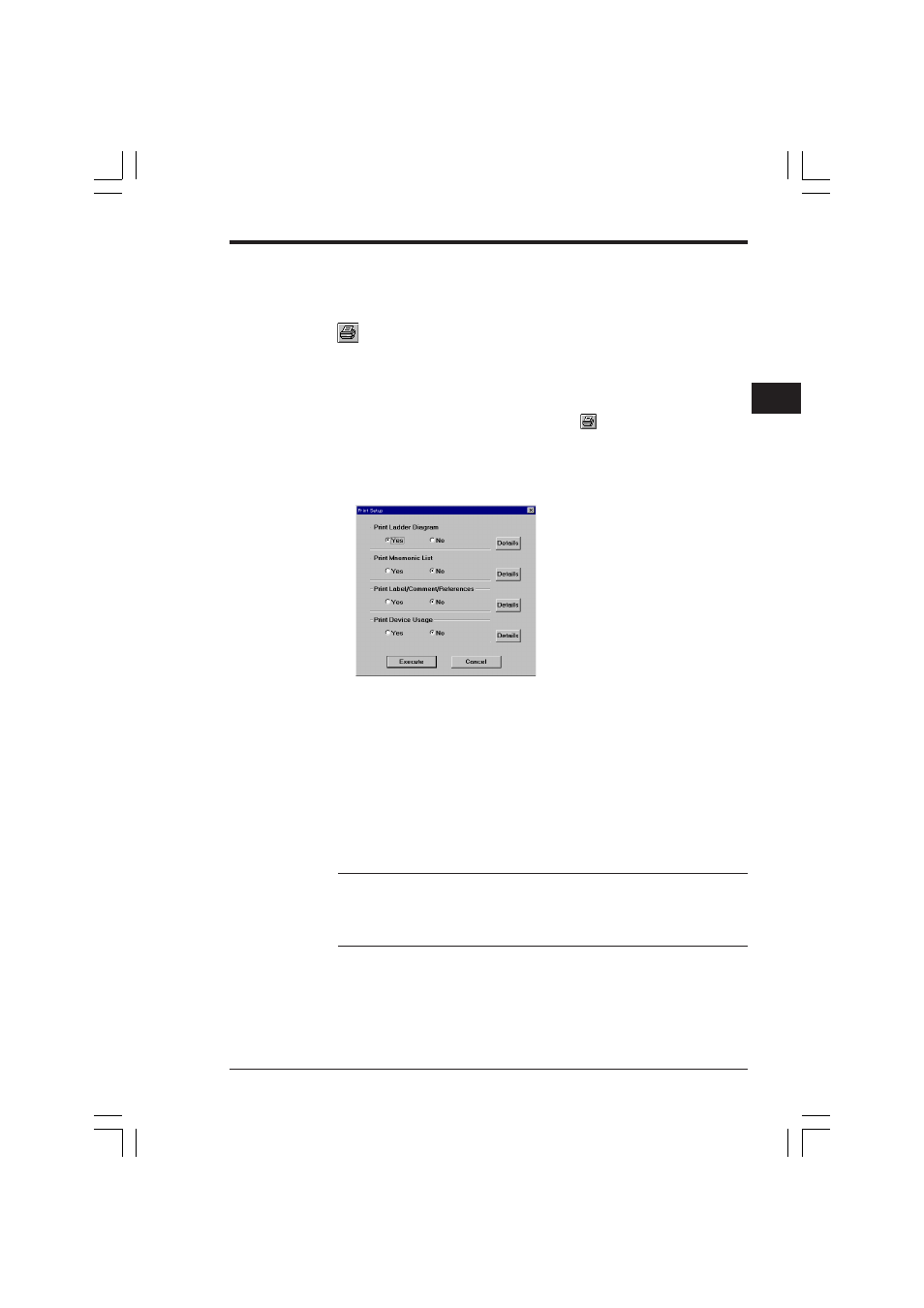

The "Print Setup" dialog box is displayed.
2. You can select whether or not each item is printed. Click "Yes" to print the item,
and click "No" not to print the item.
"Yes" is selected only for ladder diagrams by default.
The following four items can be printed out.
•
Ladder diagrams
• Mnemonic lists
• Labels/comments/references
• Device use status
3. The printout range can be set for each item. Set the range in the dialog box
displayed when the [Detail] button is clicked.
➮ For the setup procedure for each item, refer to page 2-78.
4. Click the [OK] button to start printing.
Click the [Cancel] button to cancel printing.
Note 1: If the settings are changed, the changes are not saved if the [Cancel] button
is clicked.
Note 2: When "Show in XYM" and "Show Decimal Constant with Sign" are selected
in the display mode, printout is performed according to the setting.
➮ Display mode (p. 2-19)
