Chapter 2 Editor
2-42
2
2.4.2 Deleting symbols
Edit ➔ Symbol Input ➔ Delete Symbol (Delete)
To delete a symbol, place the cursor in the symbol to be deleted, click it, and then
perform either of the following operations. (This procedure is equivalent in principle
to the character deletion procedure.)
• Press the space bar.
• Press the Delete key.
(When the Backspace key is pressed, the symbol just before the cursor is
deleted.)

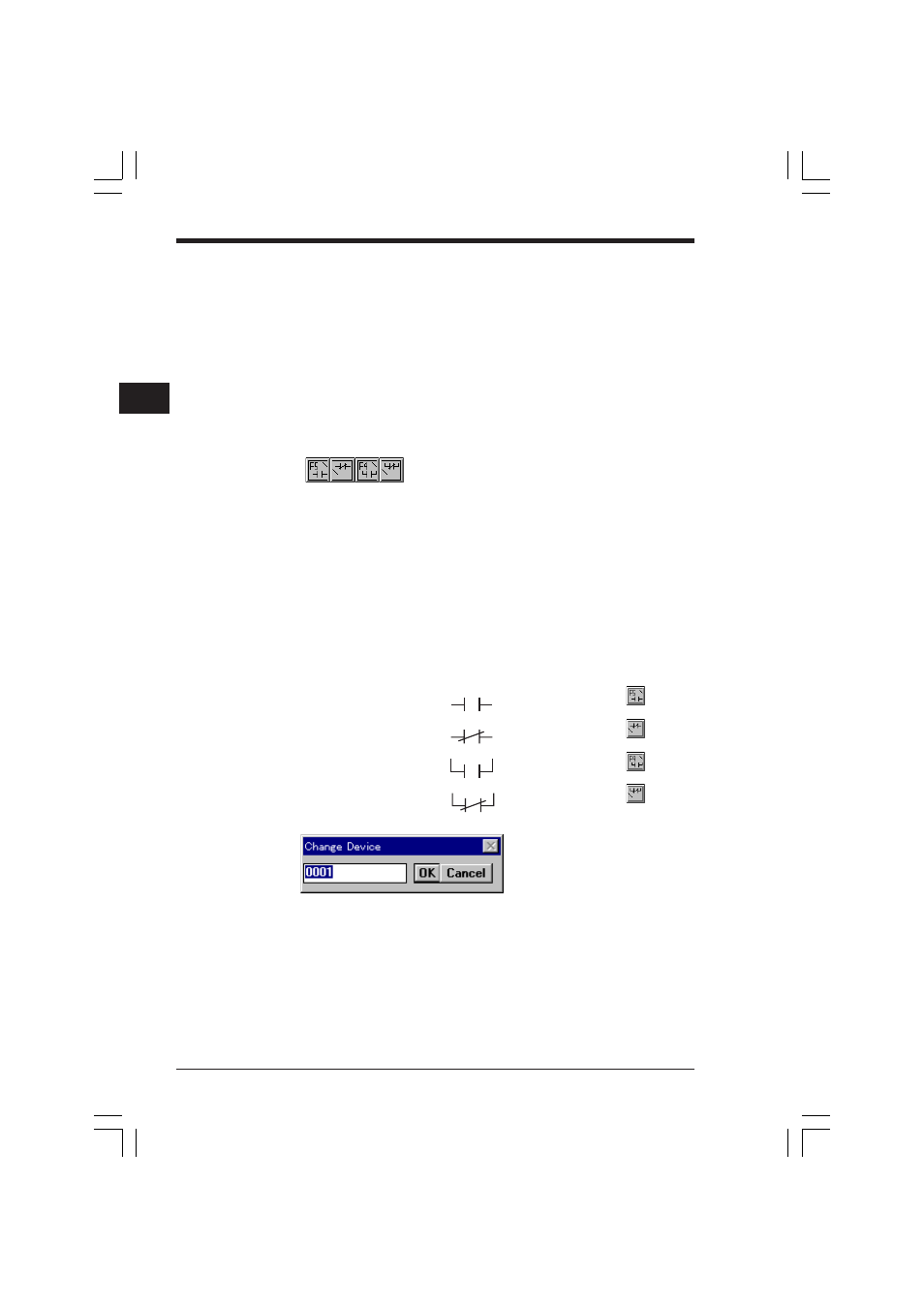

2.4.3 Entering contacts/coils directly
Enter a contact or coil directly in the current cursor position.
Entering a/b contacts
Edit ➔ Symbol Input ➔ a (N.O.) Contact Input (F5)
➔ b (N.C.) Contact Input (Shift + F5)
➔ a (N.O.) Contact OR Input (F4)
➔ b (N.C.) Contact OR Input (Shift + F4)
To enter a contact, perform the following procedure.
1. Place the cursor in the input position.
2. Select "Symbol Input" from the "Edit" menu, and select the contact type to be
entered from the submenu.
The corresponding function key can be pressed instead or the corresponding
icon can be clicked.
• The "Change Device" dialog box is displayed.
When entering an a contact:
a (N.O.) Contact Input (F5) key button
When entering a b contact
b (N.C.) Contact Input (Shift + F5) keys button
When entering an a contact OR
a (N.O.) Contact OR Input (F4) key button
When entering a b contact OR
b (N.C.) Contact OR Input (Shift + F4) keys button
3. Enter a device name directly from the keyboard into the text box.
4. When input is complete, click the [OK] button.
When the [Cancel] button is clicked, the setting entered is canceled and the
dialog box is closed.
5. The ladder symbol is entered.
