A-190 MIDI-CV/SYNC Interface System A - 100 doepfer
2

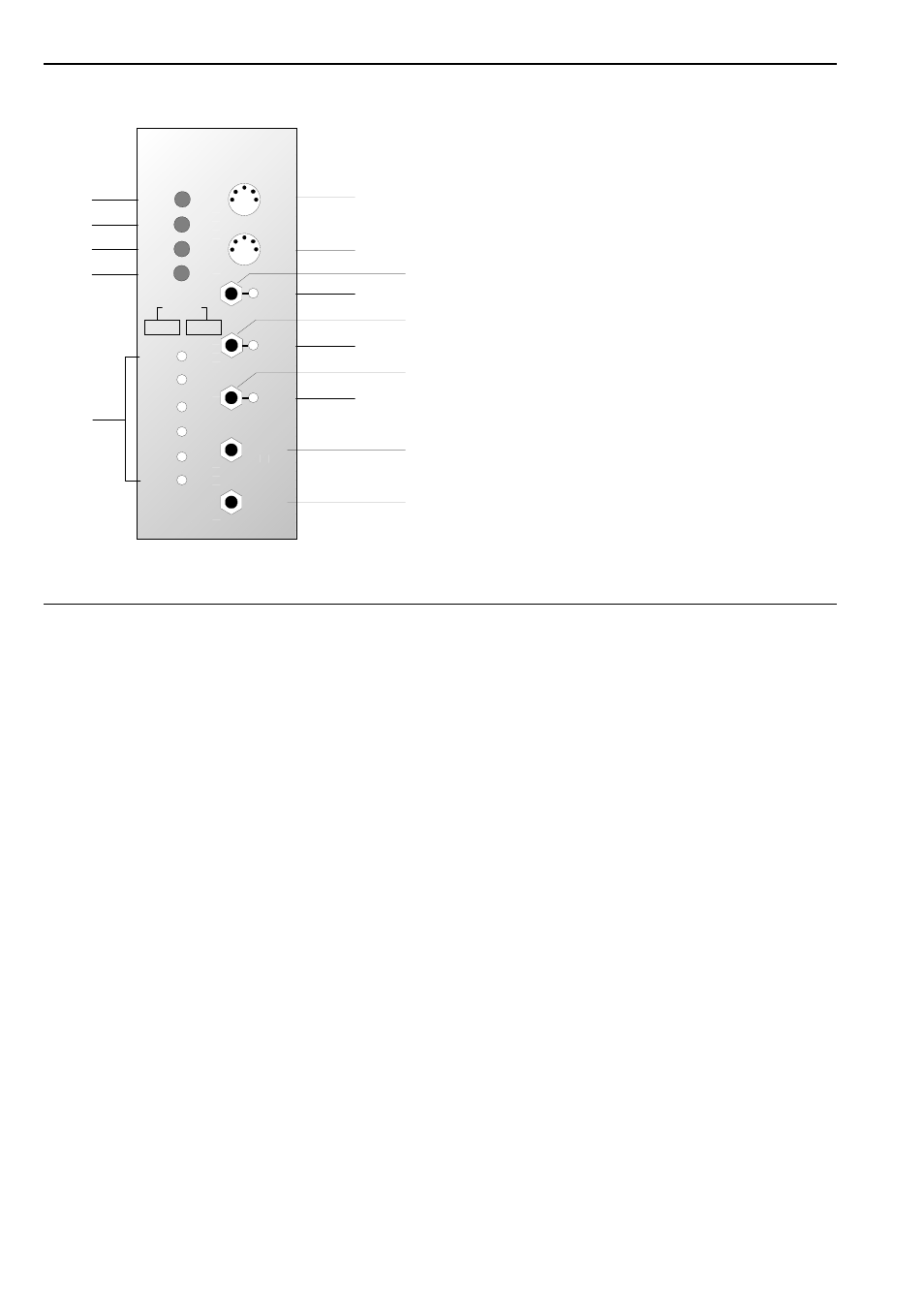

2. Overview Controls and indicators
1 Group : Button to select which menu section
(out of the Config and Performance
menus), is available for editing
2 Menu : Button to select items in Edit Mode,
choose items to be edited, and select
items in Performance Mode
3 INC / + : Button for increasing a parameter
value by one step at a time
4 DEC / - : Button for decreasing a parameter
value by one step at a time
5 Clock : LED clock signal indicator for output
§
6 Reset : LED reset signal indicator for output $
7 Gate : LED gate signal indicator for output %
8 LEDs : Indicate the menu selected in edit
mode
