doepfer System A - 100 Joy Stick A-174
5
The patch in fig. 1 shows how a A-174 can be used to
move the position of an audio signal in the quadropho-
nic hearing space. The mechanical position “JP” of the
joy stick lever corresponds to the virtual position “VP”
of the audio signal.

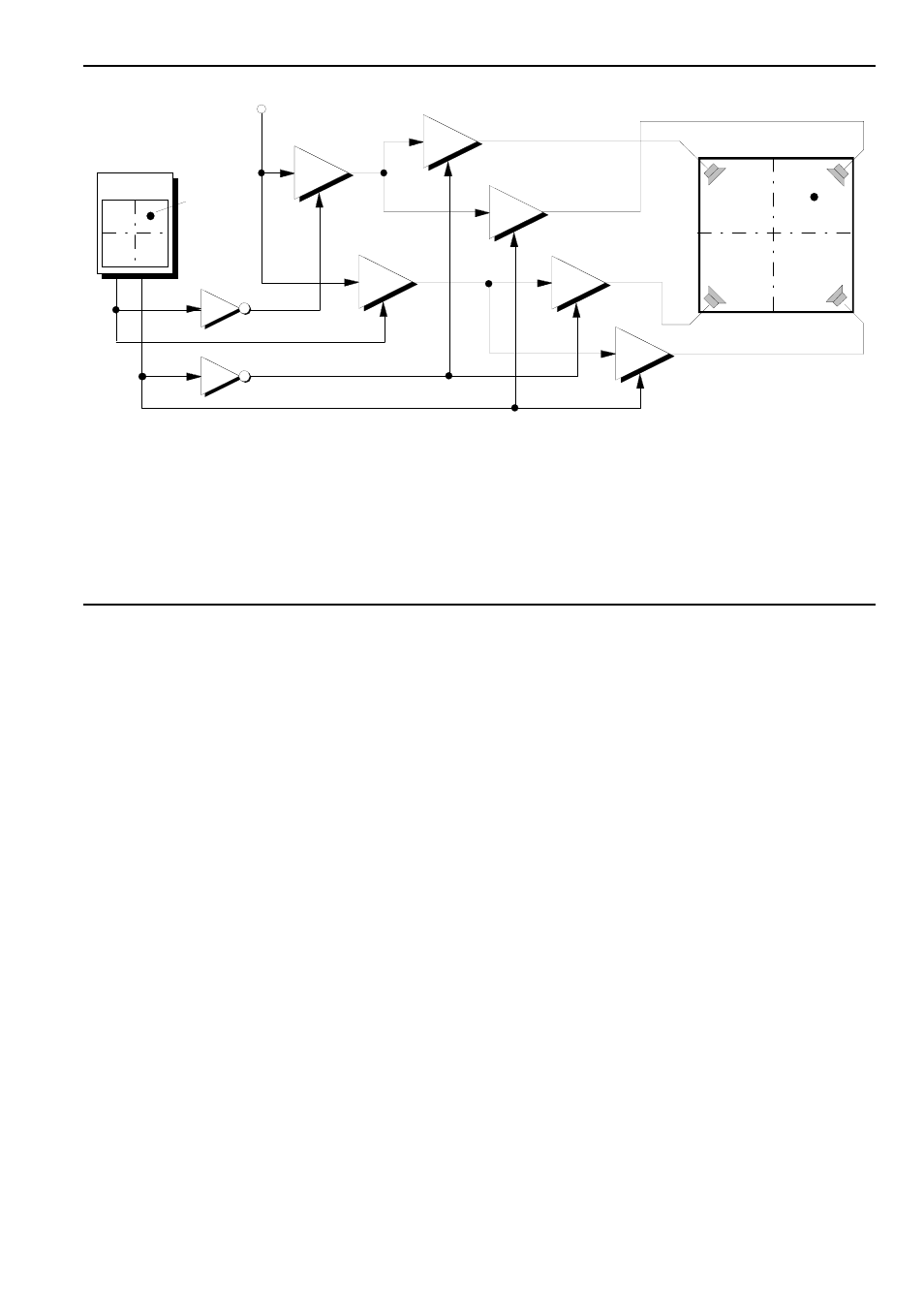

Fig. 1: Controlling the virtual position of an audio
signals in the quadrophonic hearing space
(each combination of one A-175 and two A-
130 can be replaced by a A-134 VC Panning
module).
A-174
JP
A-130
A-130
A-130
A-130
A-130
A-130
A-175
A-175
Y X
Audio In
VP
