A-108
6/12/24/48 dB Low Pass
System A - 100
doepfer
2

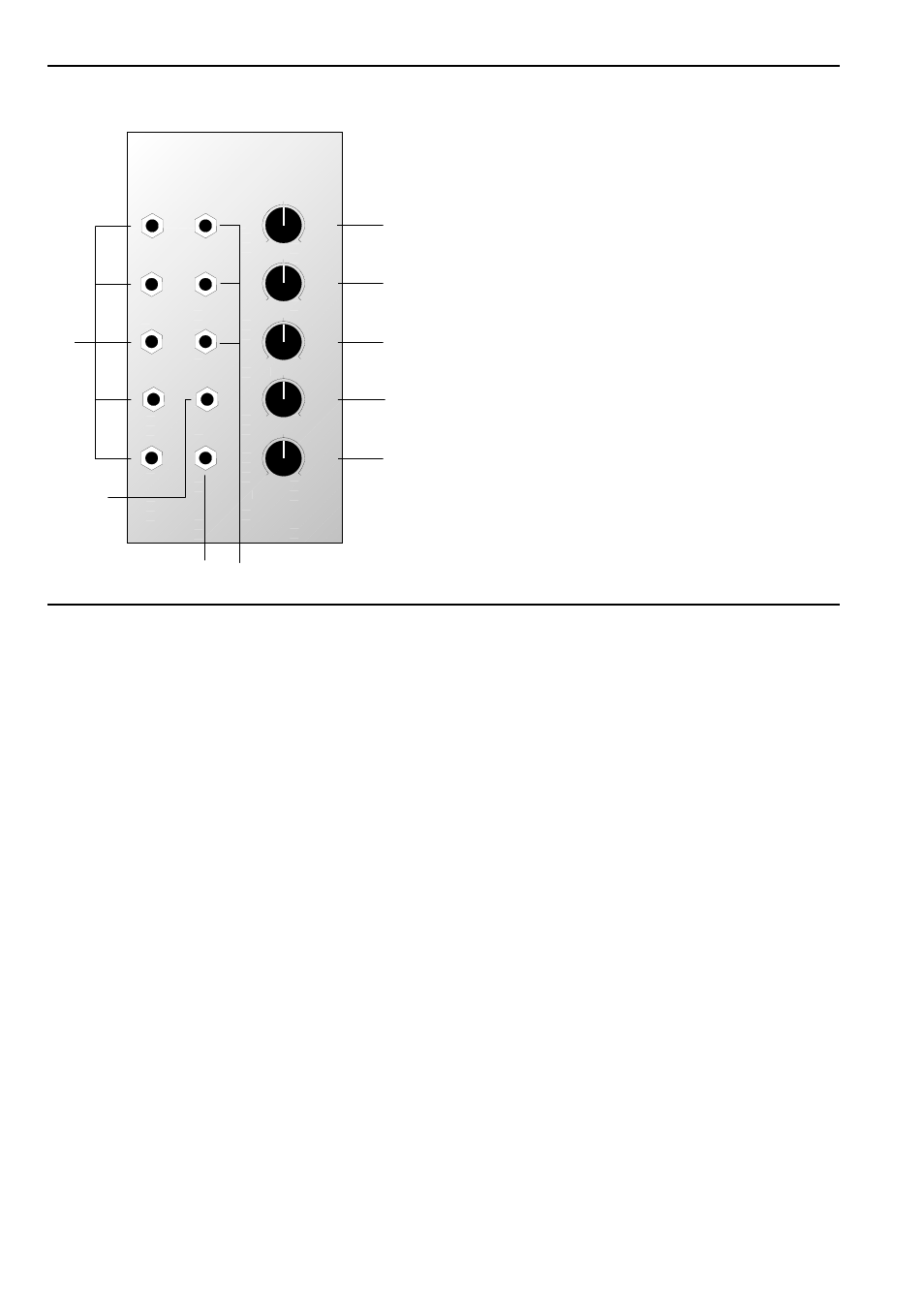

2. VCF 8 - Overview
Controls:
1
Freq. :
Manual frequency control
2
CV 2 :
Attenuator for frequency control
voltage at input § / CV2
3
CV 3 :
Attenuator for frequency control
voltage at input § / CV3
4
Audio Level : Attenuator for audio input !
5
Emph. :
Resonance control
In / Outputs:
!
Audio In :
Audio input to the filter
"
BP, 6 db LP ... 48 db LP : Filter outputs
§
CV 1:
Control voltage input for frequency
control, approx. 1V/Oct.
§
CV 2:
Control voltage input for frequency
control, level controlled by 2
§
CV 3:
Control voltage input for frequency
control, level controlled by 3
$
Feedb. :
external feedback input for reso-
nance (audio input)
A-108
VCF 8
CV 3
CV 1
Freq.
CV 2
Emph.
➊
➀
➁
➂
➃
➄
Feedb.
0
10
0
10
0
10
0
10
6/12/24/48 dB Lowpass
0
10
Audio
Level
6db LP
➋
➌
➍
CV 3
CV 2
Audio
In
12db LP
24db LP
48db LP
Ouputs
BP
