A-144 Morphing Controller System A - 100 doepfer
4
4. In- / Outputs
! CV In
The external control voltage is fed into the CV input
!
.
" Out 1 • ... • % Out 4
The 4 output control voltages are available at the CV
outputs " to % .
5. User examples
Morphing (standard application)
The patch in fig. 2 shows the typical application of the
A-144: the fading over (“morphing”) of 4 audio signals
in combination with the voltage controlled mixer mo-
dule A-135.
An increasing control voltage (typical range 0 -> +5V)
at the CV input of module A-144 results in continuous
“morphing” from audio signal 1 via 2 and 3 to 4.

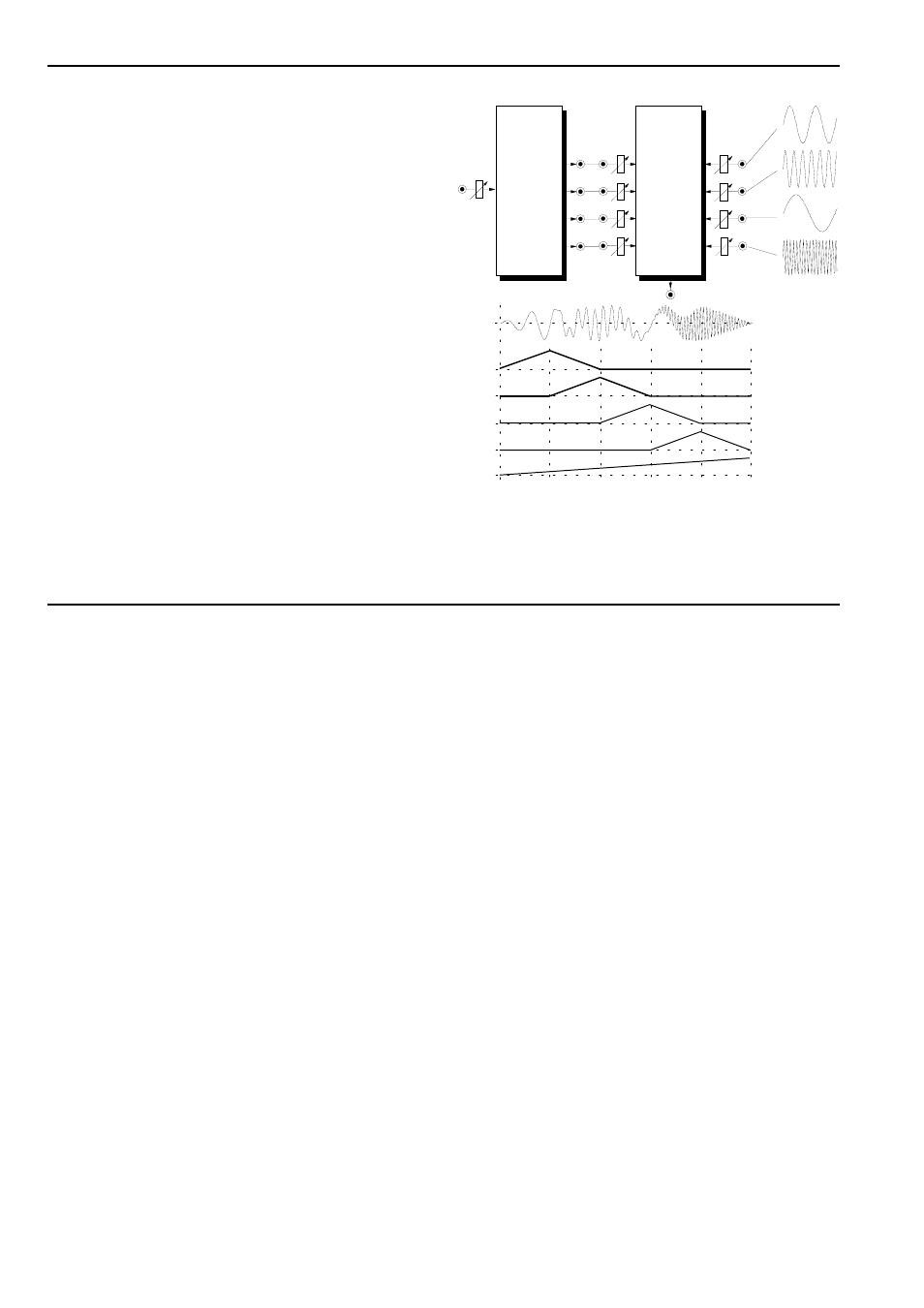

Fig 2: Morphing of four audio signals
1
A-135
VC-Mixer
Audio Out
2
3
4
Audio In
ext.
CV 1
ext.
CV 2
ext.
CV 3
ext.
CV 4
1
A-144
MC
2
3
4
CV Out
ext.
CV
CV
Audio
Out
CV Out 1
CV Out 2
CV Out 3
CV Out 4
CV In
