Doepfer A-116 VC Waveform Processor User Manual
System a - 100, A-116, Introduction
doepfer
System A - 100
VC Waveform Processor
A-116
1
1. Introduction
Module A-116 (Voltage Controlled Waveform Pro-
cessor) provides voltage-controlled dynamic wa-
veform modification of audio signals. It can produce
new waveforms from the standard VCO shapes, and
modulate these changes in real time.
The signal first of all goes through an input amplifier,
which can attenuate the signal as well as amplify it by
up to a factor of 2.
After the input amplifier, the signal goes through two
parallel processors: a clipping circuit, and an
asymmetrical amplifier. The processed signals are
added together and sent to the output.
Clipping-Level and Symmetry amounts are not just
manually controllable, but can also be modulated by
control voltages, to produce complex, constantly chan-
ging waveforms.

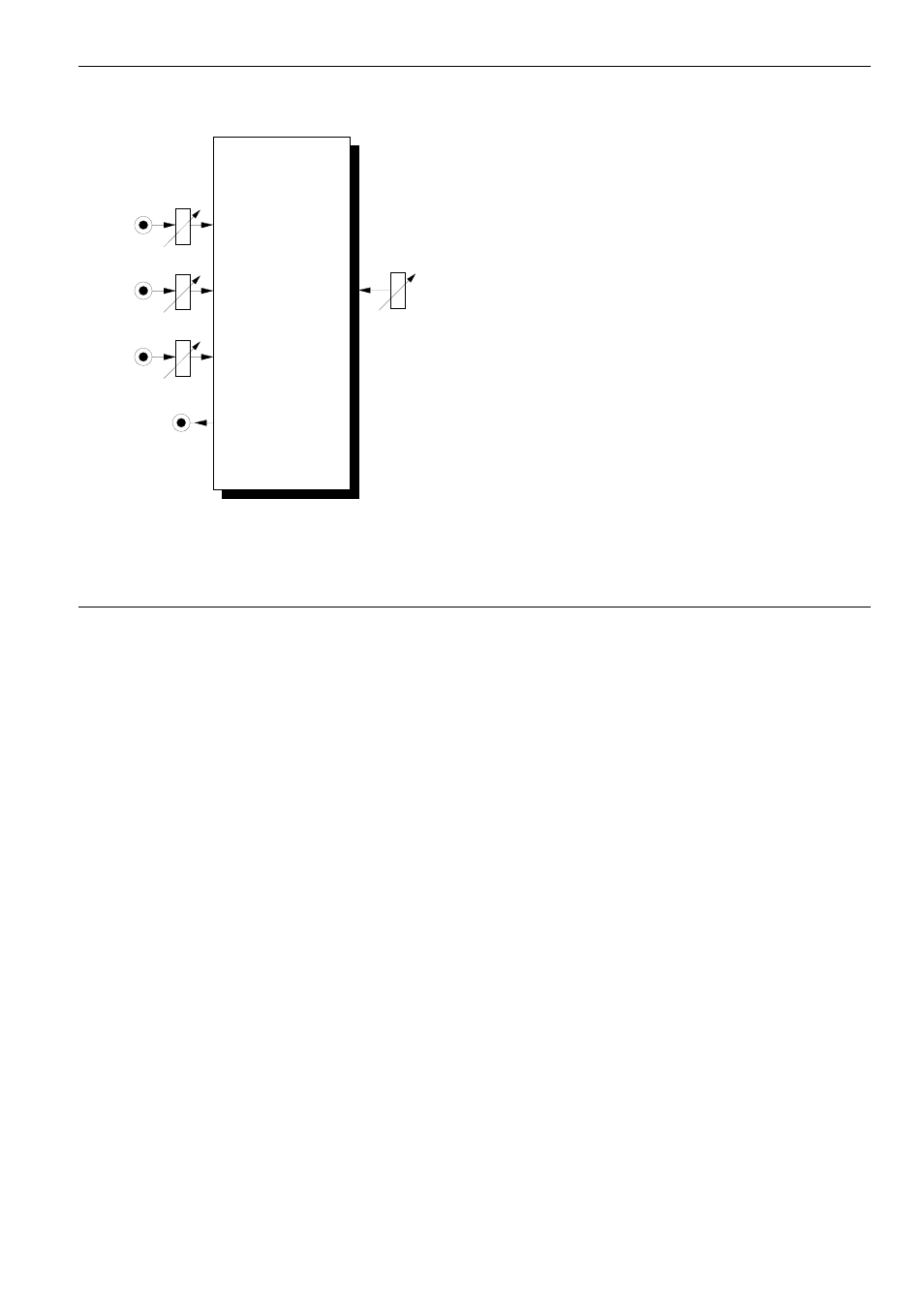

Clipping
CV
CCV
Symm. CV
Audio Out
Audio In
A-116
VCW
Clipping
Level
Lev.
SCV
