doepfer System A - 100 Sequencer Controller A-154
15
(4) Connect B1 with the female connector at the end of the ribbon cable that was removed from ST2 of the small A-
155 controller board (this cable leads to the potentiometer and trigger boards of the A-155). The male pin header in-
serted into female connector B1 is used to establish this connection. Pay attention the the position of the red wire is

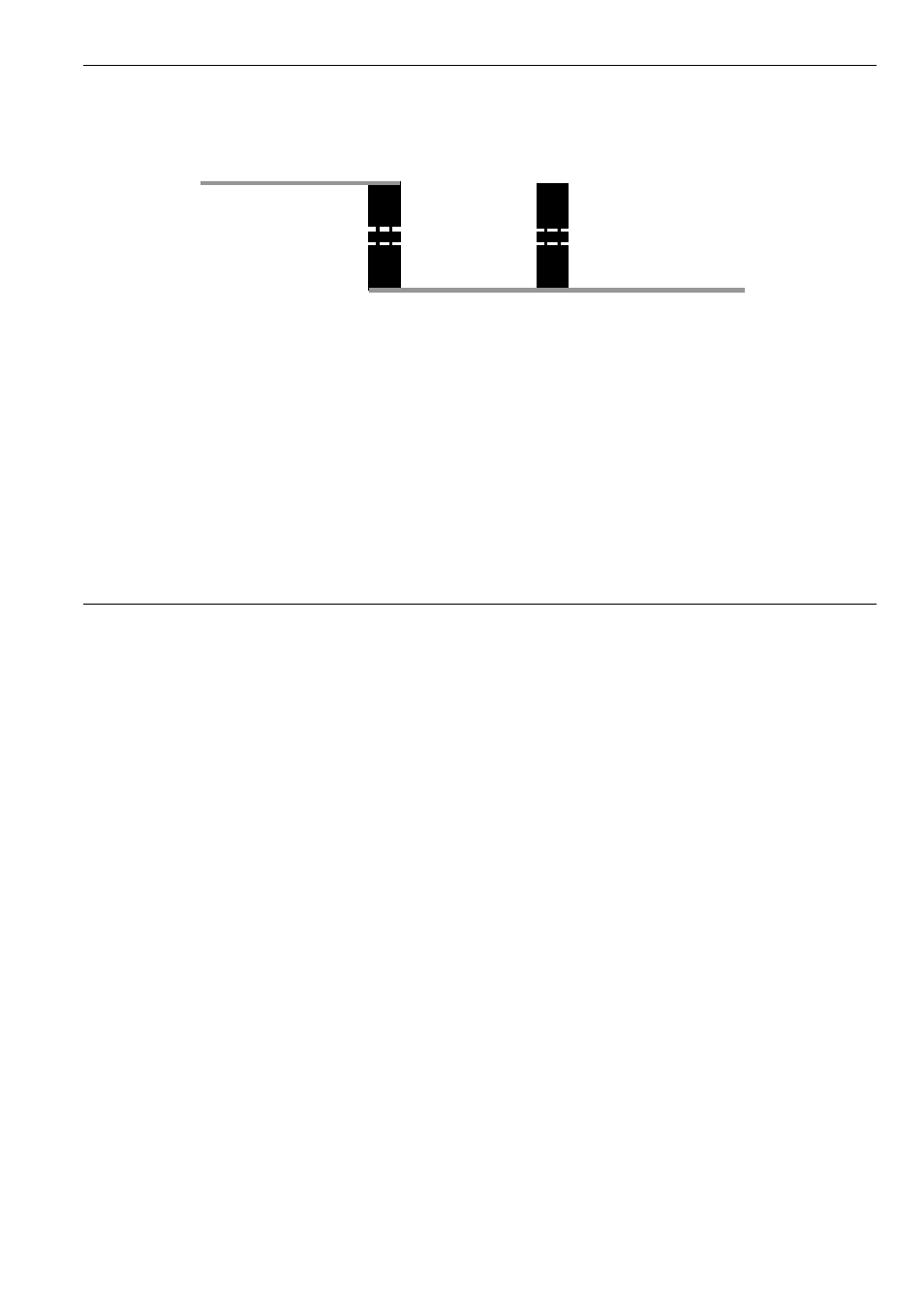

the same for both ribbon cables ! The complete connection looks like this:
to A-154
B1 B2
to potentiometer
and trigger
boards of A-155
