A-163 VC Frequency Divider System A - 100 doepfer
2

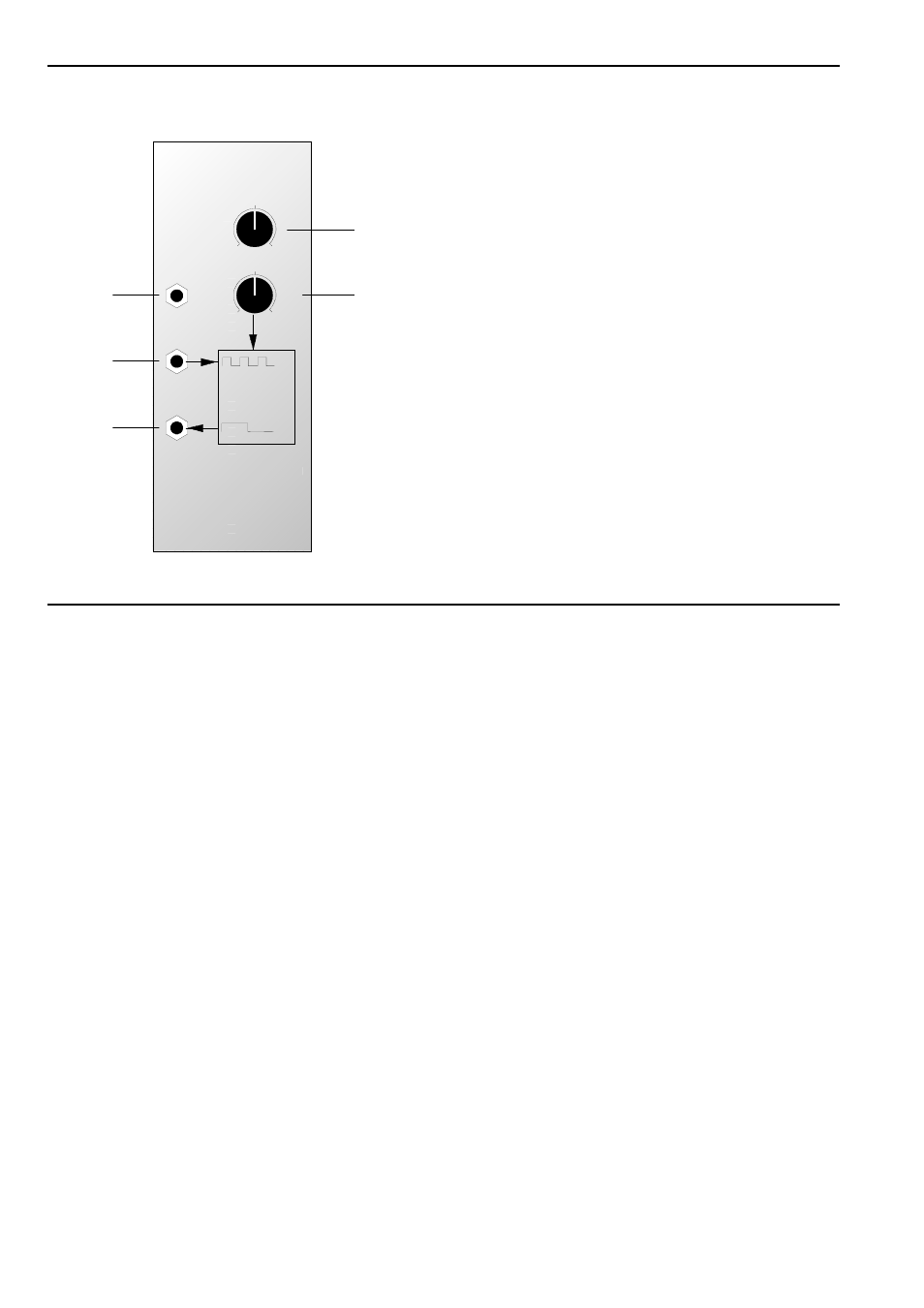

2. Overview Controls:
1 Manual: Control for manual setting of the integer
dividing factor N
2 CV : Symmetric (negative-0-positive) attenua-
tor for control voltage at input !
•
fully clockwise: max. positive level
• middle position: level 0
•
fully counterclockwise: max. negative
level
For the first production series the inscription of the CV
knob 2 is wrongly 0...10 instead of -5...0...+5. The in-
formations in this manual are correct, i.e. left stop = -
5, middle position = 0, right stop = +5.
In- / Outputs:
! CV In : Control voltage input
" In : Audio input (preferably the rectangle
output of a VCO or LFO), i.e. the master
frequency for the divider
§ Out : Audio output of the frequency divider
(rectangle)
A-163 VDIV
CV In
In
Out
CV
Manual ➀
➁
VC Frequ. Divider
0 10
-5 +5
Divide
by N
