A-144
Morphing Controller
System A - 100
doepfer
2
2. Overview

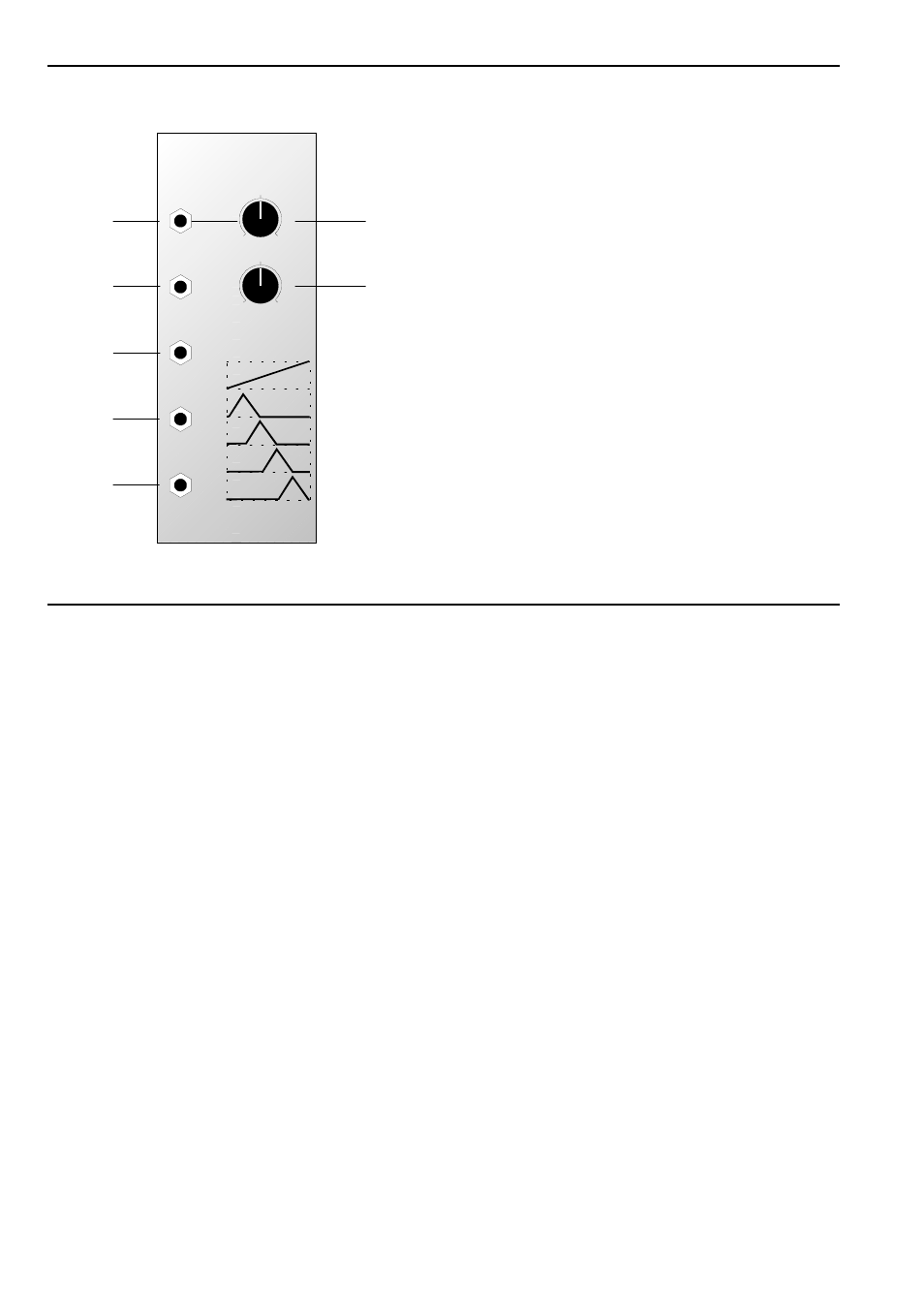

Controls:
1
CV :
Attenuator for the control voltage at
input !
2
Man. Morph : Manual morphing control
In- / Outputs:
!
CV In :
Control voltage input
"
Out 1 :
Control voltage output 1 (0...+5 V)
§
Out 2 :
Control voltage output 2 (0...+5 V)
$
Out 3 :
Control voltage output 3 (0...+5 V)
%
Out 4 :
Control voltage output 4 (0...+5 V)
A-144 MC
Morph Controller
Man. Morph.
CV
CV In
Out 1
Out 2
Out 3
Out 4
Morph CV
Out 1
Out 2
Out 3
Out 4
➊
➋
➌
➍
➀
➁
➎
0
10
0
10
