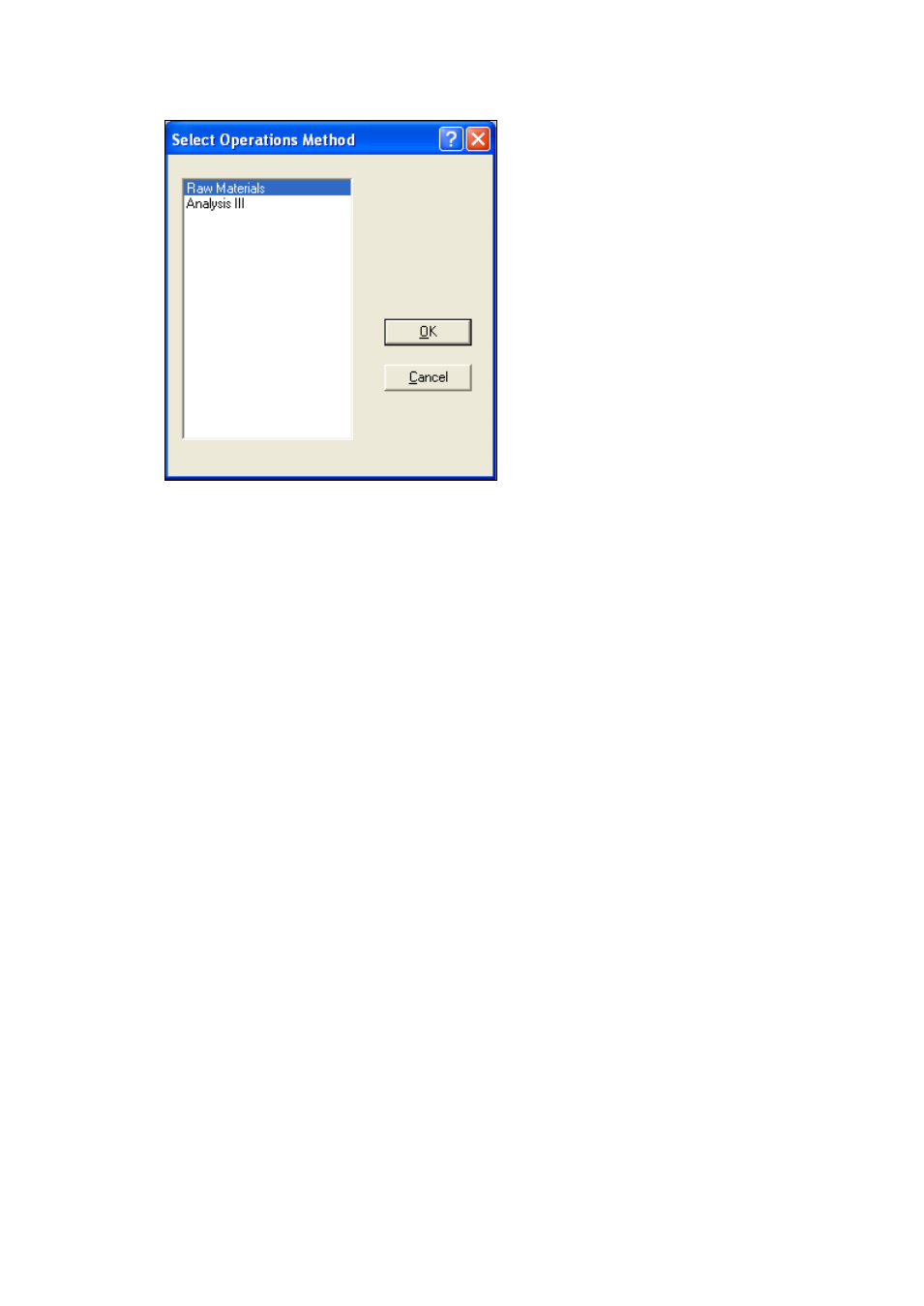

• Select the Operations Method to use for the analysis.
• Click on Mode/Data Acquisition to return to Data Acquisition mode.
3.16 Communicating with Metrohm NIRSystems XDS Instruments
To communicate with a Metrohm NIRSystems XDS instrument, the user must have Vision software on
a computer capable of supporting it. That means, if the operating system is Windows 98 – NT 4.0,
the computer must have a minimum of 256 Mb RAM or if the operating system is Windows 2000 –
XP there must be a minimum of 512 Mb RAM.
3.16.1 How the Communication works
When an XDS instrument is powered-up (turned on) it looks for a dynamic IP address from a DHCP
(Dynamic Host Configuration Protocol) Server.
If a DHCP Server is available, the IP address is assigned dynamically and communication between the
computer and the instrument begin.
If a DHCP Server is not available, after a period of inactivity the instrument will time-out and a fixed
or static IP address (Our default of 169.254.0.2) will be assigned.
3.16.2 Dynamic IP Address
If the instrument is connected to a network using standard Ethernet cable where DHCP server
resides, a compatible IP address will be assigned.
Use a standard Ethernet cable.
3.16.3 Static IP Address (or direct connect)
If the instrument is connected to a network with a standard Ethernet cable and no DHCP Server is
available, the user is responsible to make sure the IP address of the computer where Vision resides is
compatible with the IP address of the instrument. (169.254.0.2). If not, Metrohm has a protocol (see
attachment Changing the IP Address) to change the IP address within the instrument for
