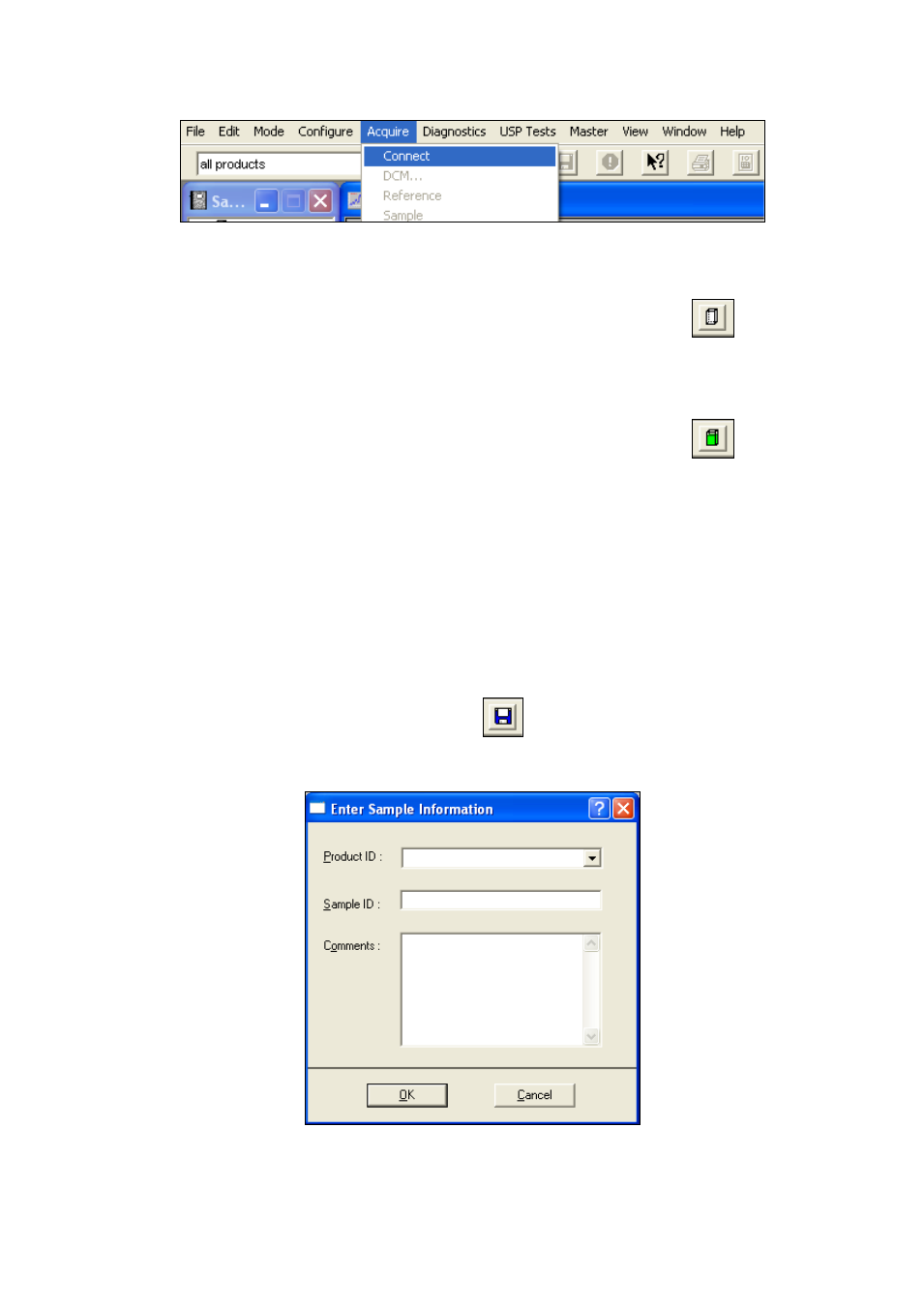

(If under Acquire you can see the Disconnect option instead of Connect, you are already connected).
Select the DCM and click on OK.
Click on Acquire/Reference to scan the reference. Alternatively, you may click
on the Reference icon:
The red progress bar at the bottom of the screen shows the status. After the scan is complete, click
on the Reference tab at the top of the screen to view the reference spectrum.
Click on Acquire/Sample to scan the sample spectrum. Alternatively, you may
click on the Sample icon:
The blue progress bar at the bottom of the screen shows the status. After the scan is over, click on
the Sample tab at the top of the screen to view the sample spectrum. The last spectrum acquired is
displayed in black.
You can also scan reference and sample using the cuvette icons located below the main menu. Place
the cursor on the icon to see its function.
3.3.2 Saving Spectra
You can save the last acquired spectrum as follows:
Click on Acquire/Save or on the save icon:
• The Enter Sample Information dialog box will be displayed:
• In the Enter Sample Information dialog box, type in the Product ID (or choose it from the
drop-down list) and the Sample ID. Enter the optional comment and click on OK. An example
is given:
