▪▪▪▪▪▪▪ 25

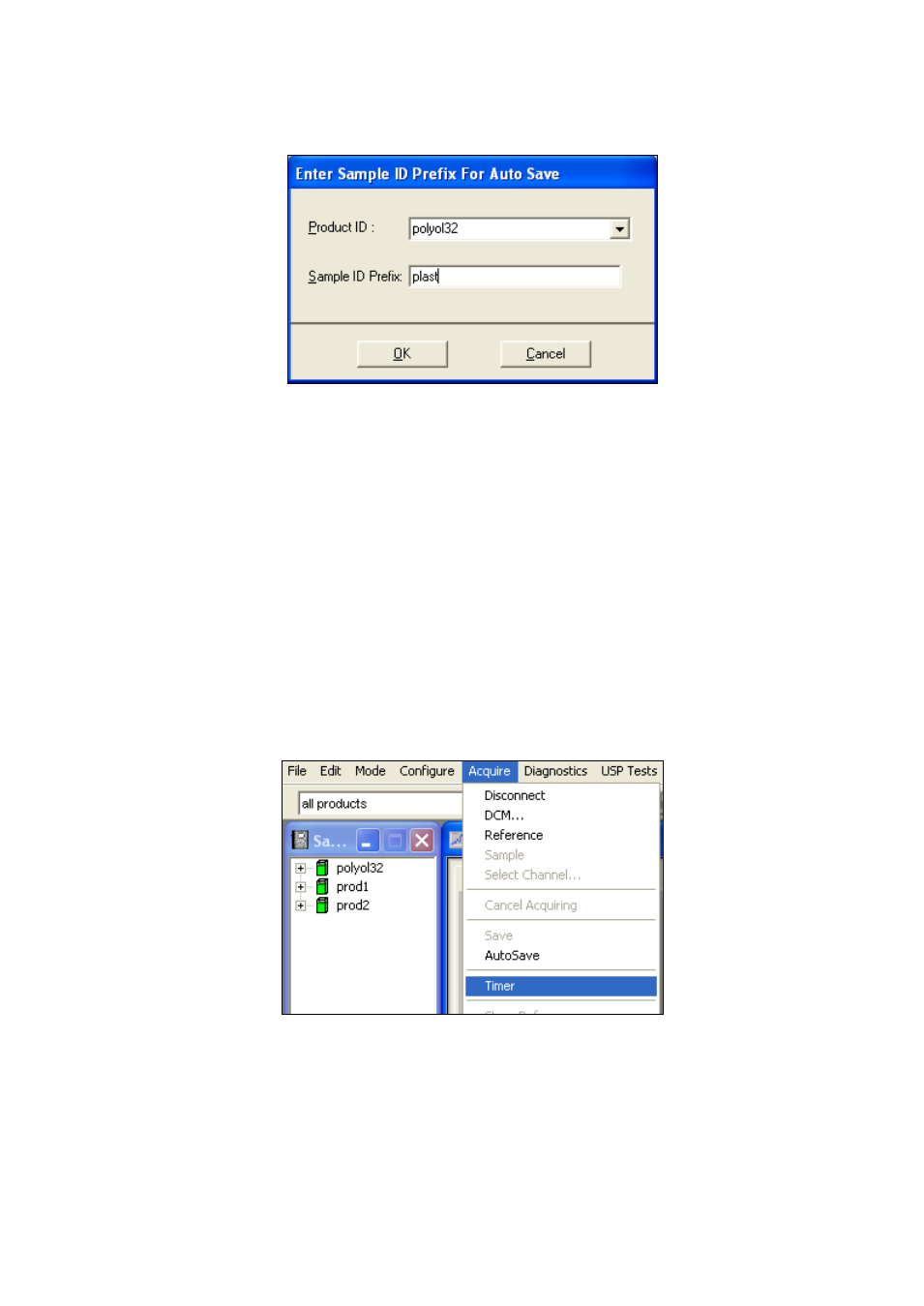

• This dialog box will be displayed:
In the dialog box select the product ID from the drop-down list. (You can also enter a new
product name. In this case you will have to define class and constituent parameters for this
new product).
Enter the sample name prefix. Samples will be saved with names created from the prefix with
a 4-digit consecutive number appended.
Acquire spectra in a normal way. They will be automatically saved into the selected product.
To stop Autosave function, click on Acquire/Autosave to disable it.
3.3.6 Using the Data Acquisition Timer
The data acquisition timer allows data acquisition to run automatically and to scan the reference and
samples in predefined time intervals. The acquired spectra are saved by the Autosave function. This
function is used most often with process instruments. To program the timer:
• Click on Acquire/Timer.
• The Configure Timer/Reference Frequency window appears.
