Installation
4-35
48XX/49XXSHB0399
4900Str023
l
l
L
L 1 L 2 L 3
P E
2 3
6
7
8 9
1 0
1 1
1 2
1 5
1 3
4

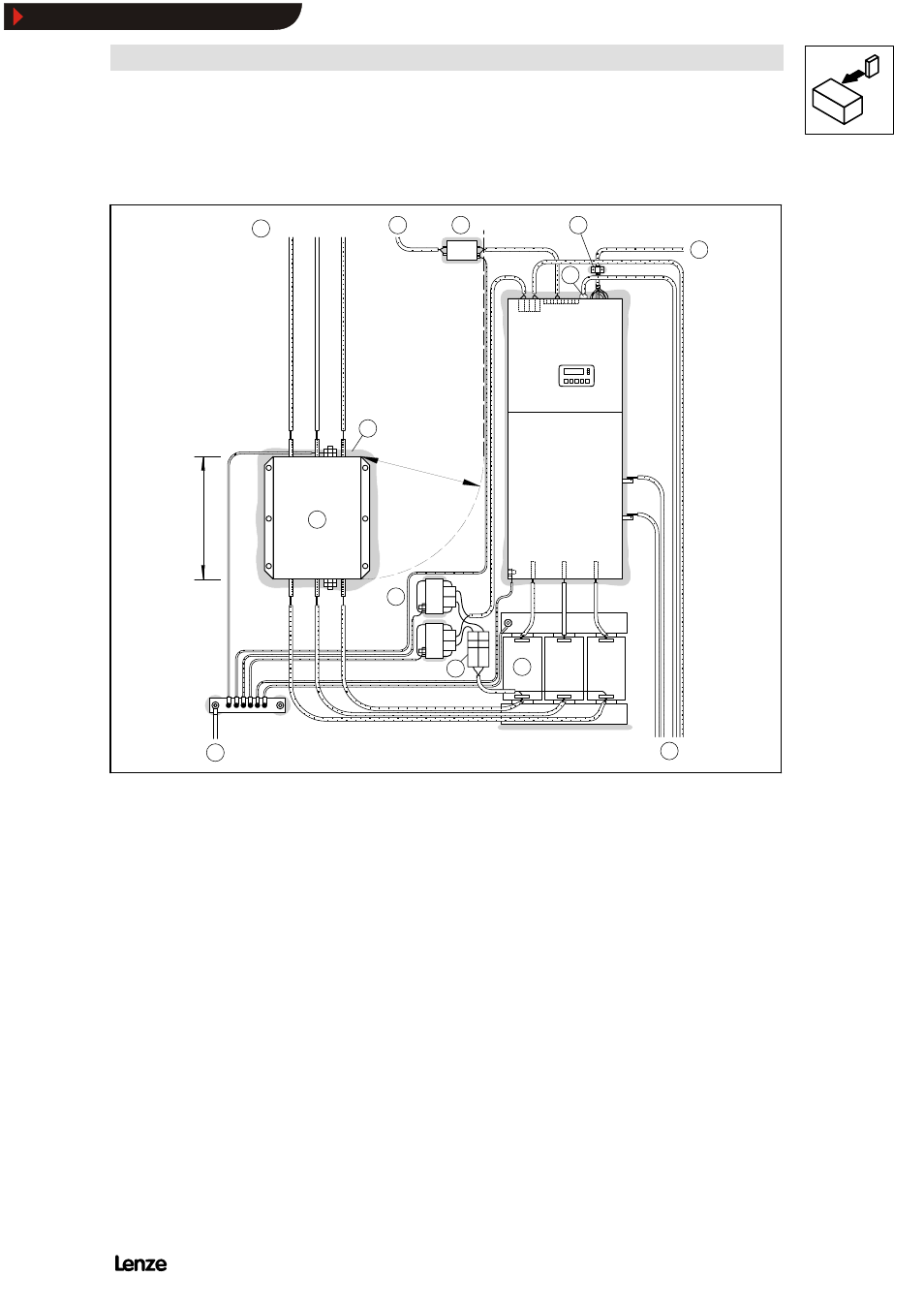

FIG 4-25 Part of the CE-typical drive system with 4X11 ... 4X13 on a mounting plate
1 Connection mains fuse
2 Connection fan supply L1/N
3 RFI filter
4 Uncoated surface for screen connection
5 Metal plug-in casing connected to screen or Lenze system cable
6 Screened signal cables
7 Motor connection with screened cable for act. value encoder
8 Commutating choke
9 Line protection fuses for field supply
10 Mains choke field supply
11 PE connection
12 RFI filter
13 Uncoated, bare metal contact surfaces
