Configuration
7-9
48XX/49XXSHB0399
7.1.1.7 Limitation of the speed set-value
Main and additional set-values are lined via the arithmetic block 1 and then limited
via a limitation element with adjustable limits (C286, C287). This function can be
used if certain negative or positive values must not be exceeded during operation.
JOG 1
JOG 2
JOG x FDE
0
1
`
21 22
QSP
C134 QSP
C012 T
C013 T ir
if
C190
0
1
C105
QSP
n
n
max
C046
C011
C145/C146
C049
C145/C146
C042
max
/ -
· +
C46
100% - C49
C286 C287
n
100 %
FDE
FDE
FDE
C182
max
C050
Configuration C005 = -10- ... -53-
C041
CW/CCW
CW CCW
Enable
RFG stop
RFG zero
set 1
in % of n
Z off
set
n at n-controller
in % of n
n-controller
set
SPI
C220, C221
set 2
4900Str031

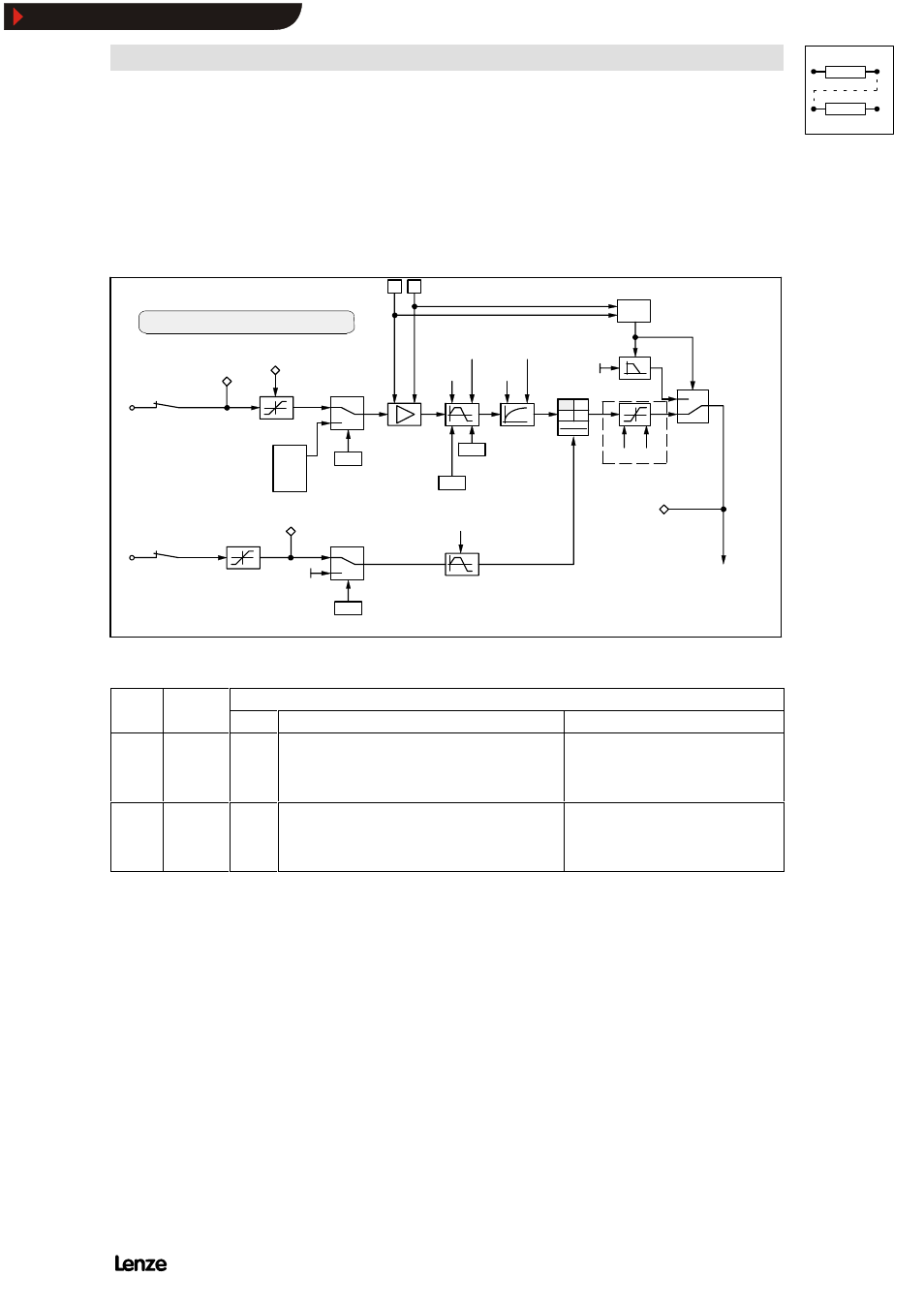

FIG 7-4 Signal-flow chart for speed set-value selection with limitation element
Code Name Possible settings
Lenze Selection Info
C286* ¤ Upper limit
of the
speed
setpoint
180% -100.0 % {0.1 %} + 100.0 %
-180 % {1 %} + 180 %
Upper limit of the speed setpoint for C050
C286 must be higher than C287!
C287* ¤ Lower limit
of the
speed
set-value
-180% -100.0 % {0.1 %} + 100.0 %
-180 % {1 %} + 180 %
Upper limit of the speed setpoint for C050
C287 must be smaller than C286!
