Page 169: 5 absolute value generator

Configuration

7-78

48XX/49XXSHB0399

7.5.5

Absolute value generator

Purpose

Bipolar signals can be converted into unipolar signals.

Parameter setting

4900Str061

C 1 4 6 / C 1 4 7

C 1 4 5 / C 1 4 6

C 6 6 0

C 1 4 5 / C 1 4 6

I n p u t

O u t p u t 1

O u t p u t 2

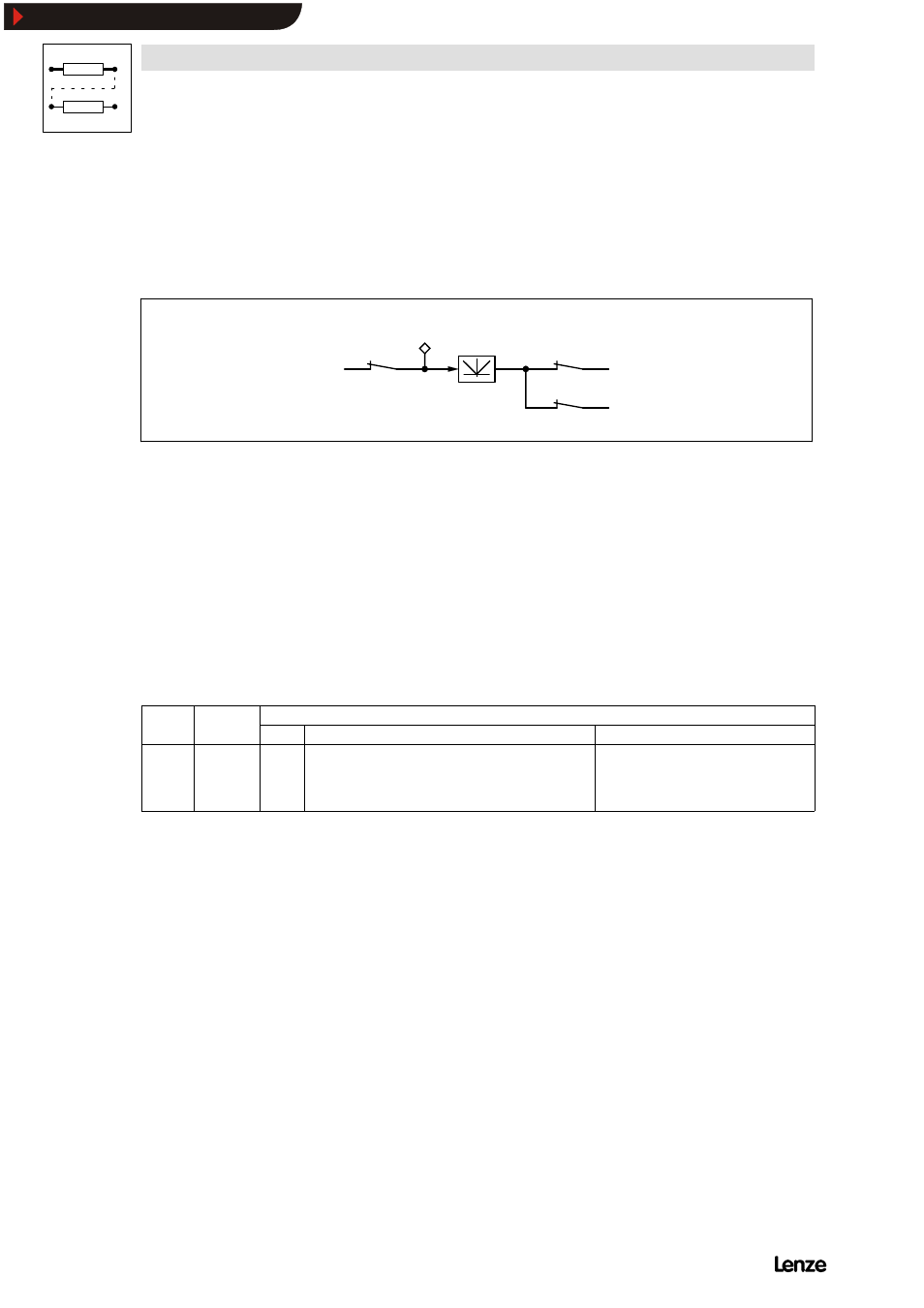

FIG 7-34

Absolute value generator

1. Input

With the function ”freely assignable analog inputs” each input can be assigned to
a ”terminal signal” from the table in C145.

2. Outputs

With the function ”freely assignable analog inputs” the outputs can be assigned to
the targets listed under C146.

3. Function

The absolute value of the input signal is generated.

Code

Name

Possible settings

Code

Name

Lenze Selection

Info

C660*

Input,
absolute
value
generator

0 %

-100.0 %

{0.1 %}

100.0 %

-200 %

{1 %}

+ 200 %

Display parameter only
