Accessories
13-5
48XX/49XXSHB0399
13.1.3 Internal fuses
Except for the cell fuses, all fuses are on the board 4902/3/5 LP or 4X08/11 LP.
Type Rated data Order designation
Fuse type
V [V] Dimensions
[mm]
g
Field fuses
F1, F2
4902 ... 4907
4X08 ... 4X13 FF 16 A
FF 32 A 500
600 6.3 x 32
14 x 51
EFSFF0160AWB
EFSFF0320AYH
Electronics fuses F3, F4 M0.5 A 500 5 x 30 EFSM-0005AWA
Overvoltage protection F5,
F6, F7
FF16 A 500 6.3 x 32 EFSFF0160AWB
Cell fuses
F1 1/F1 2
4X11 500 A 1000 01.80 EFSFF5000AZ
F1.1/F1.2
F2.1/F2.2
4X12 800 A 1000 02.80 EFSFF8000AZ
F2.1/F2.2
F3.1/F3.2
4X13 900 A 1000 03.80 EFSFF9000AZ
13.1.4 Fuse holder
Order designation Fig
Dimensions
Order designation Fig.
a [mm] b [mm] e [mm] m [mm] c [mm]
EFH10002 FIG 13-1 17.5 97 78.5 - -
EFH30006 FIG 13-1 35 125 83 - -
EFH30005 FIG 13-2 see figure
EFZ0003 FIG 13-3 40 146 43 6 25
EFH10003 FIG 13-4 see figure
e
a b
4900Str088

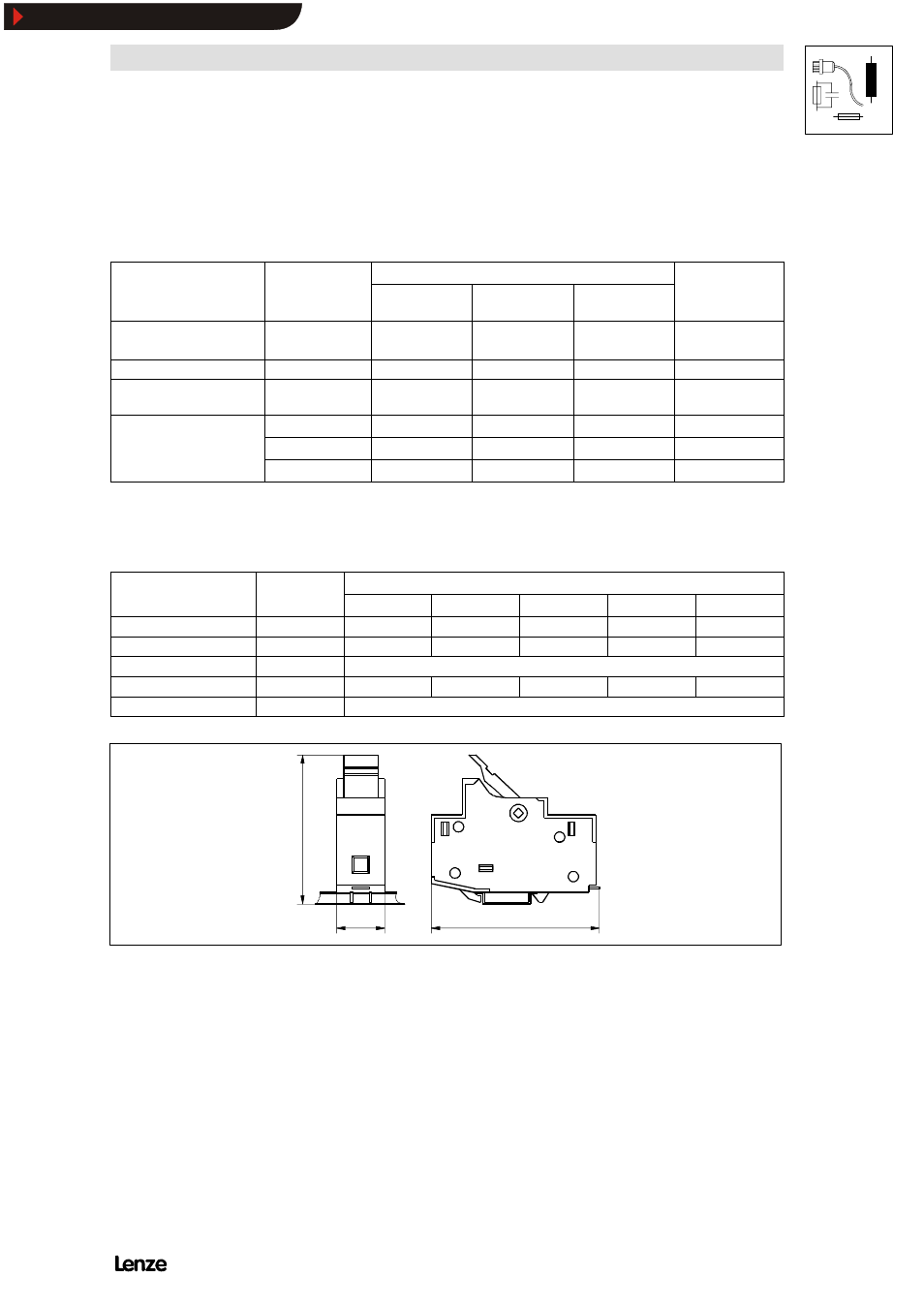

FIG 13-1 Fuse holder for DIN rail assembly (35mm)
