Configuration

7-17

48XX/49XXSHB0399

Adjustment of the field weakening operation:

1. Enter I

Fmin

under C231 (10...100% ref. to I

Frated

2. Selection of 100% n

set

at X1/8.

3. Increase n

max

under C011 until reaching the required speed.

There is a PT1 element with an adjustable time constant between armature current
controller and field current controller. With this PT1 element the two circuits can
be decoupled.

The time constant is set to 140 ms as standard. For standard applications the time
must not be adjusted.

If the field control circuit is unstable in field weakening operation, increase or
decrease the time constant of the PT1 element.

4900Str033

C 0 8 4 L / R

C 1 8 8

C 1 4 5 / C 1 4 6

L 1 + . . . L 3 -

C 0 7 7 V

C 0 7 8 T

C 0 9 0

C 0 7 9

P I _ F C

N I _ F C

C 0 8 3

C 2 3 1

C 1 8 7

s e t '

I a c t '

I - c o n t r o l l e r

I F a c t

I - c o n t r o l l e r

F r

I g n i t i o n p u l s e

I F s e t

I g n i t i o n p u l s e

a l p h a

C u r r e n t d e t e c t i o n

I F m i n

I F s e t

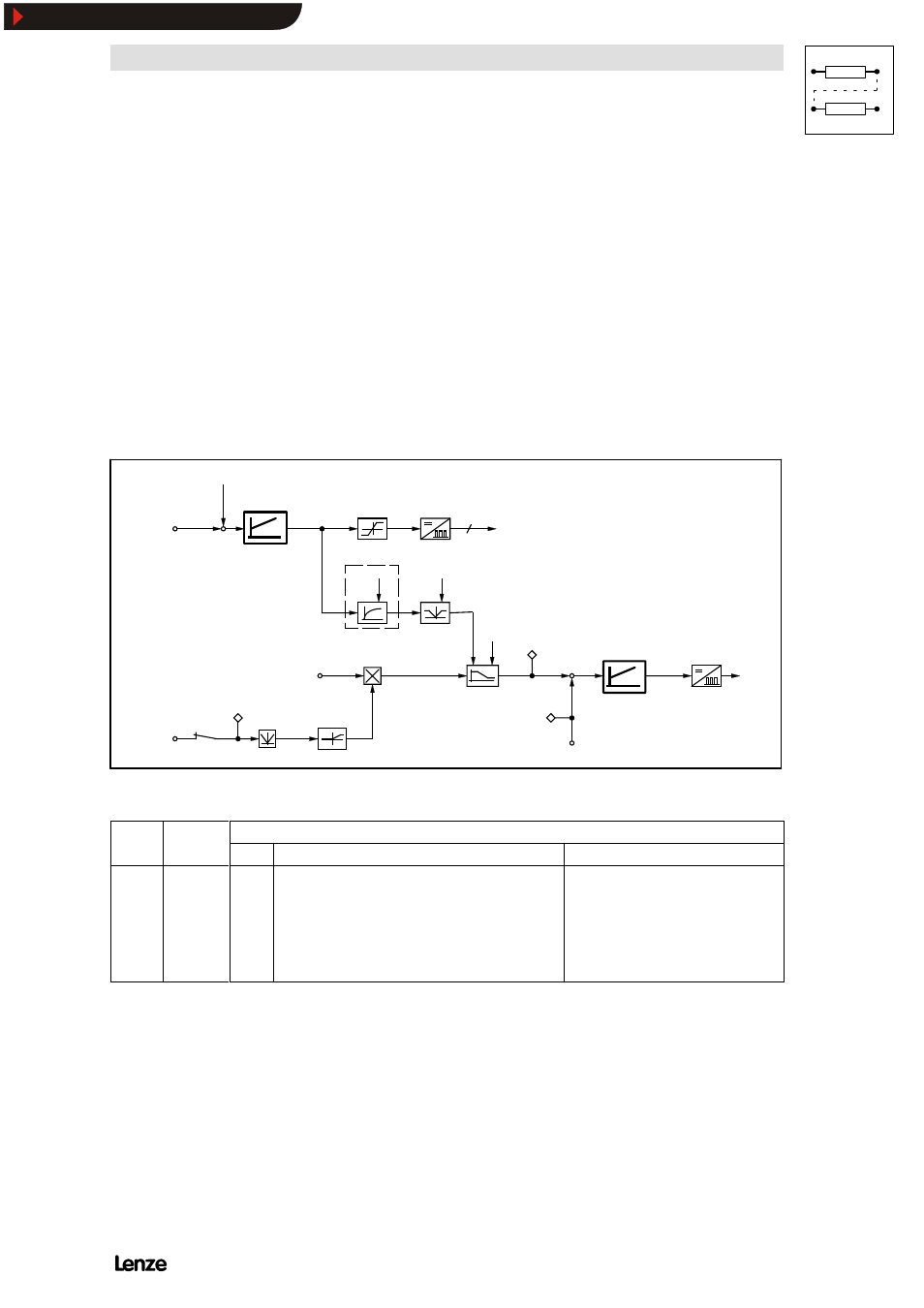

FIG 7-6

Signal flow chart (section) for the field control circuit with Vdown limitation

Code

Name

Possible settings

Lenze Selection

Info

C079*

PT1
element
Time
constant
for field
controller
attenuation

140

30 ms

{10 ms}

9000 ms

The higher the time constant, the higher
the decoupling degree between aramture
and field control circuits.

In general, the time constant is to be increased if the field current oscillates. As a
result, the dynamic response of the system is reduced.
