9300 Servo PLC
System blocks
2.4
AIF_IO_Management (node number 161)
2−23
L
9300 Servo PLC EN 5.1
2.4
AIF_IO_Management (node number 161)
2.4.1
Inputs_AIF_Management
This SB monitors the communication of a communication module connected to the automation
interface (AIF).
·
In the event of an error, AIF_bCe0CommErr_b is set to TRUE and the communication error
"CE0" (LECOM no. 61) is set. The response to this can be configured under C0126 (Lenze
setting: off).
·
New AIF communication modules (e.g. 2133 and 2175) also use
AIF_bFieldBusStateBit0_b ... AIF_bFieldBusStateBit15_b to transfer an error number from the
communication module.
·
C2121 displays the status.
Tip!
Please observe the documentation for the attached communication module.
AIF
Communication
Error
AIF
Fieldbus State
Automation
interface
Inputs_AIF_Management
AIF_bCe0CommErr_b
AIF_bFieldBusStateBit0_b
AIF_bFieldBusStateBit1_b
AIF_bFieldBusStateBit2_b
AIF_bFieldBusStateBit6_b
AIF_bFieldBusStateBit5_b
AIF_bFieldBusStateBit4_b
AIF_bFieldBusStateBit3_b
AIF_bFieldBusStateBit7_b
AIF_bFieldBusStateBit8_b
AIF_bFieldBusStateBit9_b
AIF_bFieldBusStateBit10_b
AIF_bFieldBusStateBit14_b
AIF_bFieldBusStateBit13_b
AIF_bFieldBusStateBit12_b
AIF_bFieldBusStateBit11_b
AIF_bFieldBusStateBit15_b

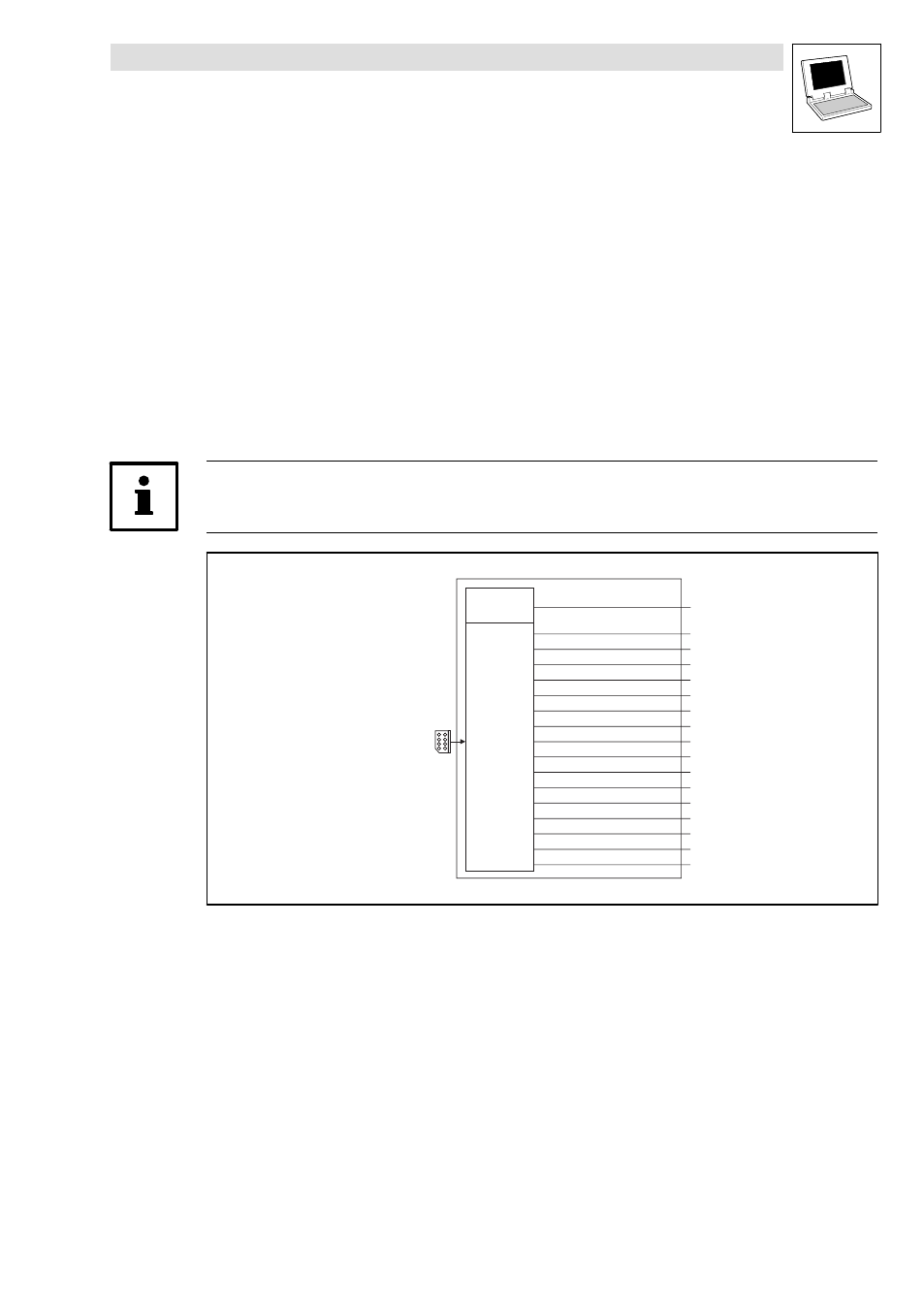

Fig. 2−7
System block "Inputs_AIF_Management"
