9300 Servo PLC
System blocks
2.2
AIF2_IO_AutomationInterface (node number 42)
2−15
L
9300 Servo PLC EN 5.1
2.2
AIF2_IO_AutomationInterface (node number 42)
2.2.1
Inputs_AIF2
Automation interface (node number 42)
This SB is used as an interface for input signals (e.g. setpoints/actual values) from attached fieldbus
modules (e.g. INTERBUS, PROFIBUS−DP).
·
The process image is
– created in the cyclic task in a fixed time interval of 10 ms.
– created in an interval task within the time set for this task.
– read at the beginning of the task and written at its end.
Tip!
Please observe the Operating Instructions for the attached fieldbus module.
Inputs_AIF2
Automation
Interface
AIF2_bInB0_b
AIF2_bInB15_b
AIF2_nInW1_a
16 Bit
...
16 binary
signals
Byte
1
Byte
2
Byte
3
Byte
4
Byte
5
Byte
6
Byte
7
Byte
8
AIF2_bInB16_b
AIF2_bInB31_b
AIF2_nInW2_a
16 Bit
...
16 binary
signals
16 Bit
LowWord
16 Bit
HighWord
AIF2_nInW3_a
AIF2_dnInD1_p
16 Bit
16 Bit
AIF2_nInW4_a

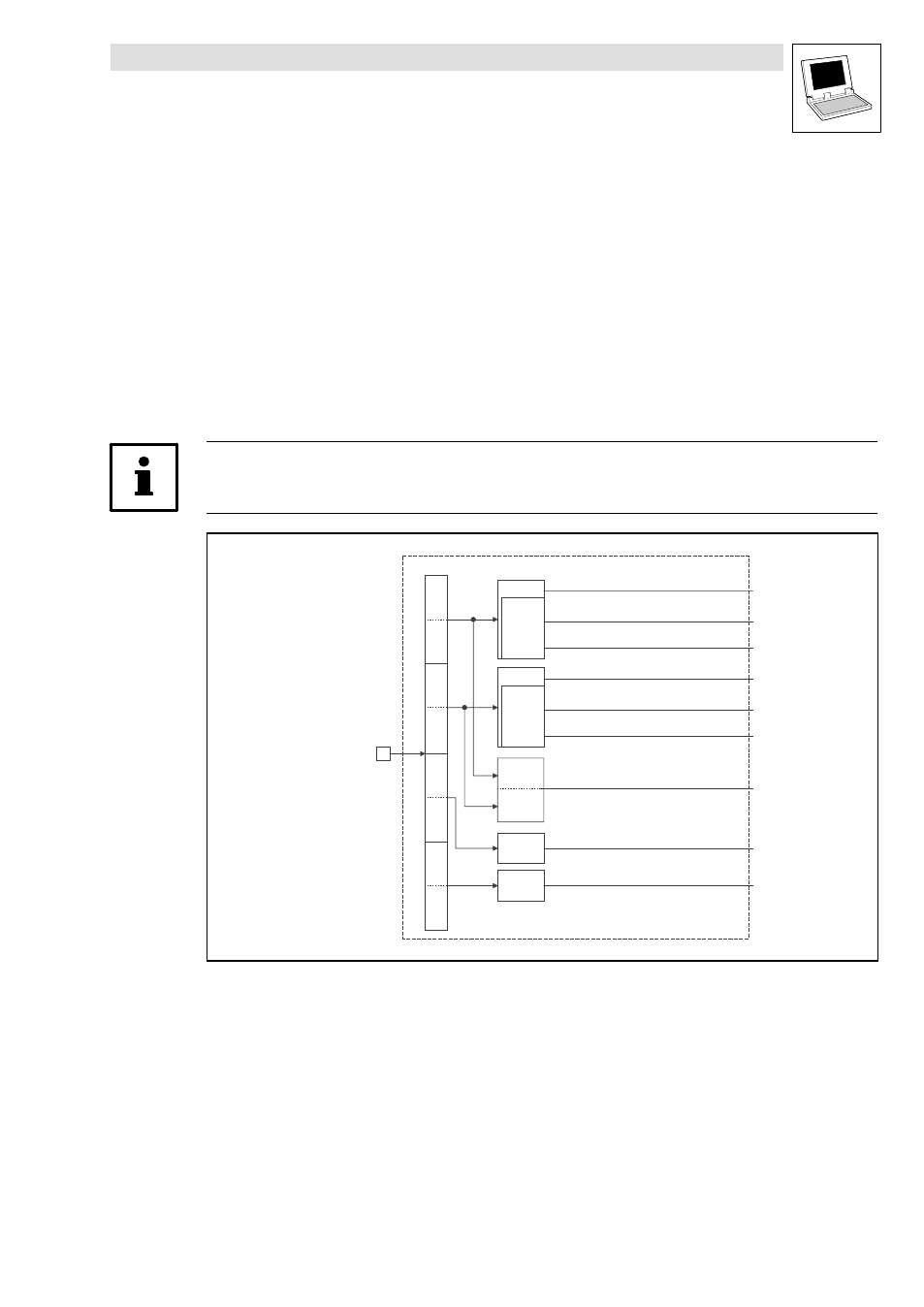

Fig. 2−3
Inputs_AIF2
