Chapter 29: 802.1x Network Access Control
308 Section II: Web Browser Interface
Configuring 802.1x Network Access Control
To configure 802.1x network access control, perform the following
procedure:
1. From the Advanced Config menu, select 802.1x.
The 802.1x Configuration page opens, as shown in Figure 95.

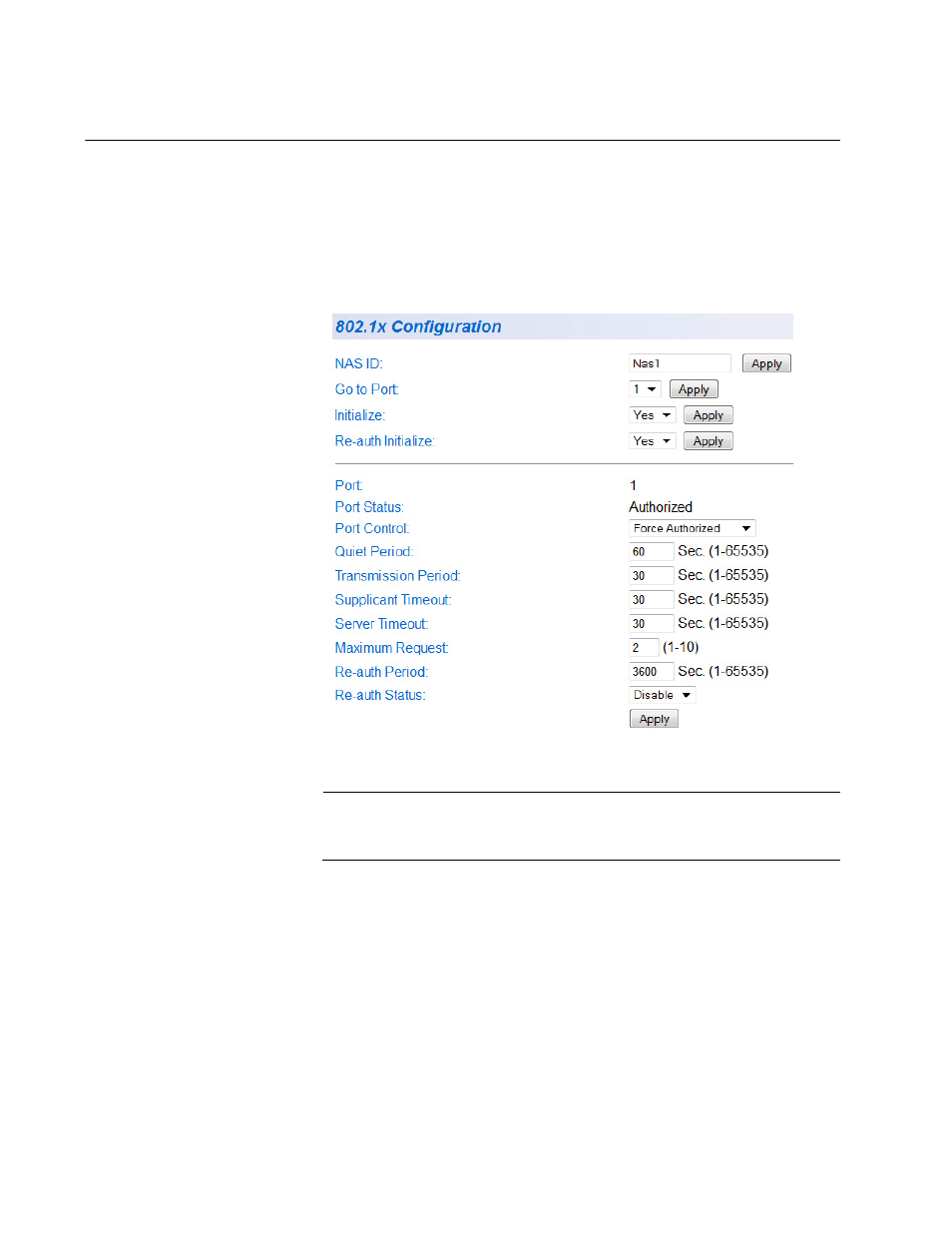

Figure 95. 802.1x Configuration Page
Note
The Initialize and Re-auth Initialize parameters are described in
Steps 5 and 6, respectively.
2. To select a port, do the following:
a. Click on the Go To Port field and select the port you want to
configure from the list. You can configure only one port at a time.
b. Click Apply.
The current settings for the selected port are displayed.
3. Configure the following parameters as needed:
