AT-S81 Management Software User’s Guide
Section II: Using the Web Browser Interface 219

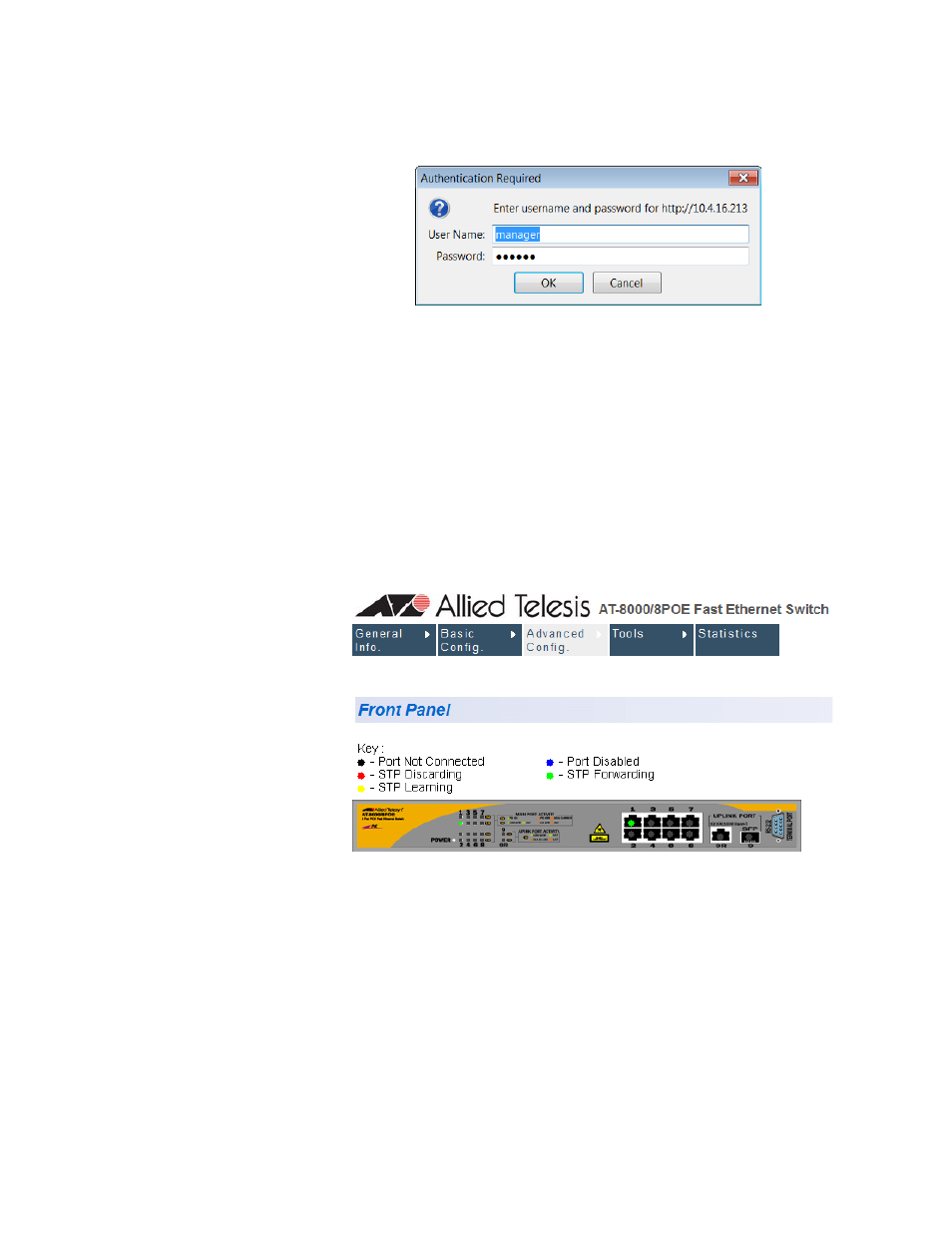

The AT-S81 management software displays the login dialog box,
shown in Figure 61.
Figure 61. AT-S81 Login Dialog Box
3. Enter the AT-S81 management login user name and password. The
default user name is “manager” and the default password is “friend.”
The login name and password are case-sensitive.
To change the user name and password, refer to “Configuring System
Administration Information” on page 227.
The AT-S81 management software displays the home page. The
window contains an image of the front of the switch. Ports that have a
link to an end node are green. Ports without a link are grey. An
example of the home page is shown in Figure 62.
Figure 62. Home Page for the AT-8000/8POE
