Section I: Using the Menus Interface 159

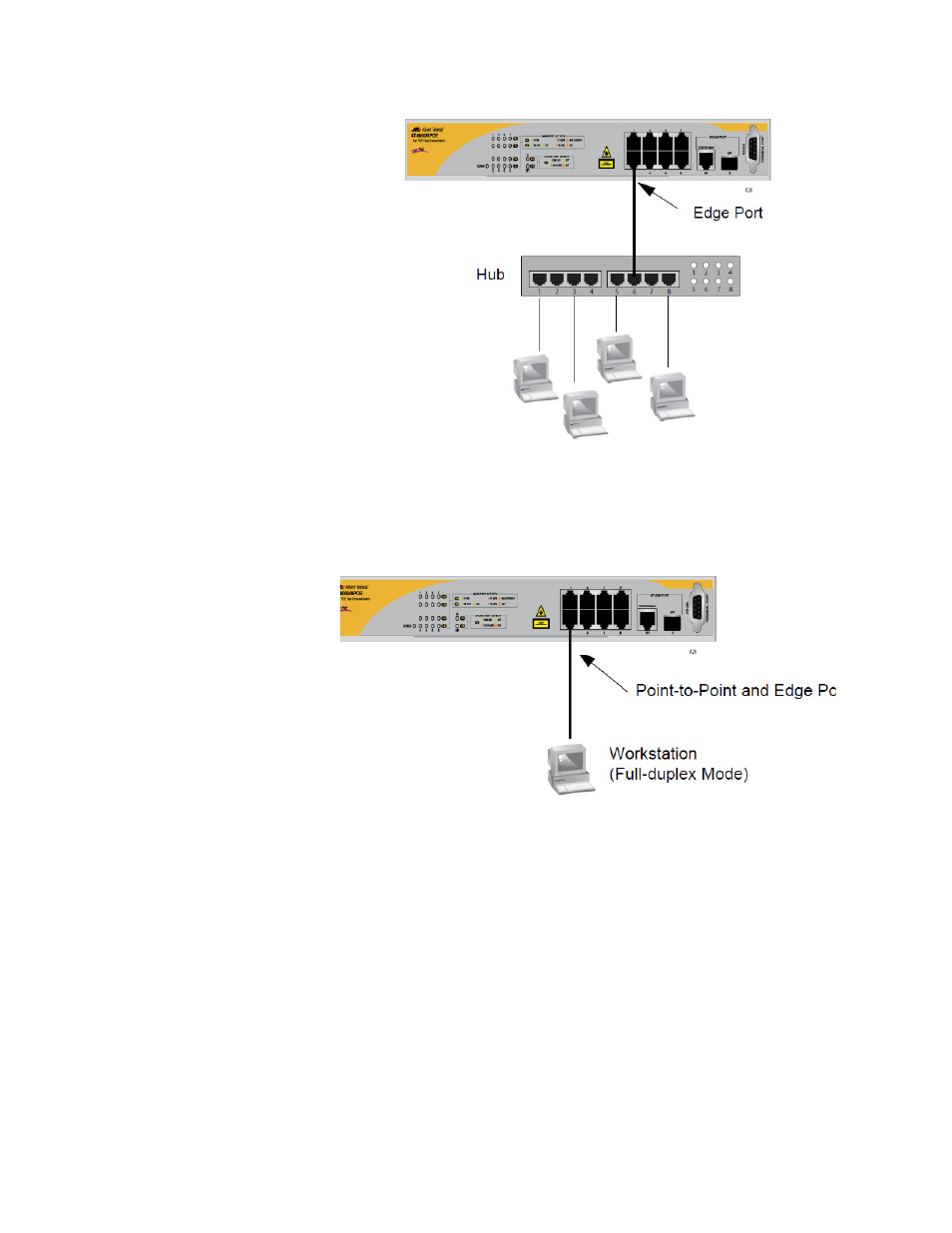

Figure 40. Edge Port
A port can be both a point-to-point and an edge port at the same time.
Figure 41 illustrates a port functioning as both a point-to-point and edge
port. You must manually configure the edge port status.
Figure 41. Point-to-Point and Edge Port
Determining whether a bridge port is point-to-point, edge, or both, can be a
bit confusing. For that reason, do not change the default values for this
RSTP feature unless you have a good grasp of the concept. In most
cases, the default values work well.
Mixed STP and
RSTP Networks
RSTP IEEE 802.1w is fully compliant with STP IEEE 802.1d. Your network
can consist of bridges running both protocols. STP and RSTP in the same
network can operate together to create a single spanning tree domain.
The switch monitors the traffic on each port for BPDU packets. When you
set the switch to RSTP mode, all the ports operate in that mode and reject
STP BPDU packets. When you set the switch to operate in STP-
