AT-S81 Management Software User’s Guide
Section I: Using the Menus Interface 119
Tagged VLAN
Example

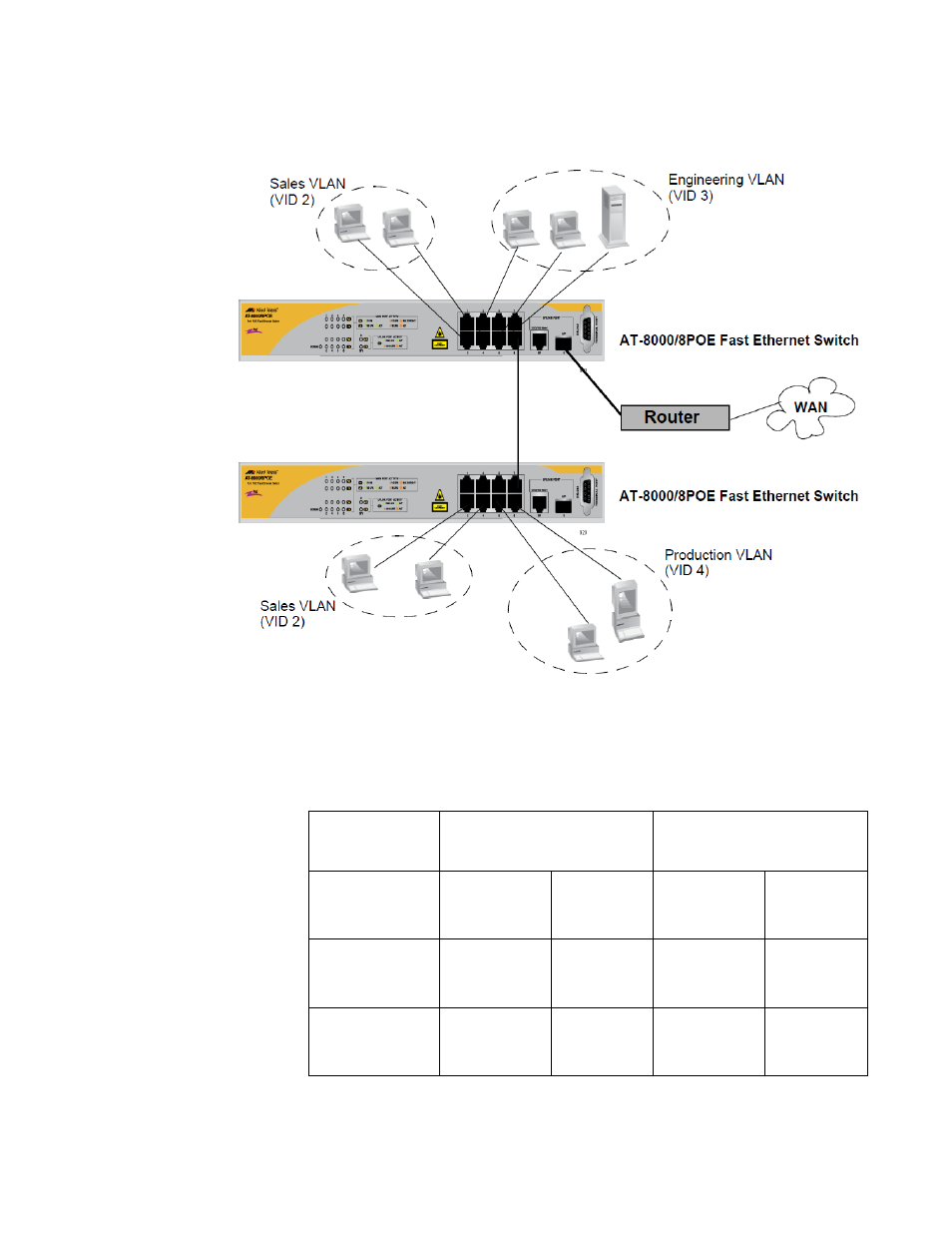

Figure 28 illustrates how tagged and untagged ports can be used to
interconnect IEEE 802.1Q-based products.
Figure 28. Example of a Tagged VLAN
The port assignments for the VLANs are as follows:
Table 4. Ports for Tagged VLAN Example
Sales VLAN (VID 2)
Engineering VLAN
(VID 3)
Untagged
Port
Members Tagged
Port
Members Untagged
Port
Members Tagged Port
Members
AT-8000/8POE
Fast Ethernet
Switch (top) 1, 2
(PVID 2) 6, 9 3, 5, & 7
(PVID 3) 6, 9
AT-8000/8POE
Fast Ethernet
Switch (bottom) 2, 4
(PVID 2) 5 3, 6,& 8
(PVID 3) 5
