Allied Telesis AT 8000/8POE - Manual (Page 252)

Chapter 20: Port Configuration
252 Section II: Web Browser Interface
Displaying Port Statistics
To display port statistics, perform the following procedure:
1. From the Main Menu, select Statistics.
The Statistics page opens, as shown in Figure 75.

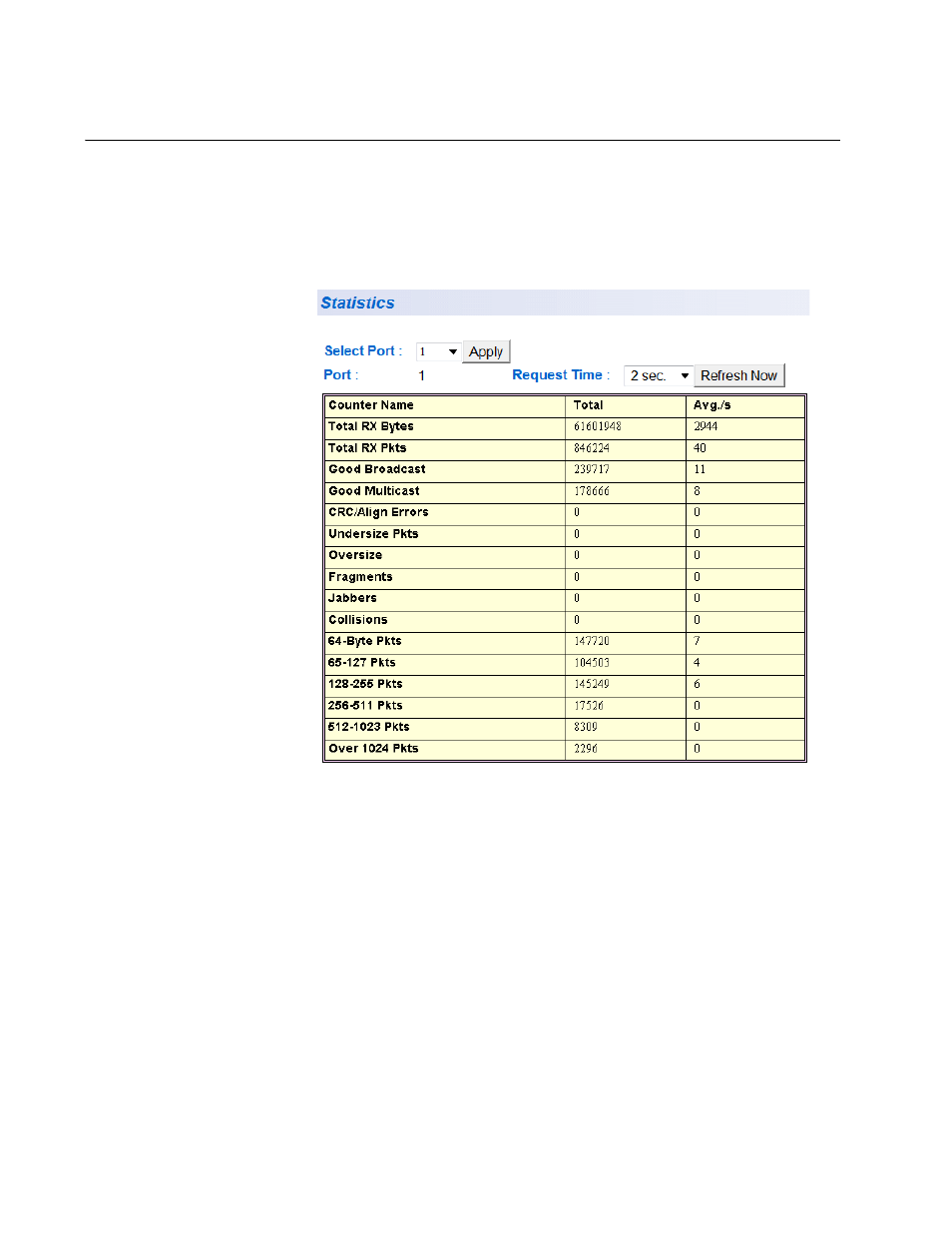

Figure 75. Statistics Page
2. To view statistics for a port, select a port from the Select Port list and
click Apply.
The statistics are displayed in a table that contains the following items
of information:
Total RX Bytes
Number of bytes received on the port.
Total RX Pkts
Number of packets received on the port.
Good Broadcast
Number of valid broadcast packets received on the port.
