SwitchBlade x3106 Installation Guide
67
Power Supply Interfaces (Opto-couplers)
The chassis has two power supply interfaces, also referred to as opto-
couplers, in the lower right corner of the rear panel. The active master
controller card uses the interfaces to obtain status information from the
power supplies. The interfaces are shown in Figure 32. The controller card
uses the top interface to communicate with the power supplies in slots A
and C, and the bottom interface to communicate with the power supplies in
slots B and D.

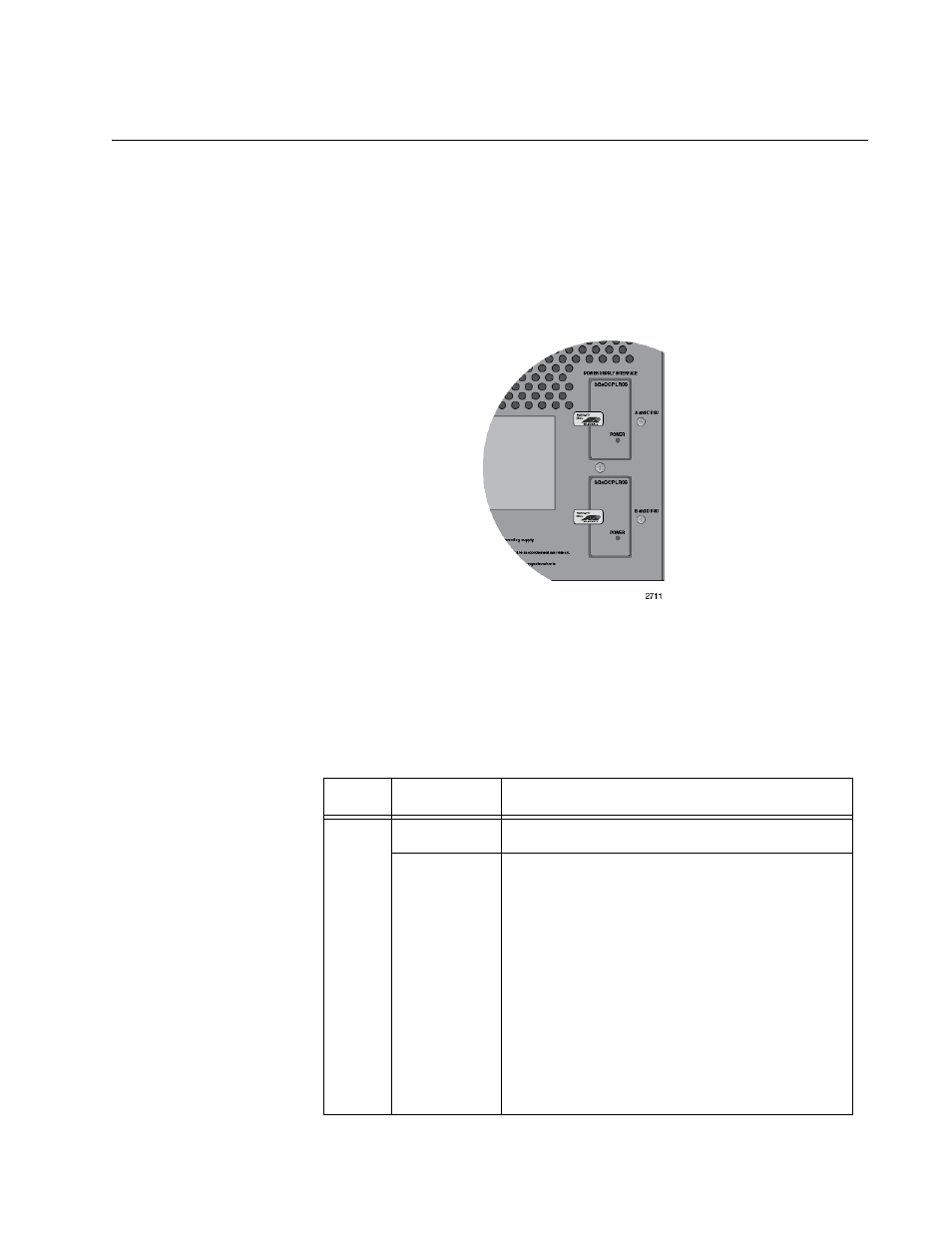

Figure 32. Power Supply Interfaces (Opto-couplers)
The power supply interfaces are not hot swappable and can only be
serviced by an authorized service technician.
LED
Each interface has one LED, labeled Power, described in Table 21.
Table 21. Power Supply Interface LED
LED State Description
Power
Solid Green The interface is operating normally.
Off Here are the possible conditions of this LED
state:
 The corresponding power supply
slots of the interface are empty.
 The power supplies in the power
supply slots are powered off or have
failed.
 The power supplies in the power
supply slots are powered on and
functioning normally, but the power
supply interface has failed.
