Allied Telesis SwitchBlade x3106 User Manual
Page 184
Chapter 7: Powering On the Chassis
184

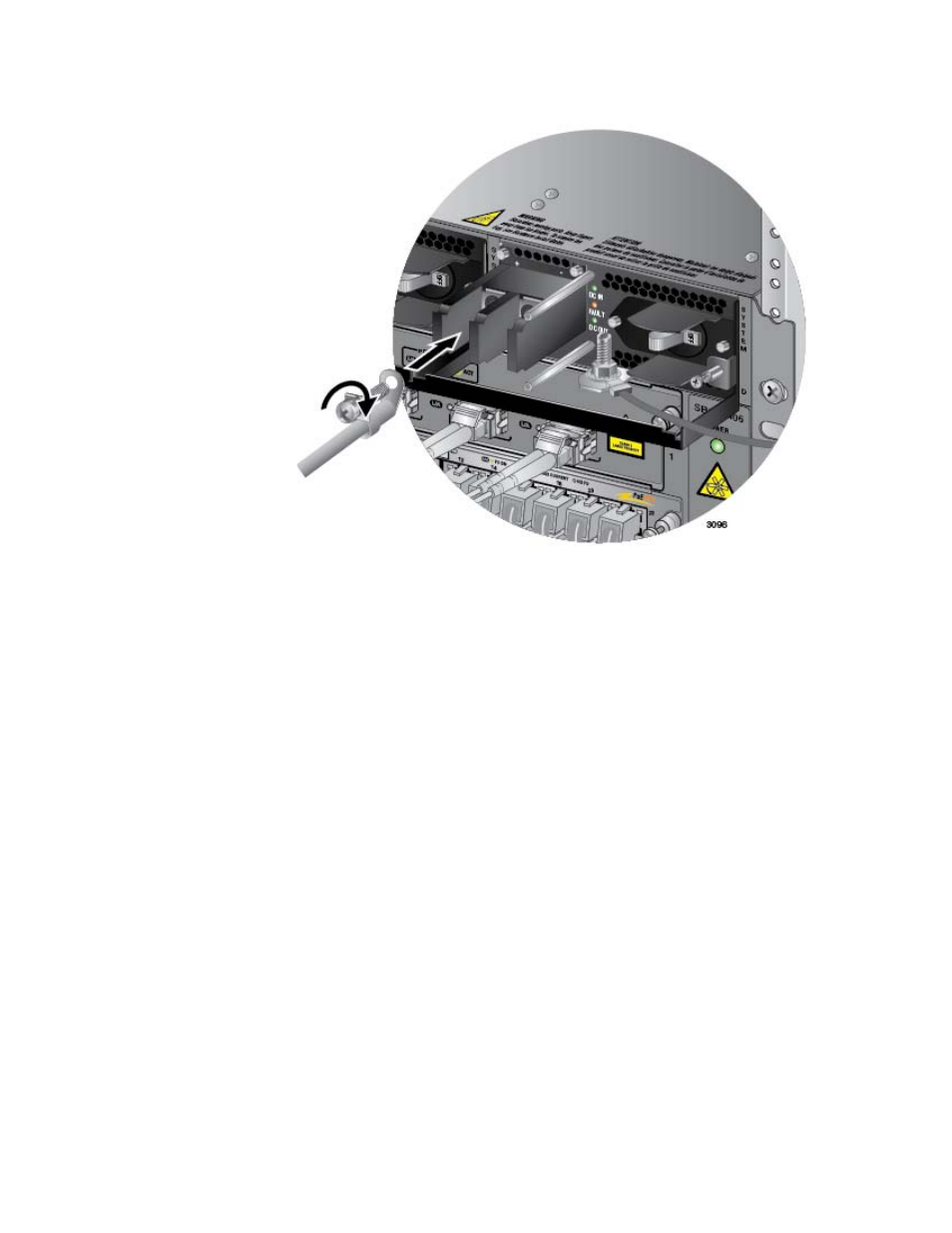

Figure 139. Connecting the Positive (+) Power Wire with a Right Angle
Terminal
7. With a #3 Phillips-head screwdriver, connect the negative (-) power
lead wire to the negative terminal on the power supply, with the
remaining terminal screw removed in step 5. The negative terminal is
on the right. Refer to Figure 140 on page 185.
Allied Telesis recommends tightening the screw to 30 to 40 inch-lbs.
