Allied Telesis SwitchBlade x3106 User Manual
Page 185
SwitchBlade x3106 Installation Guide
185

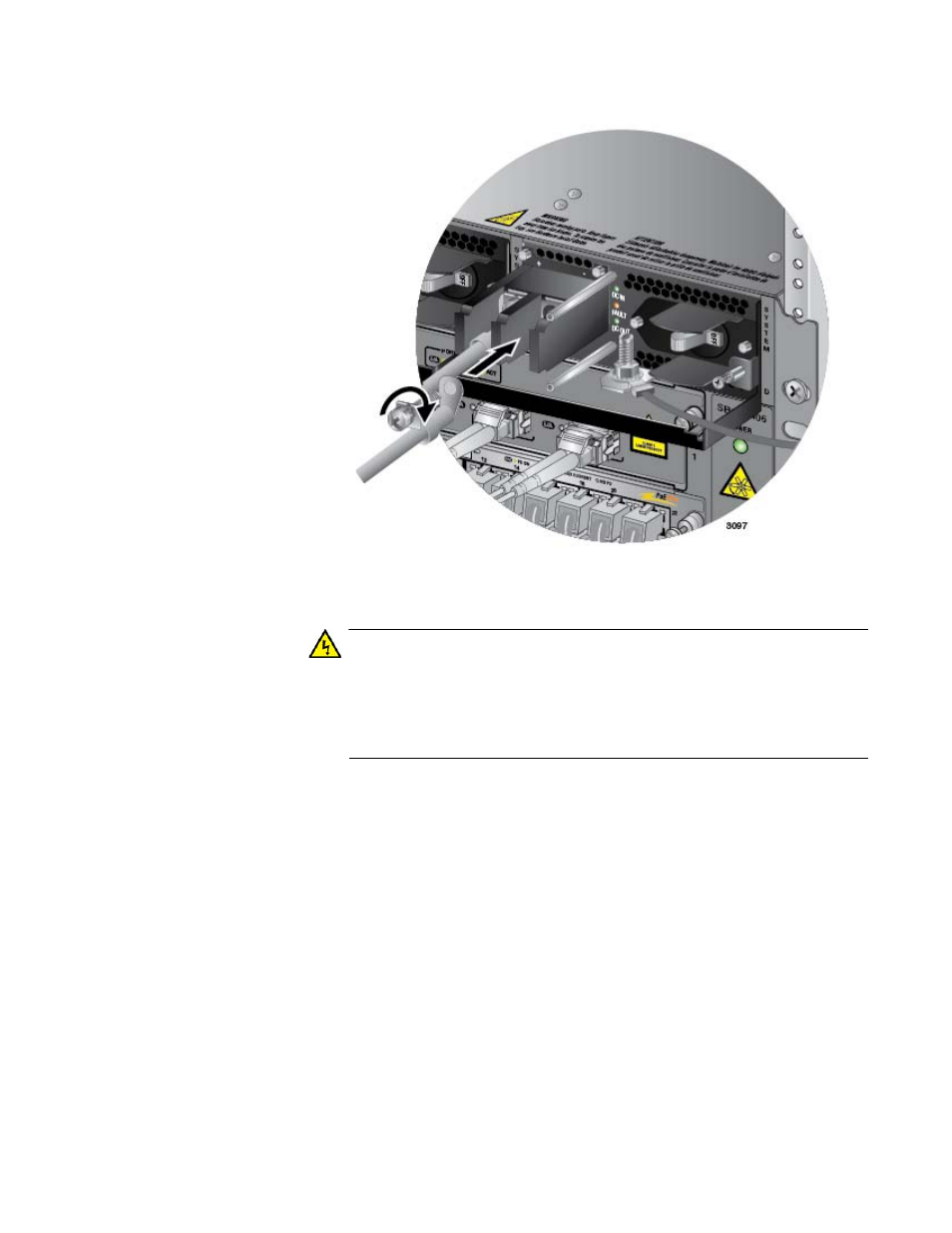

Figure 140. Connecting the Negative (-) Power Wire with a Right Angle
Terminal
Warning
Check to see if there are any exposed copper strands coming from
the installed wires. When this installation is done correctly there
should be no exposed copper wire strands extending from the
terminal block. Any exposed wiring can conduct harmful levels of
electricity to persons touching the wires. E12
8. With a #2 Phillips-head screwdriver, tighten the handle locking screw
to secure the power supply to the chassis. See Figure 141 on page
186.
