Allied Telesis SwitchBlade x3106 User Manual
Page 248
Chapter 10: Replacing Modules
248

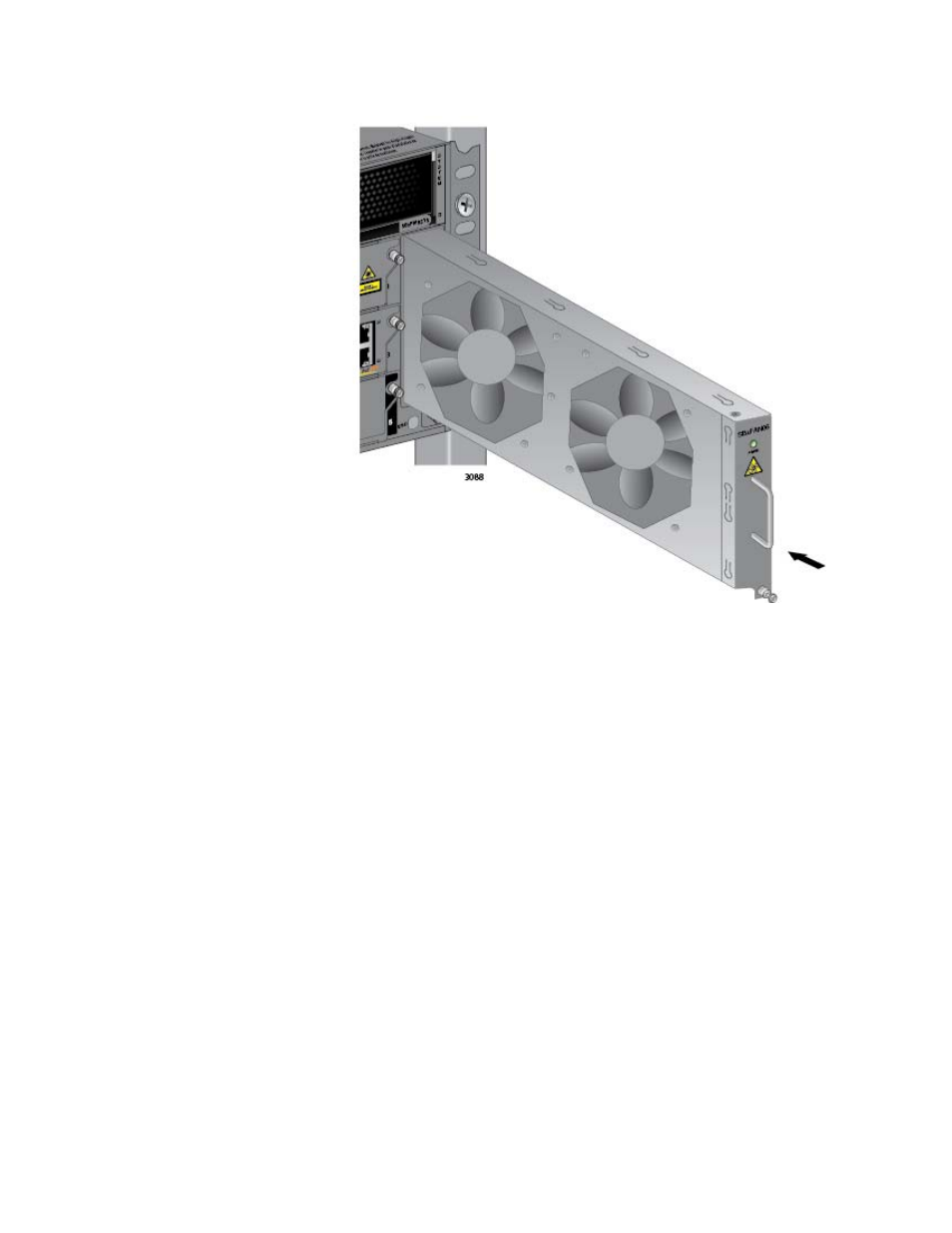

Figure 172. Installing a New AT-SBxFAN06 Fan Module
2. When you feel the fan module make contact with the connector on the
backplane, gently push on the top and bottom of the faceplate to seat
the module on the connector. Refer to Figure 173 on page 249.
