Figure 159: removing the negative lead wire – Allied Telesis SwitchBlade x3106 User Manual
Page 229
SwitchBlade x3106 Installation Guide
229

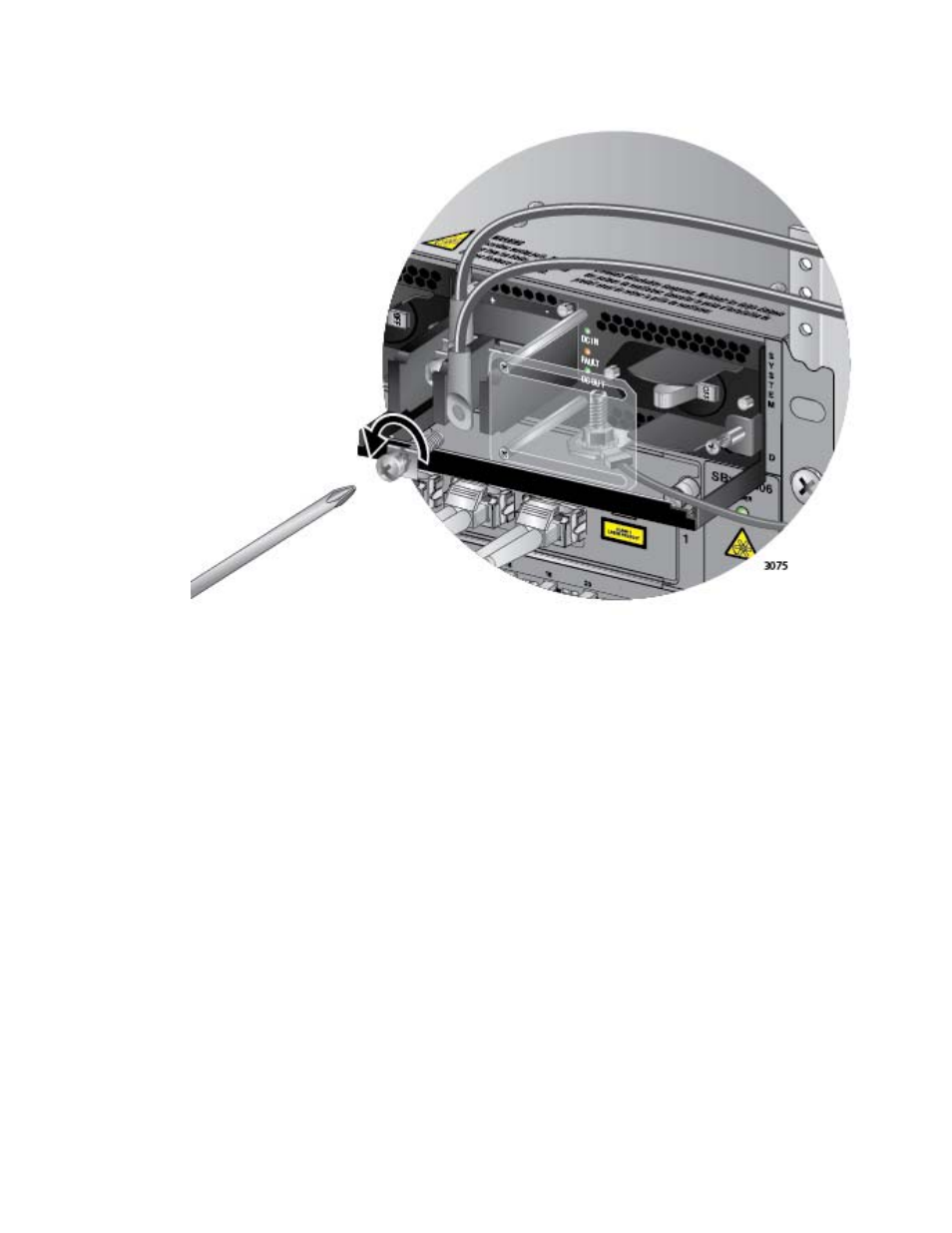

Figure 159. Removing the Negative Lead Wire
6. Use a #3 screwdriver to remove the positive (+) lead wire from the
terminal block. Refer to Figure 160 on page 230.
