In figure 106 – Allied Telesis SwitchBlade x3106 User Manual
Page 153
SwitchBlade x3106 Installation Guide
153

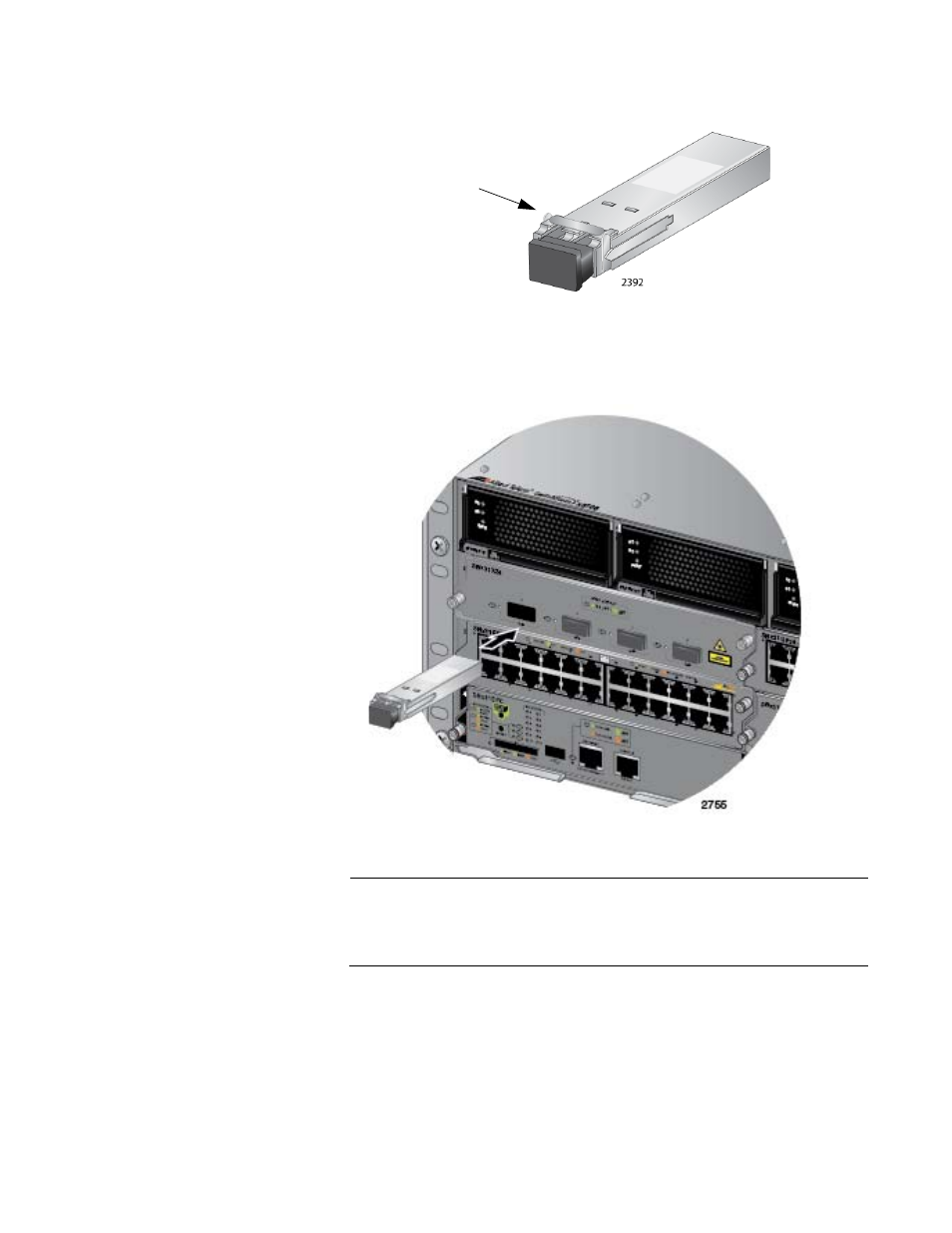

Figure 106. Handle on the XFP Transceiver
4. Slide the transceiver into the slot until it clicks into place, as shown in
Figure 107. Installing an XFP Transceiver in the AT-SBx31XZ4 Line Card
Note
If you are ready to attach the fiber optic cable to the transceiver,
continue with the next step. Otherwise, repeat steps 1 to 4 to install
the remaining XFP transceivers.
5. Remove the protective cover from the fiber optic port on the XFP
transceiver, as shown in Figure 108 on page 154.
Handle
