4. Check the model name, shown in Figure 60, to verify the module.
If you have the AT-SBxPWRSYS1 AC System Power Supply, do not
continue with this procedure. Instead, perform “Installing the AT-
SBxPWRSYS1 AC System Power Supply” on page 97.

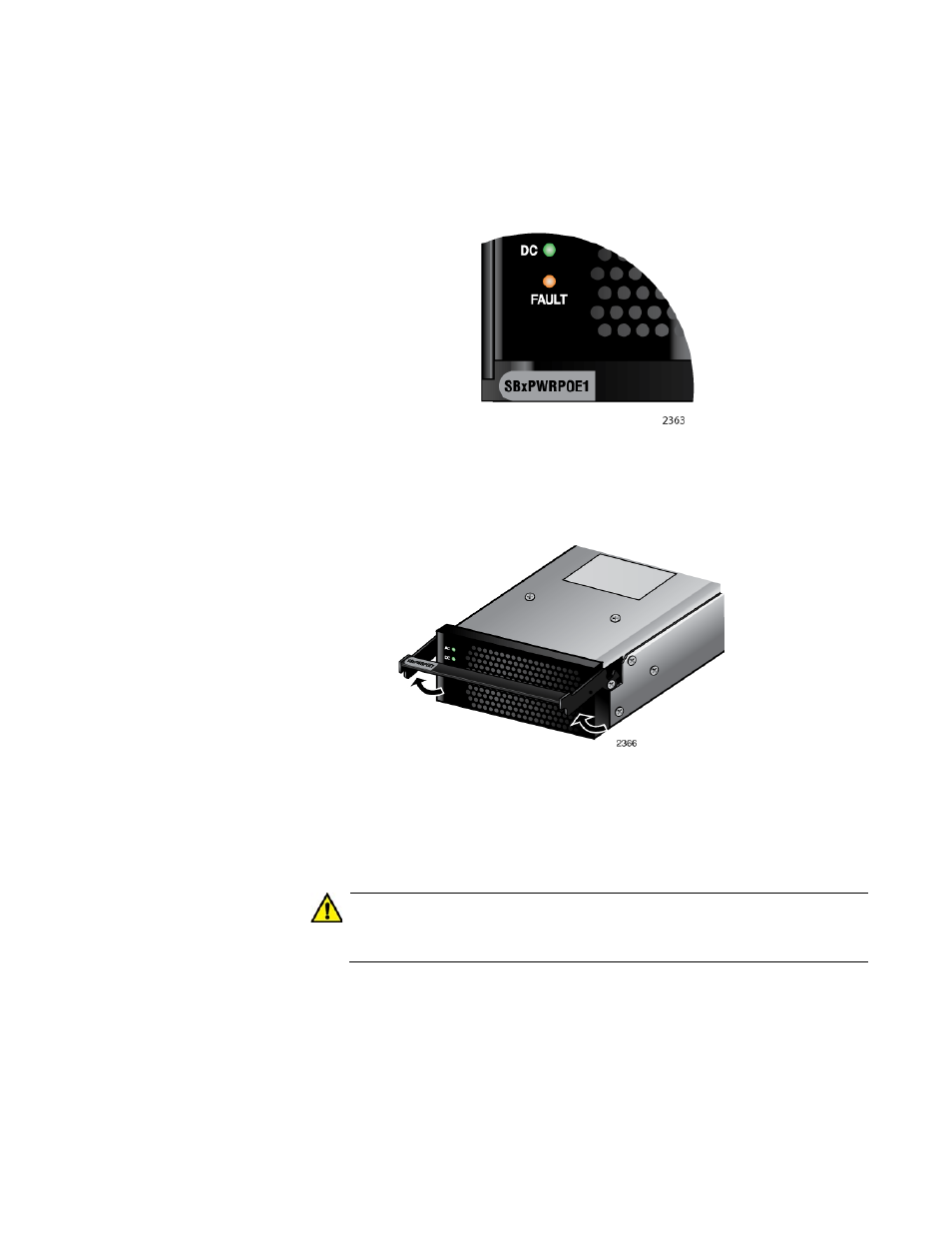

Figure 60. Verifying the AT-SBxPWRPOE1 AC Power Supply
5. Raise the locking handle on the AT-SBxPWRPOE1 AC Power Supply,
as shown Figure 61.
Figure 61. Raising the Handle on the AT-SBxPWRPOE1 AC Power
Supply
6. Align and insert the AT-SBxPWRPOE1 Module into slot A or B. Figure
62 on page 106 shows the power supply being installed in slot A.
Caution
The AT-SBxPWRPOE1 AC Power Supply will not work in slot C or
D.
