Powering On the AT-SBxPWRSYS1 AC Power Supply
The procedure in this section explains how to power on the AT-
SBxPWRSYS1 AC Power Supply. For installation instructions, refer to
“Installing the AT-SBxPWRSYS1 AC System Power Supply” on page 97.
Note
If the chassis has both AT-SBxPWRSYS1 and AT-SBxPWRPOE1
Power Supplies, you may power on the power supplies in any order
or simultaneously.
To power on the chassis, perform the following procedure:
1. Identify AC sockets C and D in the recessed panel on the back panel
of the chassis, shown in Figure 110. The sockets are for the AT-
SBxPWRSYS1 System Power Supplies in slots C and D on the front
panel of the chassis.

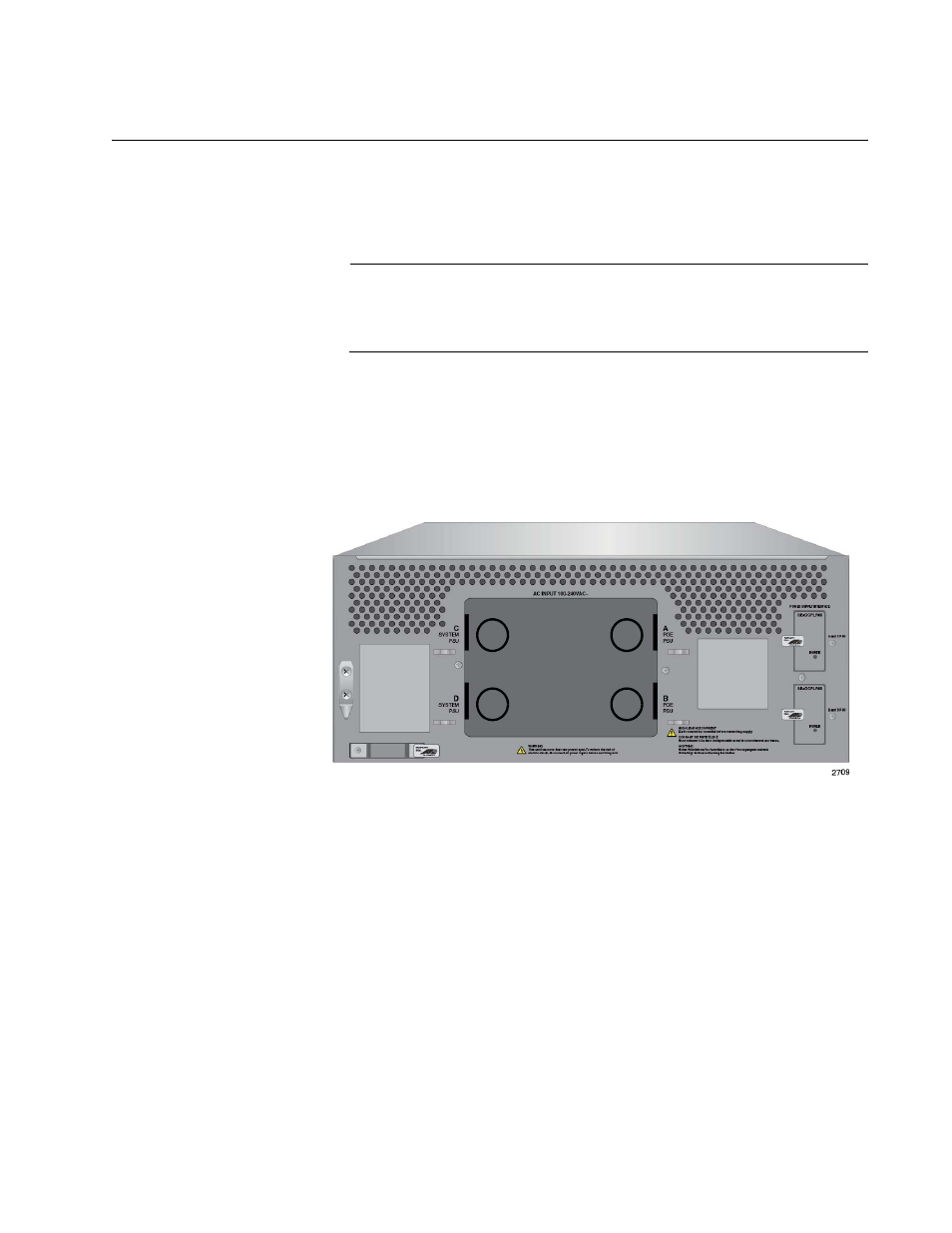

Figure 110. AC Sockets on the AT-SBx3106 Chassis Rear Panel
2. Plug the AC power cord that comes with the power supply into a plug
whose corresponding slot on the front panel has a system power
supply.
If there are two system power supplies, you may power on either
supply first. The illustration in Figure 111 on page 162 shows the AC
power cord being connected to connector D for the power supply in
slot D on the front panel.
A
D
C
B
