Allied Telesis SwitchBlade x3106 User Manual
Page 176
Chapter 7: Powering On the Chassis
176

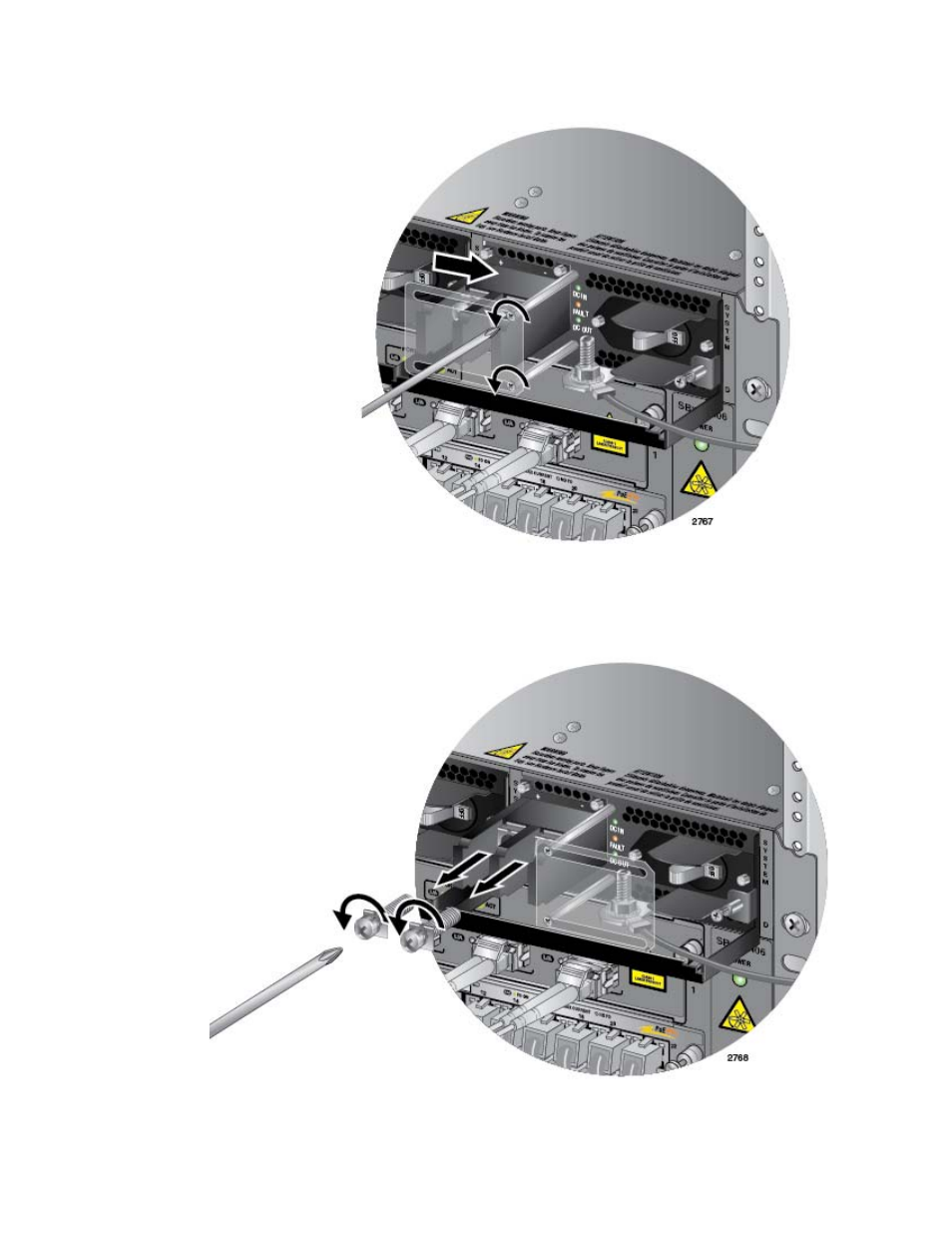

Figure 129. Opening the Plastic Cover
5. Use a #3 Phillips-head screwdriver to remove the two screws from the
positive and negative terminals, as shown in Figure 130.
Figure 130. Removing the Terminal Screws
