Figure 96: attaching a fiber optic cable – Allied Telesis SwitchBlade x3106 User Manual
Page 143
SwitchBlade x3106 Installation Guide
143
6. Connect the fiber optic cables to the port on the transceiver, as shown
in Figure 96. The connectors should snap into the ports. If you are
connecting only one cable to a CSFP transceiver, you may connect it
to either port.

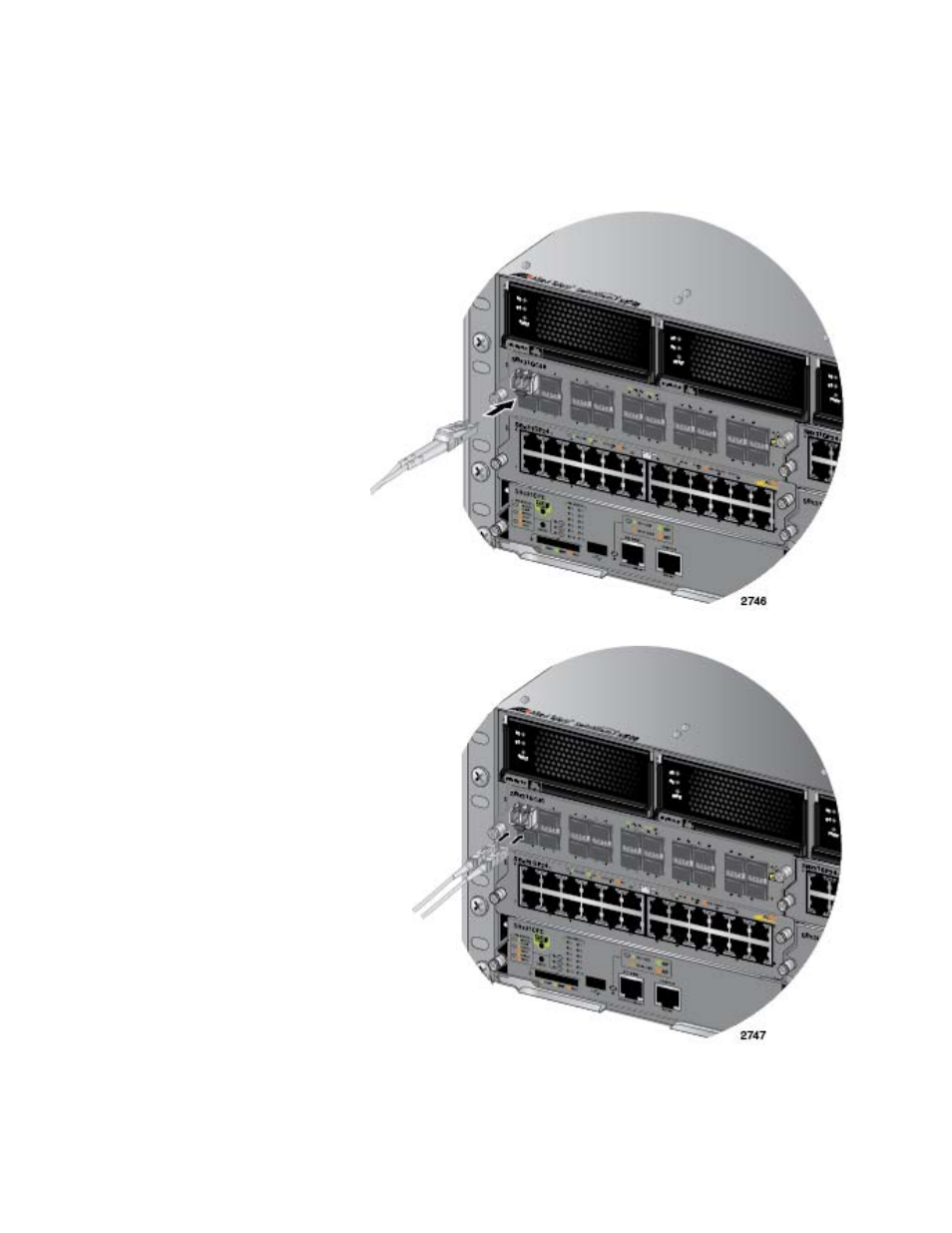

Figure 96. Attaching a Fiber Optic Cable
SFP Transceiver
CSFP Transceiver
