Chapter 1: Overview
24

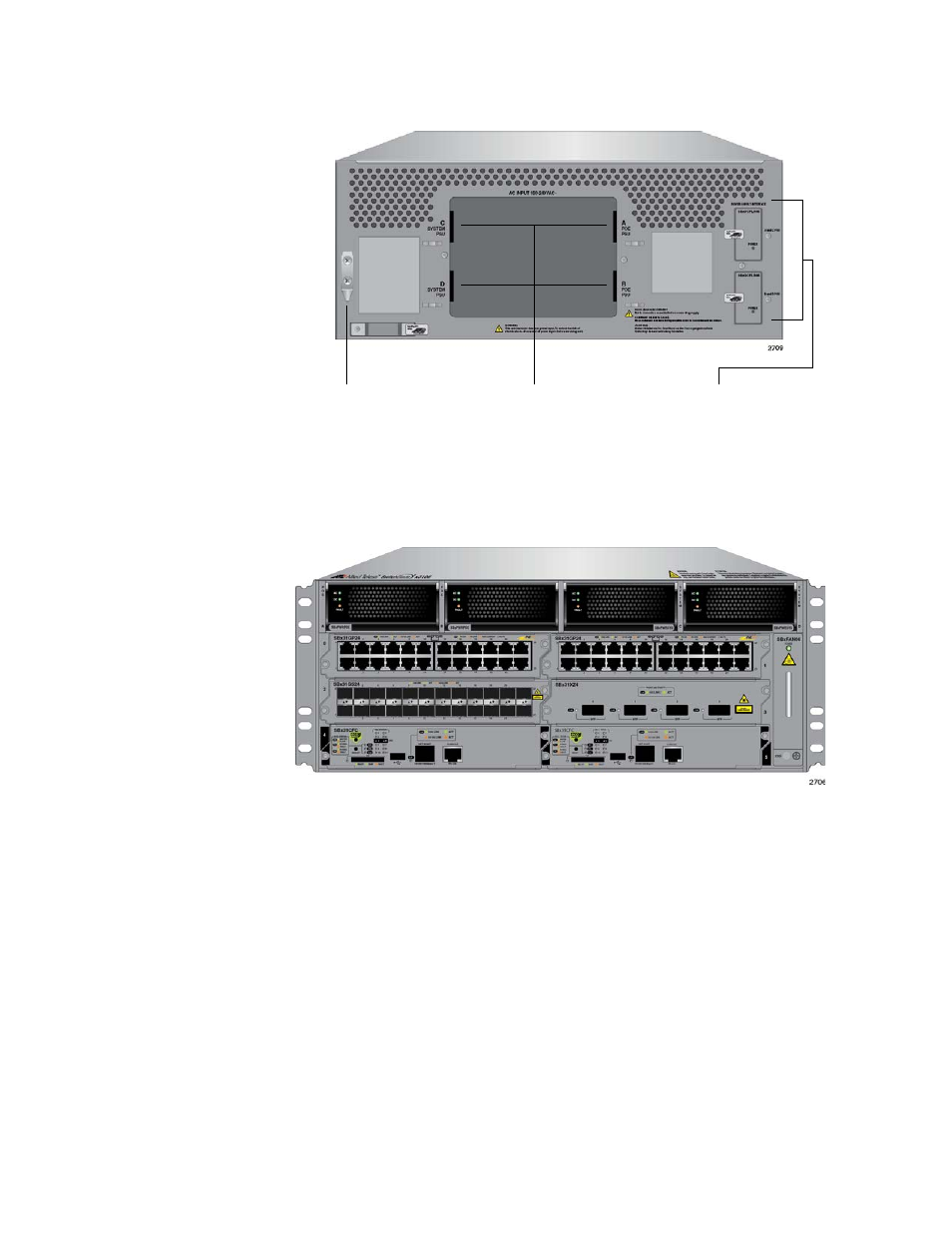

Figure 7. Rear View of the AT-SBx3106 Chassis
Figure 8 is an example of a chassis with Ethernet line and controller cards.
Figure 8. AT-SBx3106 Chassis with Line Cards, Control Cards, and Power
Supplies
Ethernet Line
and Control
Cards Slots
The chassis has slots for four Ethernet line cards and two AT-SBx31CFC
Central Fabric Controller cards or five Ethernet line cards and one AT-
SBx31CFC Central Fabric Controller card. The slot definitions are
predefined and may not be changed. Figure 9 on page 25 identifies the
slots, which are numbered starting with 0.
Grounding
Lug
AC Power
Cord Sockets
Power Supply
Interfaces
(Opto-couplers)
