Allied Telesis SwitchBlade x3106 User Manual
Page 245
SwitchBlade x3106 Installation Guide
245

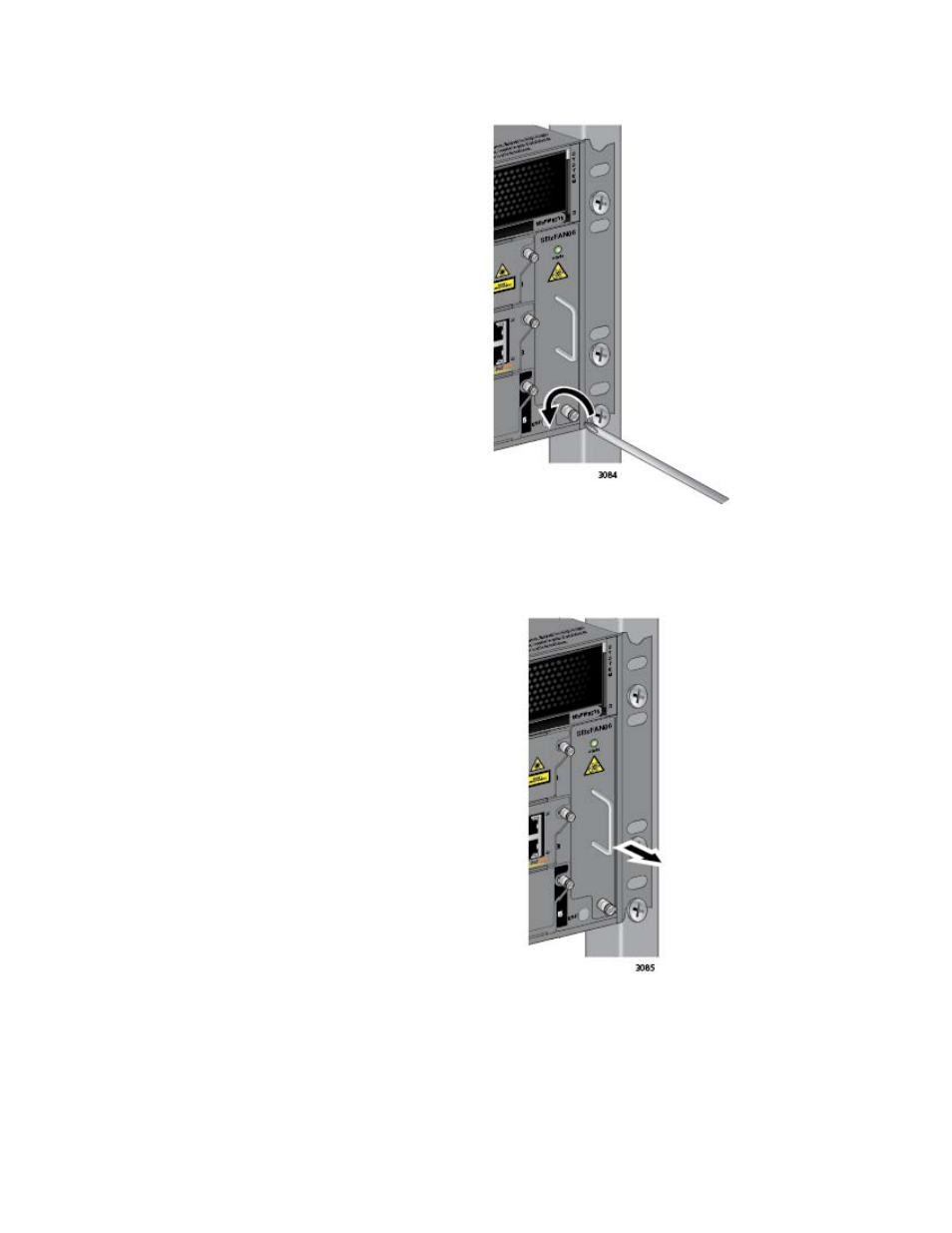

Figure 168. Loosening the Screw on the AT-SBxFAN06 Fan Module
6. Carefully pull on the handle to disconnect the fan module from the
connector on the backplane of the chassis. Refer to Figure 169.
Figure 169. Loosening the AT-SBxFAN06 Fan Module from the Backplane
Connector
