AT-SBxFAN06 Module
The AT-SBxFAN06 Module is the cooling unit for the chassis. It is a field-
replaceable assembly that is factory installed and shipped with the AT-
SBx3106 Chassis. See Figure 31.
The module is controlled by the AT-SBx31CFC Central Fabric Controller
card. The fan speeds are automatically adjusted according to the internal
operating temperature of the switch. The fans are at their lowest speed
when the ambient temperature coming into the fan is approximately 20° C.
The fan speeds increase to provide additional cooling as the ambient
temperature rises.

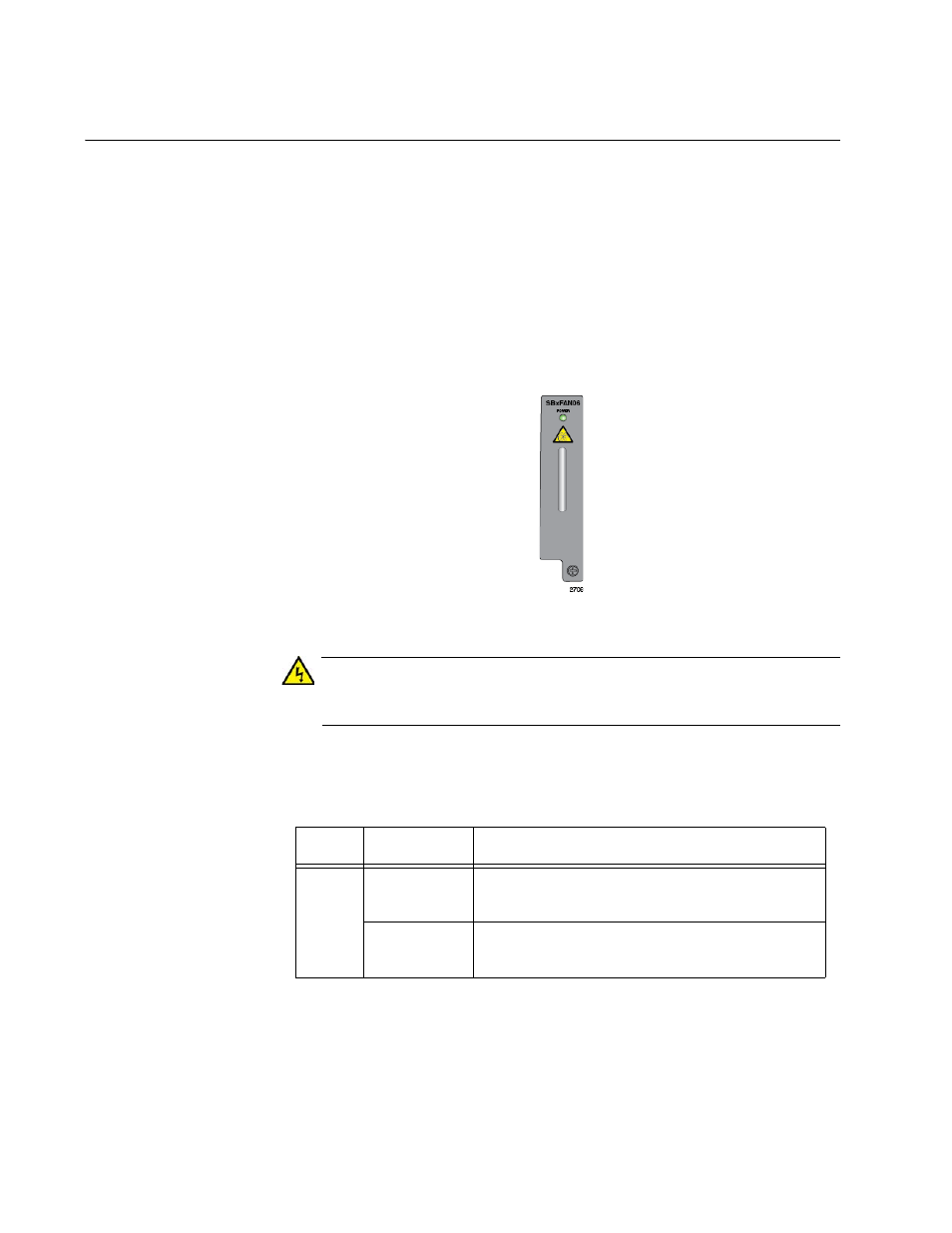

Figure 31. AT-SBxFAN06 Module
Warning
The AT-SBxFAN06 Fan Module has hazardous moving parts. Keep
fingers away from moving fan blades.
LED
The POWER LED on the AT-SBxFAN06 Module is described in Table 20.
Table 20. AT-SBxFAN06 Module LED
LED State Description
Power
Solid Green The AT-SBxFAN06 Module is receiving
power.
Off The AT-SBxFAN06 Module is not receiving
power or has failed.
