Chapter 6: Installing the Transceivers and Cabling the Ports
146
Note
Do not remove a dust plug from an SFP+ slot if you are not installing
a transceiver. A dust plug protects the line card from dust
contamination.
2. Orient the SFP+ transceiver with the handle on top, as shown in
Figure 98.

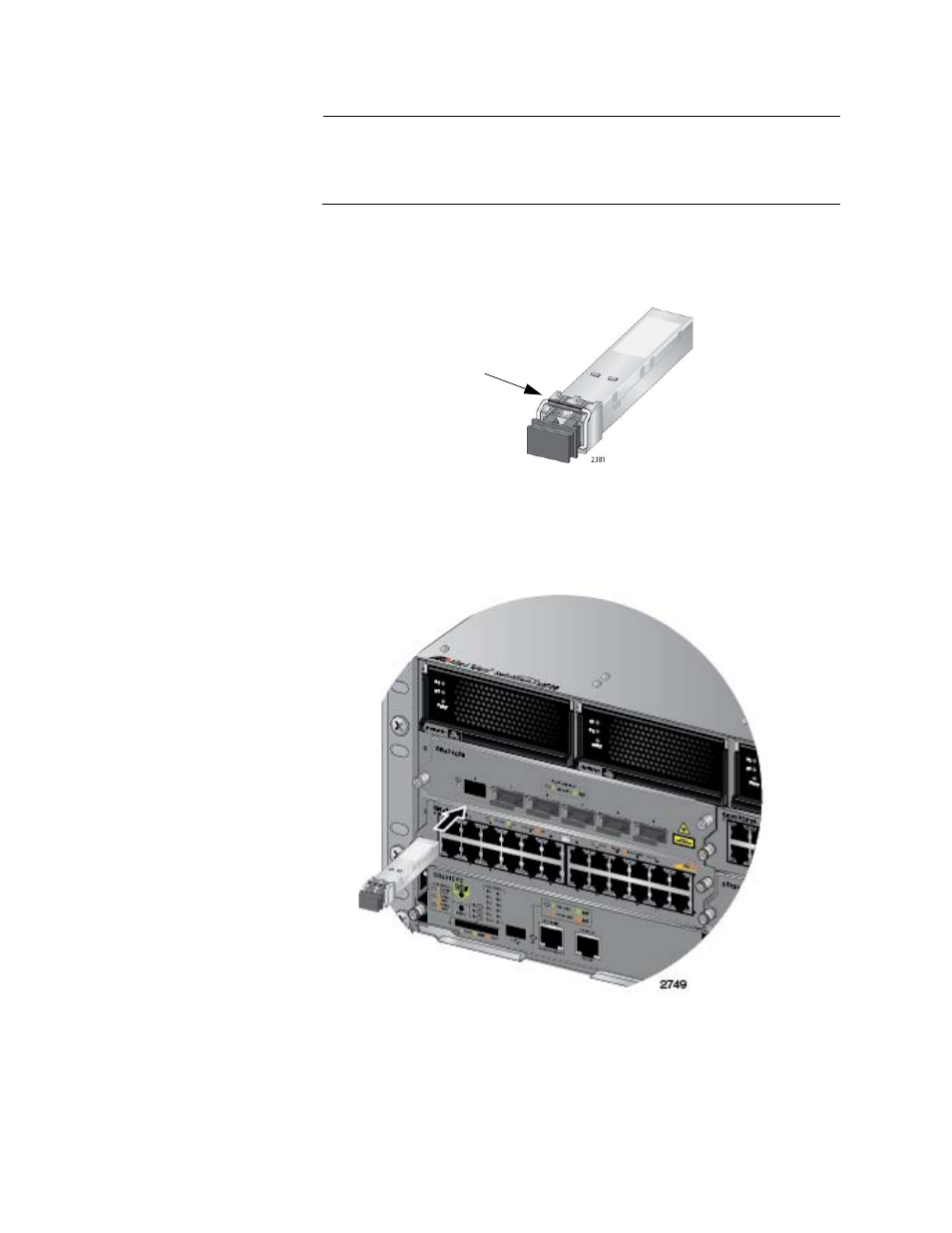

Figure 98. Handle on SFP+ Transceiver
3. Slide the transceiver into the slot until it clicks into place, as shown in
Figure 99.
Figure 99. Installing an SFP+ Transceiver in the AT-SBx31XS6 Line Card
Handle
