SwitchBlade x3106 Installation Guide
137
3. To install the transceiver in an SFP slot on the top row of the line card,
orient the transceiver with the handle on top, as shown in Figure 88. To
install it into a slot on the bottom row of the line card, orient it with the
handle on the bottom.

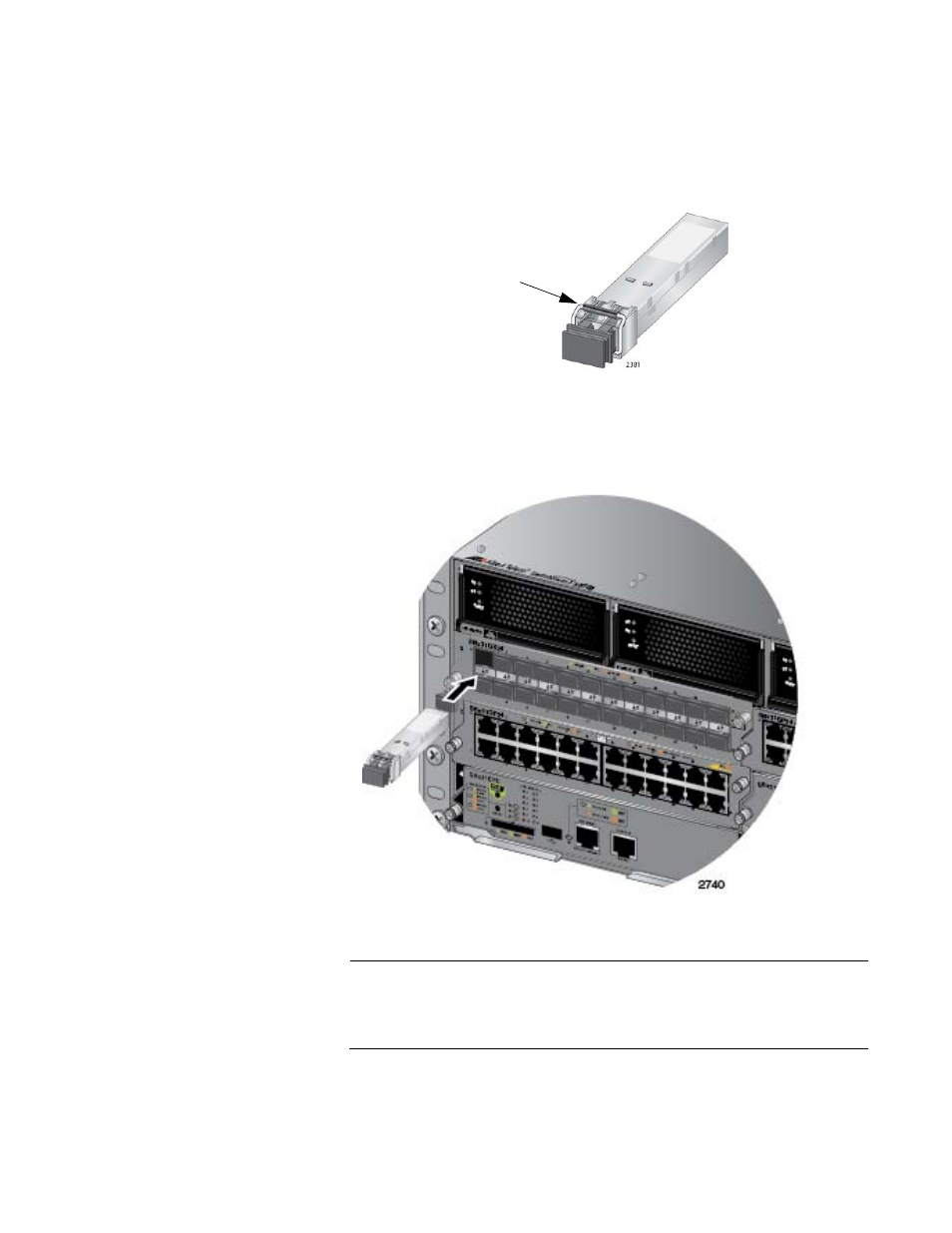

Figure 88. Handle on SFP Transceiver
4. Slide the transceiver into the slot until it clicks into place, as shown in
Figure 89.
Figure 89. Inserting an SFP Transceiver in the AT-SBx31GS24 Line Card
Note
If you are ready to attach the fiber optic cable to the transceiver,
continue with the next step. Otherwise, repeat steps 1 to 4 to install
the remaining SFP transceivers in the line cards.
Handle
